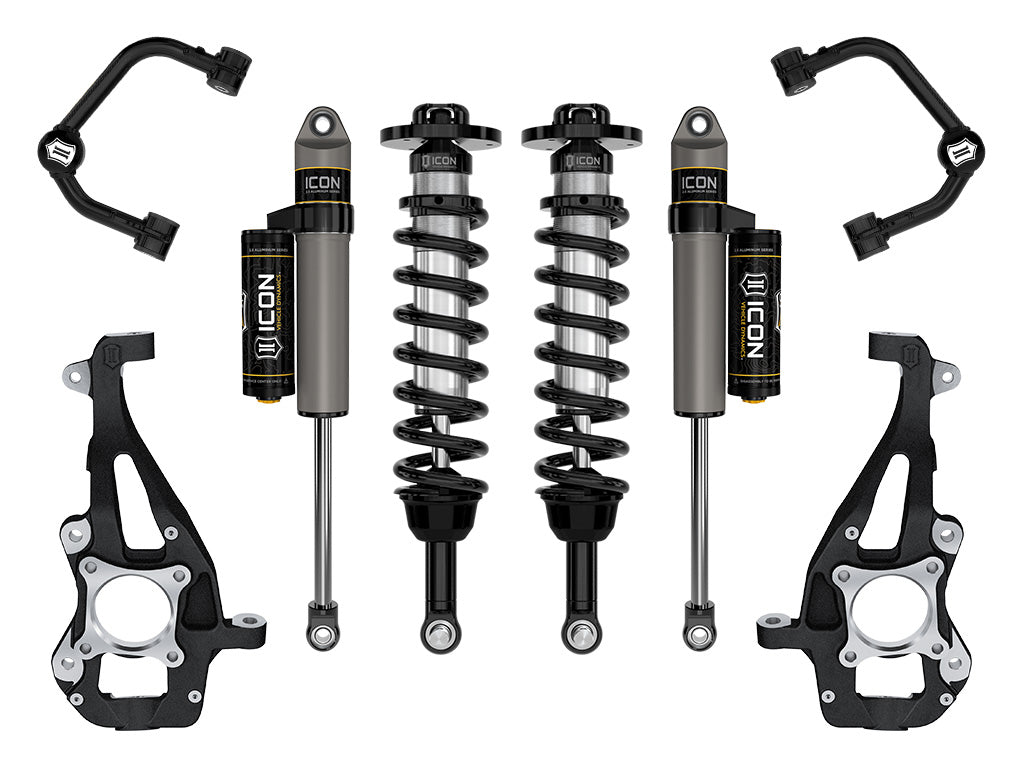

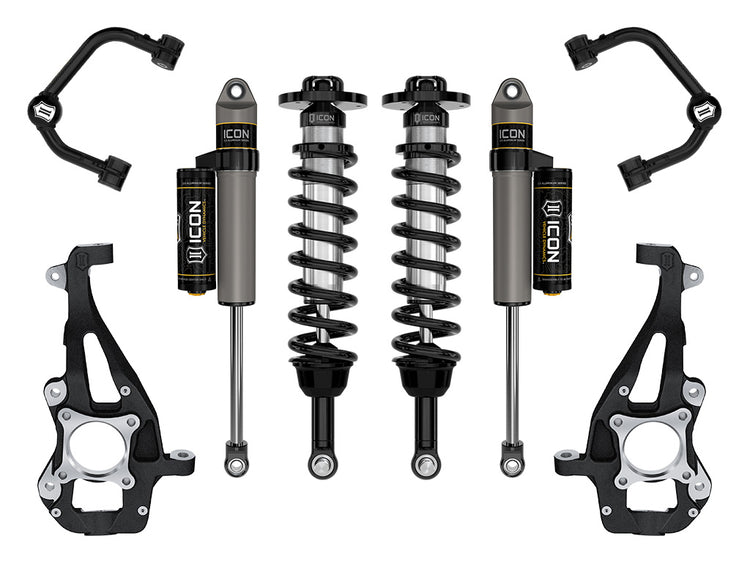

ICON 2021-2024 Ford F-150 4WD, 3.5-4.5" Lift, Stage 2 Suspension System, Tubular
SKU: K93142T
$4,388.20
This item is backordered and will ship upon availability.
RECOMMENDED ADD-ONS:
+ $75.16
Overview
ICON Vehicle Dynamics 2021-2024 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. To achieve this, these systems include high-strength CNC machined ductile iron steering knuckles that replicate the suspension geometry of the F-150 Tremor and are effectively a Tremor “conversion” for your F-150 4WD. This Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 3.5-4.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Their combination with the ICON steering knuckles also allows for a 20% increase in wheel travel compared to other ICON F-150 coilover kits. Tubular Delta Joint Pro upper control arms on the F-150 not only add strength and durability, but help retain factory alignment spec range, increasing caster over stock and allow for the extra lift height this system provides. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving and offer increased damping and head dissipation, balancing the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2024 F-150 4WD Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
- High strength ductile iron steering knuckles replicate F-150 Tremor suspension geometry
- Adjustable coilovers offer 3.5-4.5" of front lift height over stock
- Tubular Upper Control Arms with Delta Joint Pro ball joints for added strength, durability, and alignment spec range
- 20% increase in front wheel travel and improved ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior damping and vehicle control
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- FK rod end bearings for extended longevity and minimal deflection
- High strength alloy CNC machined lower bar pin
- 2.5 Aluminum Series piggyback reservoir rear shocks with 7/8" hardened chromed steel shafts
- 6061 Aircraft grade aluminum CNC machined components
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103425740 |
| Proxy Number | 93142 |
| Shipping Width | 19.00 in |
| Shipping Length | 29.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 187.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 34" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #129: Will Not Work With Factory Installed Electronically Controlled Suspension
- APPLICATION NOTE #152: ICON Delta Joint Pro Upper Control Arms Required
- TECH NOTE: Only compatible with 4-wheel drive (4WD) models
- TECH NOTE: Models equipped with PowerBoost hybrid engines will have front lift height range of 3.25-4.25" over stock
- TECH NOTE: Models equipped with Power-Stroke diesel engines will have front lift height range of 3-4" over stock
- TECH NOTE: Not compatible with F-150 Raptor
- TECH NOTE: Not compatible with models equipped with BlueCruise
- TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock on most models
