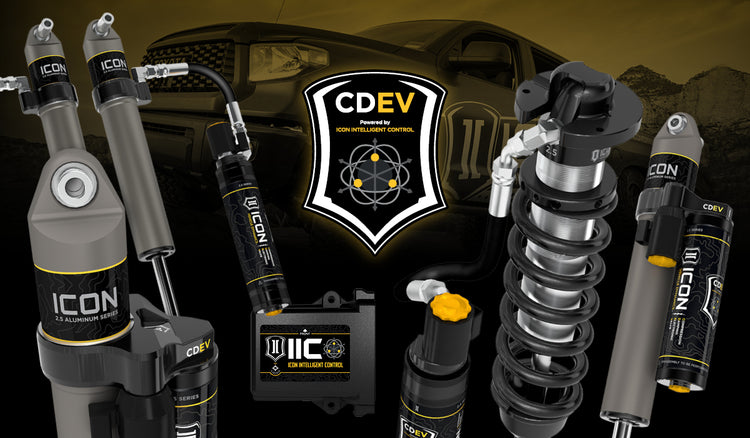

ICON CDEV
Compression Damping Electronic Valve
Suspension that reads the terrain and retunes itself — in under 40 milliseconds.
1. Stop Getting Out to Adjust Your Shocks
Traditional adjustable suspension asks you to pull over, climb out, turn a knob, and hope you guessed right about the terrain ahead. CDEV removes the guesswork — and the stopping.
ICON's Compression Damping Electronic Valve (CDEV), powered by ICON Intelligent Control (IIC), makes automatic, instantaneous adjustments to shock damping to deliver the right setting for the situation you're actually in. Not the one you set up for twenty miles ago.
2. Three Pieces, One System
CDEV isn't a single part. It's a control unit, a valve, and an interface — each doing a job the other two can't.

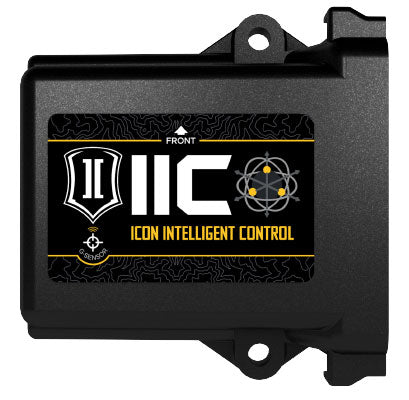

The brain
ICON Intelligent Control
Monitors, analyzes, decides
An onboard computer reading G-force and gyroscope data over 1,000 times per second, running ICON algorithms against your settings to predict terrain and wheel position.
The muscle
CDEV Valve
Meters oil flow electronically
An infinitely variable, electronically controlled valve that regulates how much compression damping the shock generates — and changes it in under 40 milliseconds.
The interface
ICON IIC App
Monitor, record, adjust
Bluetooth control from your iPhone. Set baseline firmness, tune Boost sensitivity, pick a Drive Mode, build your own presets, and record trip data.
App Setup & Support3. See It Work
4. Intelligent Control. Infinite Possibility.
ICON Intelligent Control is the computer that monitors, analyzes, and processes data in real time. Information from the onboard G-force sensor and gyroscope feeds calculations based on ICON algorithms and user-defined settings, predicting terrain and wheel position as you drive.
IIC collects information over 1,000 times per second, processes it, and delivers the resulting changes to CDEV in under 40 milliseconds. It also acts as the data driver connecting you to ICON's mobile app for monitoring and adjusting shock settings.
What It Reads
Onboard G-force sensor and gyroscope inputs, sampled over 1,000 times per second, interpreted against ICON's algorithms and the parameters you've set.
What It Does With It
Predicts terrain and wheel position, then commands the CDEV valves — the full loop from reading to damping change completes in under 40 milliseconds.

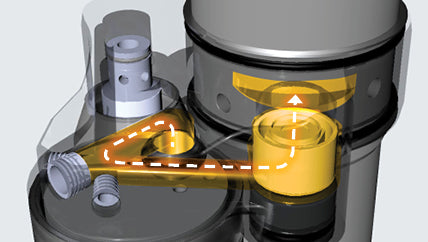

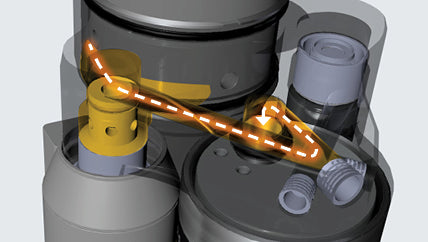

5. Compression Damping Control — Electrified
CDEV is an electronically controlled valve that meters the flow of oil to regulate the damping force the shock creates under compression. Because it's infinitely variable rather than stepped, it can make extremely precise adjustments as terrain changes.
- Infinitely variable: No fixed detents or preset steps — the valve meters oil flow continuously across its range.
- Reacts in under 40ms: Fast enough to respond to an obstacle rather than to the memory of one.
- Tailored per application: CDEV's hydraulic circuits are custom-built for each vehicle to create the highest resolution and dynamic range that platform allows.

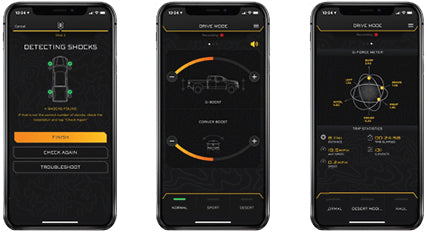

6. An ICONIC Interface
The IIC app brings the technology together with a straightforward interface to monitor, record, and adjust the system over Bluetooth. Change the shocks' baseline firmness, then tune how aggressively the system reacts — vertical G-Boost and lateral Corner Boost — in a few taps from your iOS device.

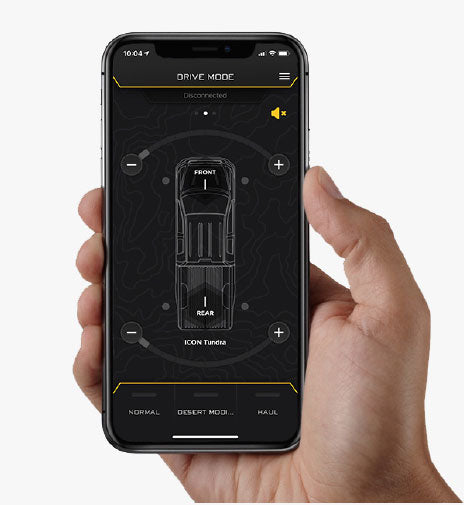

Drive Modes
Three pre-configured modes — Normal, Desert, and Haul — plus the ability to create an unlimited number of your own presets from custom settings.
Trip Data
Record time, speed, distance, and G-forces from a run and review it afterward as your own ICONIC Overview.
Getting set up?
Download the ICON Intelligent Control app, pair it to your control unit, calibrate the system, and build your presets. Step-by-step setup, FAQ, and troubleshooting are all in one place.
7. What Does All of This Mean?
The point of IIC and CDEV is that the shocks land on their ideal setting for the terrain and the driving style without you ever taking your eyes off the road.
On a washboard road at speed
You're blasting down a high-speed washboard road and a larger obstacle appears. The system increases shock damping automatically to help absorb the impact — no warning needed, no knob to reach.
Out the other side, the pace drops and the trail smooths out. Damping comes back down to deliver a compliant, comfortable ride. Hardcore off-road performance, smooth on-road comfort, or anywhere in between — the system covers the range without you managing it.
8. CDEV + IIC at a Glance
| Specification | CDEV + IIC |
|---|---|
| Valve type | Electronically controlled, infinitely variable compression valve |
| Valve response | Less than 40 milliseconds |
| Sensor inputs | Onboard G-force sensor and gyroscope |
| Data collection | Over 1,000 readings per second |
| Hydraulic circuits | Custom tailored per vehicle application |
| Driver adjustment | Baseline firmness, G-Boost (vertical) and Corner Boost (lateral) sensitivity |
| Drive Modes | Normal, Desert, Haul — plus unlimited custom presets |
| Data recording | Time, speed, distance, G-forces |
| App platform | iOS, connected over Bluetooth |
| In-cab controller | Not required |
9. Quick Access
App Setup & Support
Download the app, pair your control unit, calibrate the system, and troubleshoot common issues.
Open →ICON FAQ
General questions about ICON products, fitment, service, and ordering.
Open →Product Instructions
Installation manuals and downloads for your specific ICON application.
Open →CDEV vs. CDXS
Not sure whether you want electronic control or hands-on manual tuning? Compare both.
Compare →Ready to Stop Guessing?
CDEV and ICON Intelligent Control are built into ICON's application-specific shocks and coilovers. Find the configuration engineered for your vehicle.
Already own CDEV + IIC? Download the ICON Intelligent Control app, pair your control unit, and work through setup or troubleshooting.
ICON IIC App Support →
