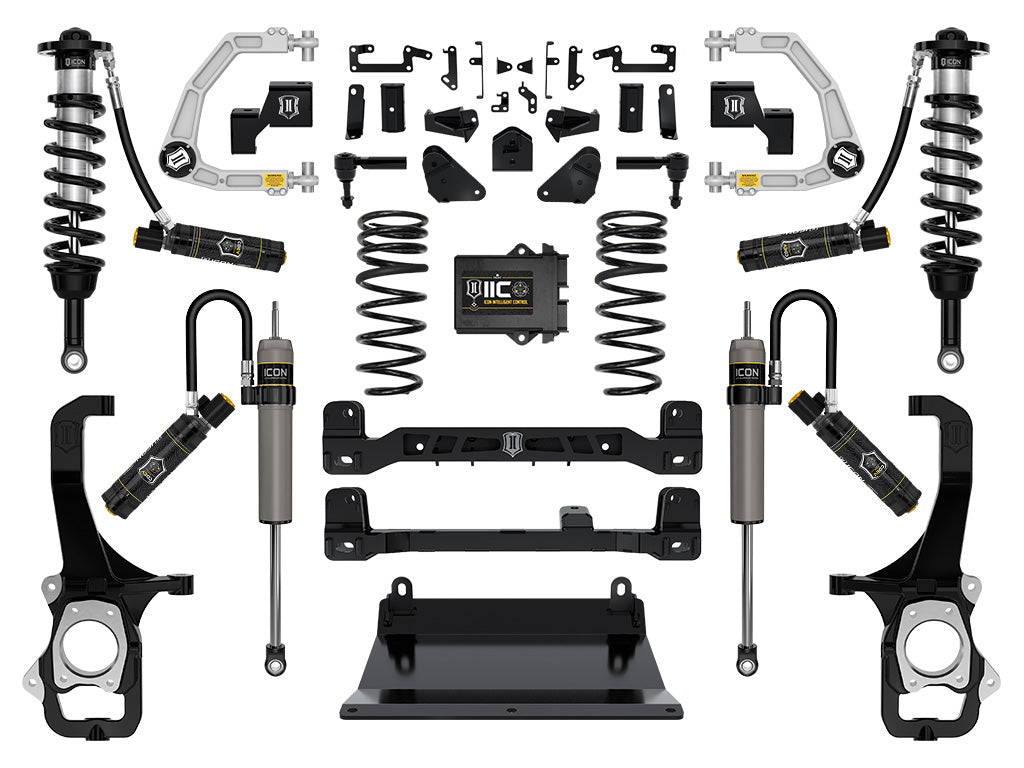

ICON 2022-2026 Toyota Tundra, 6" Lift, Stage 8 Suspension System, Billet

The ICON Vehicle Dynamics Stage 8 6" Suspension System with CDEV technology delivers a highly advanced suspension package for the 2022-2026 Toyota Tundra, combining electronically controlled damping, premium suspension components, and optimized geometry for exceptional performance on and off the road. Designed for drivers who demand the ultimate level of suspension adjustability and control, this system features ICON 2.5 Series front coilovers and rear shocks with remote reservoirs that provide superior damping performance, increased fluid capacity, and improved heat dissipation for consistent performance during extended off-road use. Equipped with ICON's Compression Damping Electronic Valve (CDEV) technology, the system allows in-vehicle adjustment of compression damping settings and active damping control through ICON Intelligent Control (IIC). Utilizing onboard sensors to monitor vehicle movement, chassis dynamics, and G-forces, IIC works with user-defined settings to make near-instantaneous, on-the-fly compression damping adjustments for optimized ride quality, handling response, and vehicle control. The system allows for up to a 40% increase in front wheel travel over stock without overstressing OE components and features adjustable front ride heights from 5-6 inches of lift. Through innovative engineering, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, maximizing ground clearance while minimizing CV joint angles.

Billet aluminum upper control arms equipped with ICON's patented Delta Joint Pro (U.S. Pat. 10,731,700) provide increased strength, exceptional durability, 90 degrees of total articulation, and on-vehicle caster and camber adjustment for precise alignment and optimum drivability. The system maintains factory track width while optimized suspension geometry nearly eliminates the bump steer common to stock Tundras. High-strength one-piece ductile iron steering knuckles, high-clearance CNC laser-cut and brake-formed 1/4-inch steel crossmembers, and an integrated front skid plate provide the strength and protection required for demanding off-road conditions. High-angle greaseable outer tie rods, sway bar drop brackets, heavy-duty front and rear bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket work together to maintain proper suspension geometry and reduce bind throughout the suspension's range of motion.

ICON-engineered custom triple-rate rear coil springs provide progressive spring rates for a comfortable on-road ride while delivering the stability and control needed during aggressive off-road driving. The result is a complete, electronically adjustable suspension system that delivers exceptional ride quality, intelligent damping control, and increased off-road capability with the clearance to fit 37-inch tires at full articulation.
