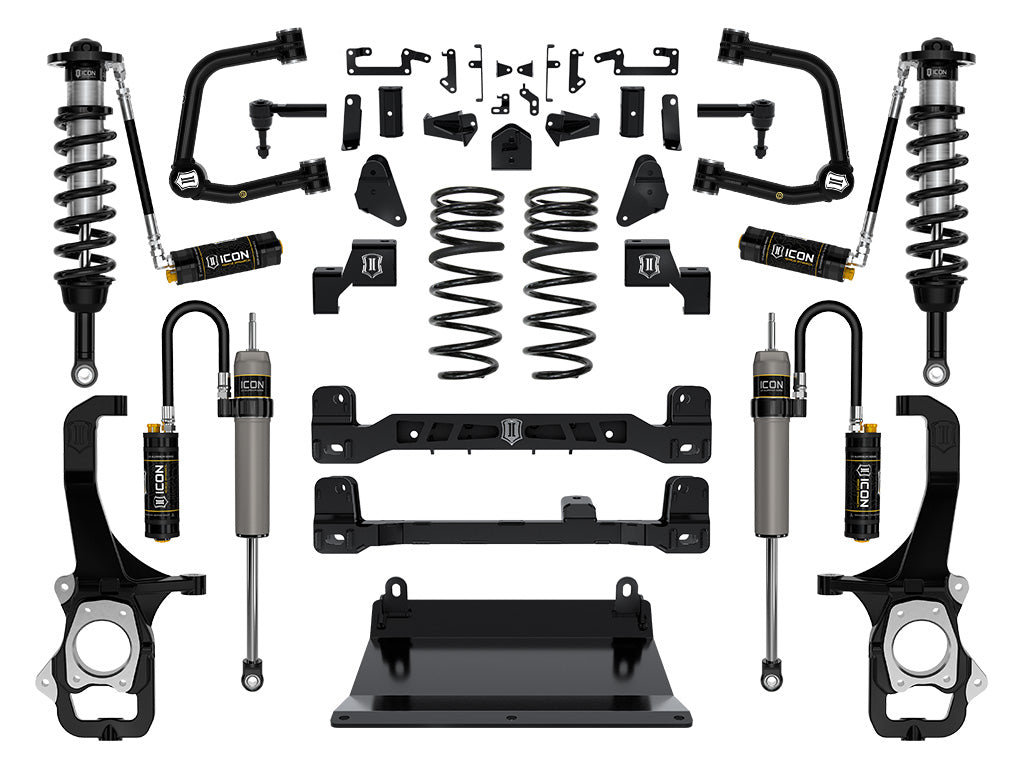

ICON 2022-2026 Toyota Tundra, 6" Lift, Stage 6 Suspension System, Tubular, CDCV

The ICON Vehicle Dynamics Stage 6 6" Suspension System with CDC Valves delivers an advanced level of suspension performance, adjustability, and control for the 2022-2026 Toyota Tundra. Designed for drivers who demand improved tuning capability and exceptional performance both on and off the road, this system combines ICON's 2.5 Series shock technology with a complete suite of heavy-duty suspension components engineered for durability, comfort, and capability. Vehicle-specific tuned 2.5 Series front coilovers and rear shocks with remote reservoirs provide superior damping control, increased fluid capacity, and improved heat dissipation for consistent performance during extended off-road use. Equipped with ICON CDC Valve technology, all shock absorbers feature 10 externally adjustable compression damping settings, allowing drivers to fine-tune suspension performance from a softer setting for improved comfort to a firmer setting for enhanced control and handling response. The system allows for up to a 40% increase in front wheel travel over stock without overstressing OE components and features adjustable front ride heights from 5-6 inches of lift. Through innovative engineering, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, maximizing ground clearance while minimizing CV joint angles. Tubular upper control arms equipped with ICON's patented Delta Joint Pro (U.S. Pat. 10,731,700) provide increased strength, exceptional durability, improved caster correction for enhanced drivability, and 90 degrees of total articulation for unrestricted suspension movement. The system maintains factory track width while optimized suspension geometry nearly eliminates the bump steer common to stock Tundras.

High-strength one-piece ductile iron steering knuckles, high-clearance CNC laser-cut and brake-formed 1/4-inch steel crossmembers, and an integrated front skid plate provide the strength and protection required for demanding off-road conditions. High-angle greaseable outer tie rods, sway bar drop brackets, heavy-duty front and rear bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket work together to maintain proper suspension geometry and reduce bind throughout the suspension's range of motion. ICON-engineered custom triple-rate rear coil springs provide progressive spring rates for a comfortable on-road ride while delivering the stability and control required during aggressive off-road driving. The result is a complete, vehicle-specific suspension system that delivers exceptional ride quality, precise damping adjustment, and uncompromising off-road capability with the clearance to fit 37-inch tires at full articulation.
