ICON 2022-2026 Toyota Tundra, 6" Lift, Stage 4 Suspension System, Billet
SKU: K53274
$7,366.60
$8,161.80
9% off
On backorder - will ship upon availability
RECOMMENDED ADD-ONS:
+ $75.16
+ $20.66
Overview

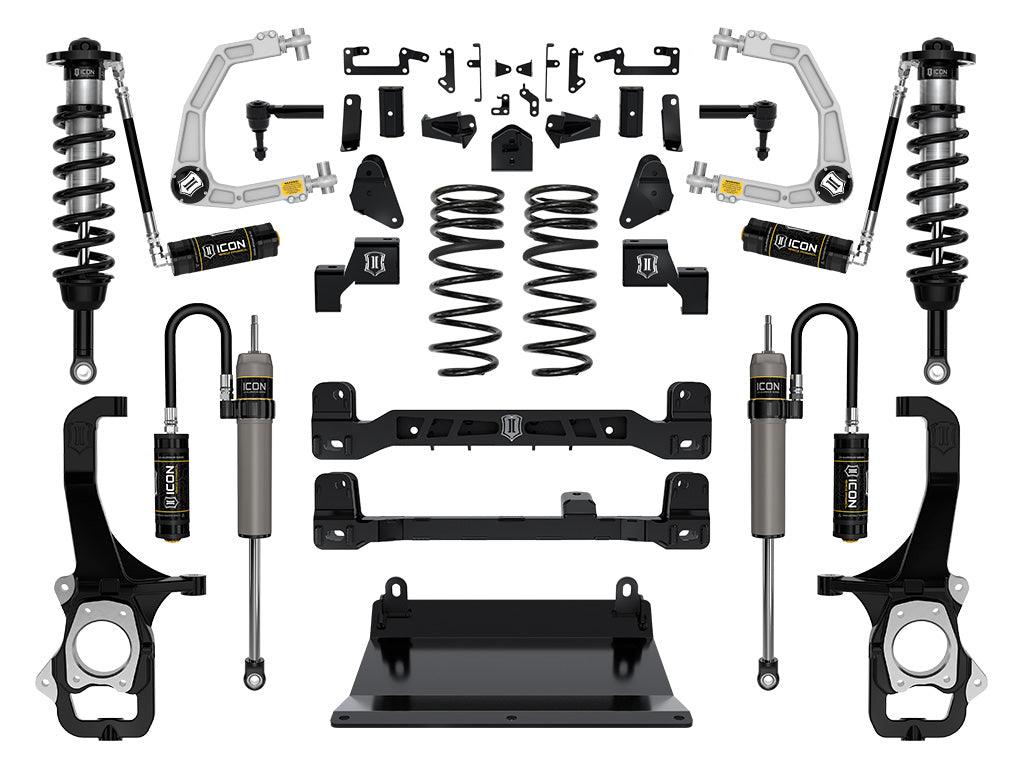

The ICON Vehicle Dynamics Stage 4 6" Suspension System delivers uncompromising performance for the 2022-2026 Toyota Tundra by combining premium shock technology, advanced suspension geometry, and purpose-built components engineered for maximum capability on and off the road. Vehicle-specific tuned 2.5 Series front coilovers and rear shocks with remote reservoirs provide exceptional damping control while increasing fluid capacity and improving heat dissipation for consistent performance during prolonged off-road use. The system increases front wheel travel by up to 40% over stock without overstressing OE suspension components and features adjustable front ride heights from 5-6 inches of lift. Through innovative engineering, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, maximizing ground clearance while minimizing CV joint angles. Billet aluminum upper control arms featuring ICON's patented Delta Joint Pro (U.S. Pat. 10,731,700) provide superior strength, exceptional durability, 90 degrees of total articulation, and on-vehicle caster and camber adjustment for precise alignment and optimum drivability. The system maintains factory track width while optimized suspension geometry nearly eliminates the bump steer common to stock Tundras.
High-strength one-piece ductile iron steering knuckles, high-clearance CNC laser-cut and brake-formed 1/4-inch steel crossmembers, and an integrated front skid plate provide outstanding durability and protection for demanding off-road environments. High-angle greaseable outer tie rods, sway bar drop brackets, heavy-duty front and rear bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket maintain proper suspension geometry and reduce bind throughout the suspension's range of motion. Completing the system are ICON-engineered custom triple-rate rear coil springs, which deliver progressive spring rates for exceptional on-road comfort while providing the stability, support, and control required during aggressive off-road driving. The result is a complete, vehicle-specific suspension system that offers outstanding ride quality, precise handling, and the confidence to tackle the toughest terrain while clearing 37-inch tires at full articulation.
Read More
High-strength one-piece ductile iron steering knuckles, high-clearance CNC laser-cut and brake-formed 1/4-inch steel crossmembers, and an integrated front skid plate provide outstanding durability and protection for demanding off-road environments. High-angle greaseable outer tie rods, sway bar drop brackets, heavy-duty front and rear bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket maintain proper suspension geometry and reduce bind throughout the suspension's range of motion. Completing the system are ICON-engineered custom triple-rate rear coil springs, which deliver progressive spring rates for exceptional on-road comfort while providing the stability, support, and control required during aggressive off-road driving. The result is a complete, vehicle-specific suspension system that offers outstanding ride quality, precise handling, and the confidence to tackle the toughest terrain while clearing 37-inch tires at full articulation.
Key Features
- 2.5 Series front coilovers and rear shocks with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
- Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
- Billet aluminum UCAs with Delta Joint Pro for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- ICON engineered custom triple rate rear coil springs provide progressive spring rates for a comfortable ride on-road as well as stability and control during aggressive off-road driving
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103425368 |
| Proxy Number | 53274 |
| Shipping Width | 24.00 in |
| Shipping Length | 25.00 in |
| Shipping Depth | 9.00 in |
| Shipping Weight | 413.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #381: Requires minimum of 20" diameter wheels
- APPLICATION NOTE #405: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
- APPLICATION NOTE #406: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
- APPLICATION NOTE #407: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
- APPLICATION NOTE #408: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
- APPLICATION NOTE #450: Provides 3" of rear lift on a Tundra equipped with TRD Off-Road, TRD Sport, or TRD Rally suspension packages and TRD Pro. A Tundra without TRD suspension package will net 3.5" of rear lift.
System Components
- 51010 (qty: 1) | 22-26 TUNDRA FRONT BOX KIT 1
- 51011 (qty: 1) | 22-26 TUNDRA FRONT BOX KIT 2
- 51012 (qty: 1) | 22-26 TUNDRA REAR BOX KIT
- 51014 (qty: 1) | 22-26 TUNDRA FRONT SKID PLATE
- 58771 (qty: 1) | 22-26 TUNDRA 2.5 VS RR 6" COILOVER KIT
- 51013 (qty: 1) | 22-26 TUNDRA REAR 3.5" LIFT TRIPLE RATE COIL SPRING KIT
- 58561DJ (qty: 1) | 22-26 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KIT
- 51017 (qty: 1) | 22-26 TUNDRA FRONT SKID PLATE
- 57841P (qty: 1) | 22-26 TUNDRA 3.5" REAR 2.5 VS RR PAIR
