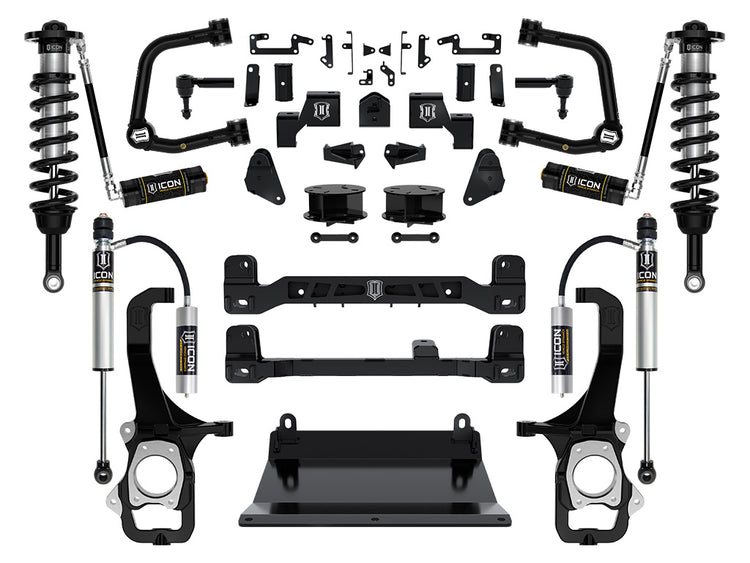

ICON 2022-2026 Toyota Tundra, 6" Lift, Stage 3 Suspension System, Tubular
SKU: K53273T
$6,002.50
$6,670.86
10% off
On backorder - will ship upon availability
RECOMMENDED ADD-ONS:
+ $75.16
Overview
The ICON Vehicle Dynamics Stage 3 6" Suspension System is engineered to maximize the capability of the 2022-2026 Toyota Tundra, delivering exceptional ride quality, increased wheel travel, and the durability required for serious off-road use. Vehicle-specific tuned 2.5 Series front coilovers with remote reservoirs provide outstanding damping performance while increasing fluid capacity and improving heat dissipation for consistent performance during extended off-road driving. The system delivers up to a 40% increase in front wheel travel over stock without overstressing OE suspension components and features adjustable front ride heights from 5-6 inches of lift. Through innovative engineering, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, preserving ground clearance while minimizing CV joint angles. Tubular upper control arms equipped with ICON's patented Delta Joint Pro (U.S. Pat. 10,731,700) provide increased strength, exceptional durability, improved caster correction for enhanced drivability, and 90 degrees of total articulation for unrestricted suspension movement. The system maintains factory track width while optimized suspension geometry nearly eliminates the bump steer common to stock Tundras.
High-strength one-piece ductile iron steering knuckles, high-clearance CNC laser-cut and brake-formed 1/4-inch steel crossmembers, and an integrated front skid plate deliver the strength and protection needed for demanding off-road use. High-angle greaseable outer tie rods, sway bar drop brackets, heavy-duty front and rear bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket work together to maintain proper suspension geometry and reduce bind throughout the suspension's range of motion. Completing the package are ICON 2.0 Aluminum Series rear shocks with remote reservoirs, providing a balanced rear suspension tune along with increased fluid volume and improved cooling to maintain consistent damping under sustained abuse, while the rear coil spring spacer kit retains the factory rear springs for a cost-effective lift solution. The result is a complete, vehicle-specific suspension system that delivers outstanding on-road comfort, confident handling, and uncompromising off-road performance with the clearance to fit 37-inch tires at full articulation.
Read More
High-strength one-piece ductile iron steering knuckles, high-clearance CNC laser-cut and brake-formed 1/4-inch steel crossmembers, and an integrated front skid plate deliver the strength and protection needed for demanding off-road use. High-angle greaseable outer tie rods, sway bar drop brackets, heavy-duty front and rear bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket work together to maintain proper suspension geometry and reduce bind throughout the suspension's range of motion. Completing the package are ICON 2.0 Aluminum Series rear shocks with remote reservoirs, providing a balanced rear suspension tune along with increased fluid volume and improved cooling to maintain consistent damping under sustained abuse, while the rear coil spring spacer kit retains the factory rear springs for a cost-effective lift solution. The result is a complete, vehicle-specific suspension system that delivers outstanding on-road comfort, confident handling, and uncompromising off-road performance with the clearance to fit 37-inch tires at full articulation.
Key Features
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- System allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Optimized suspension geometry nearly eliminates the bump steer found in stock Tundras
- Adjustable front ride heights from 5-6” of front lift over stock (up to 6" of lift with only 4" of crossmember drop)
- Tubular UCAs with Delta Joint Pro for added strength, durability, and caster correction for improved drivability
- Patented Delta Joint Pro (U.S. Pat. 10,731,700) provides improved durability and serviceability with 90 degrees of total articulation
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- 2.0 Aluminum Series rear shocks with remote reservoirs provide balanced tune with the front coilovers and increased fluid volume for better heat dissipation
- Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103425351 |
| Proxy Number | 53273 |
| Shipping Width | 24.00 in |
| Shipping Length | 25.00 in |
| Shipping Depth | 9.00 in |
| Shipping Weight | 359.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #381: Requires minimum of 20" diameter wheels
- APPLICATION NOTE #405: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
- APPLICATION NOTE #406: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
- APPLICATION NOTE #407: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
- APPLICATION NOTE #408: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
System Components
- 51010 (qty: 1) | 22-26 TUNDRA FRONT BOX KIT 1
- 51011 (qty: 1) | 22-26 TUNDRA FRONT BOX KIT 2
- 51012 (qty: 1) | 22-26 TUNDRA REAR BOX KIT
- 51014 (qty: 1) | 22-26 TUNDRA FRONT SKID PLATE
- 58771 (qty: 1) | 22-26 TUNDRA 2.5 VS RR 6" COILOVER KIT
- 51016 (qty: 1) | 22-26 TUNDRA 3" LIFT REAR COIL SPACER KIT
- 58461DJ (qty: 1) | 22-26 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KIT
- 51017 (qty: 1) | 22-26 TUNDRA FRONT SKID PLATE
- 56517R (qty: 2) | 22-26 TUNDRA 3.5" REAR 2.0 VS RR
