ICON 2022-2026 Toyota Tundra, 6" Lift, Stage 1 Suspension System
SKU: K53271
$3,118.36
$3,721.33
16% off
On backorder - will ship upon availability
Overview
The ICON Vehicle Dynamics Stage 1 6" Suspension System is the ideal entry point into ICON's premium suspension lineup for the 2022-2026 Toyota Tundra, delivering the clearance, strength, and suspension geometry needed to fit 37-inch tires while maintaining outstanding on- and off-road performance. Designed to preserve factory track width and optimize steering geometry, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, minimizing CV joint angles while maximizing ground clearance and suspension travel. Heavy-duty steel front coilover spacers work with the factory front coilovers, while a rear coil spring spacer kit retains the OE rear springs for an economical, well-balanced lift. High-strength, one-piece ductile iron steering knuckles, high-clearance 1/4-inch CNC laser-cut and brake-formed steel crossmembers, and an integrated front skid plate provide exceptional durability for demanding off-road use. Included sway bar drop brackets, front and rear heavy-duty bump stop brackets, improved rear sway bar links and mounts, and a rear track bar bracket work together to reduce suspension bind and maintain proper geometry throughout suspension travel. High-angle outer tie rods with greaseable metal-on-metal rod ends improve steering durability and articulation, while ICON 2.0 Aluminum Series rear shocks deliver enhanced damping performance and control over stock. As with every ICON 6" Tundra Suspension System, Stage 1 is engineered as a complete, vehicle-specific package that delivers excellent ride quality, confident handling, and uncompromising off-road capability.
Read More
Key Features
- Optimized design to fit 37" tires with full articulation (larger tires may fit but fender trimming and modifications will be required)
- Maintains factory track width
- Front coilover spacer kit with heavy duty steel construction
- Provides 6" front suspension lift with only 4" of crossmember drop
- Single piece high-strength ductile iron steering knuckles with built-in 4" drop
- Hight clearance front crossmembers and front skid plate, CNC Laser Cut and brake-formed from 1/4-inch steel plate
- Included sway bar drop brackets reduce bind in OE sway bar links
- Front and rear heavy-duty bump stop brackets
- High angle outer tie-roads feature durable, metal on metal greaseable tie rod ends
- 2.0 Aluminum Series rear shocks to improve rear suspension performance
- Rear coil spring spacer kit to provide lift while retaining factory rear coil springs
- Improved rear sway bar links and mounts, and rear track bar bracket to reduce bind in the rear suspension
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103425313 |
| Proxy Number | 53271 |
| Shipping Width | 24.00 in |
| Shipping Length | 25.00 in |
| Shipping Depth | 9.00 in |
| Shipping Weight | 273.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
- APPLICATION NOTE #144: Not compatible with TRD Pro
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #154: Not compatible with Tundra SR5 equipped with TRD Sport package
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #381: Requires minimum of 20" diameter wheels

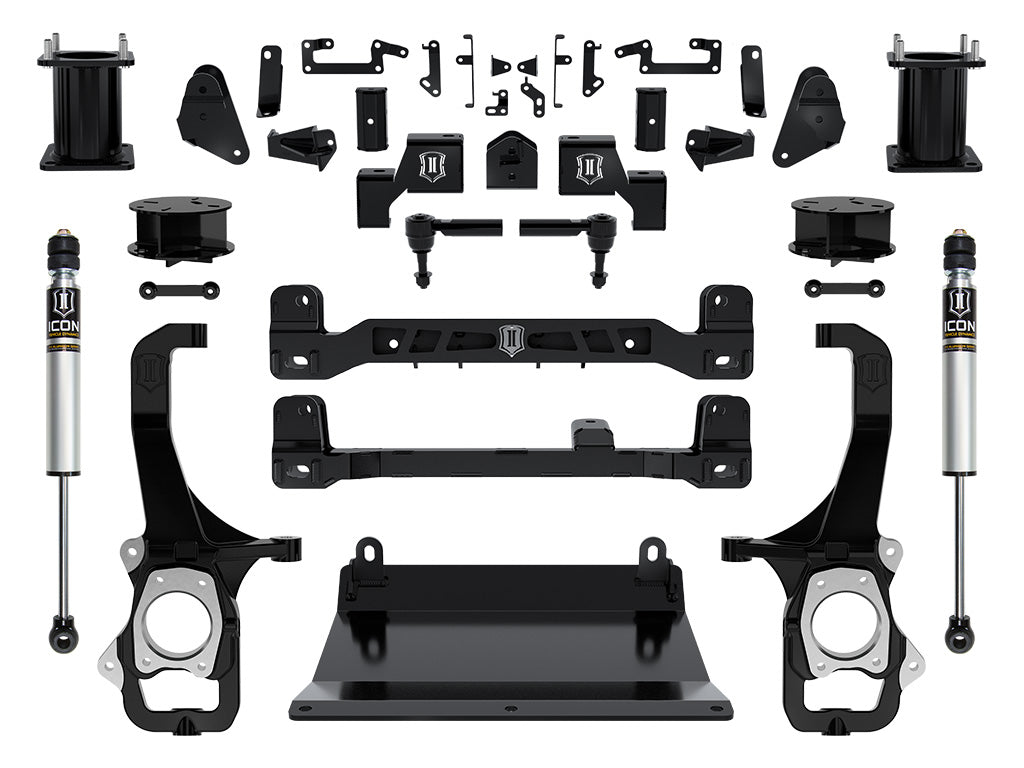

System Components
- 51010 (qty: 1) | 22-26 TUNDRA FRONT BOX KIT 1
- 51011 (qty: 1) | 22-26 TUNDRA FRONT BOX KIT 2
- 51012 (qty: 1) | 22-26 TUNDRA REAR BOX KIT
- 51014 (qty: 1) | 22-26 TUNDRA FRONT SKID PLATE
- 51015 (qty: 1) | 22-26 TUNDRA 6" COILOVER SPACER KIT
- 51016 (qty: 1) | 22-26 TUNDRA 3" LIFT REAR COIL SPACER KIT
- 51017 (qty: 1) | 22-26 TUNDRA FRONT SKID PLATE
- 56517 (qty: 2) | 22-26 TUNDRA 3.5" REAR 2.0 VS IR
