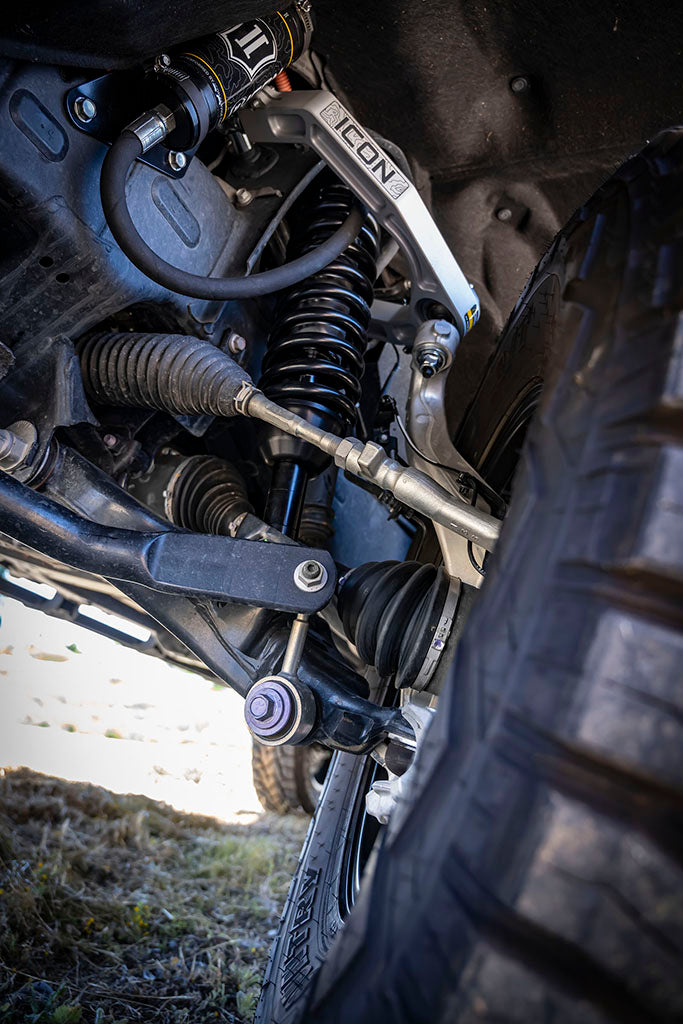

ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia, Billet Upper Control Arm Kit, w/ Delta Joint Pro
SKU: 58561DJ
$1,439.95
RECOMMENDED ADD-ONS:
+ $75.16
+ $20.66
Overview

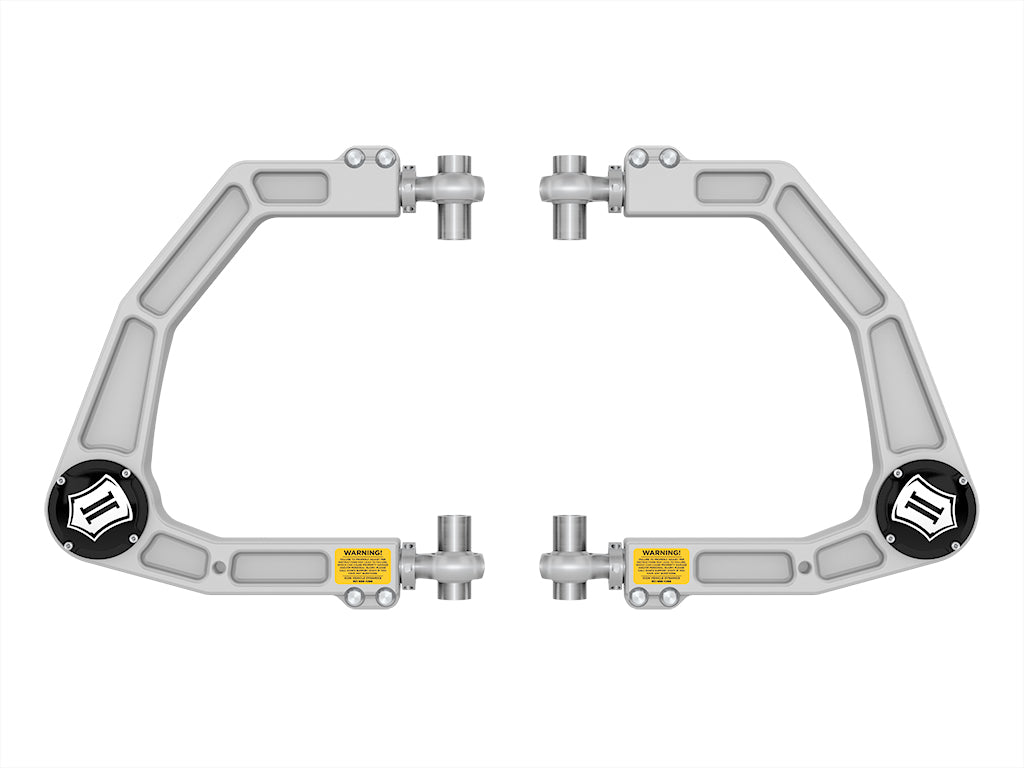

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for the 2022-2025 Toyota Tundra or 2023-2025 Toyota Sequoia.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
- CNC machined 6061 billet aluminum construction with satin anodized finish
- Corrects suspension geometry and allows for proper wheel alignment on Tundras with up to 3” of lift
- Quick, precise, on-vehicle adjustment for both caster and camber
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed dust cover cap
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103414362 |
| Proxy Number | 58561 |
| Shipping Width | 15.00 in |
| Shipping Length | 16.00 in |
| Shipping Depth | 6.00 in |
| Shipping Weight | 22.0000 LB |
Technical Notes
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels (2-3.5" Lift): ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Wheels (2-3.5" Lift): ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
- Recommended Aftermarket Wheels (ICON 6" Lift): ICON Alloys - 20x9 with 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires (2-3.5" Lift): 35" x 12.50"
- Recommended Aftermarket Tires (ICON 6" Lift): 37" x 12.50"
- TECH NOTE: Compatible with 2022-2025 Tundra equipped with 0-3.5” of front lift over stock
- TECH NOTE: Compatible with 2022-2024 Tundra with TRD Sport Package equipped with 0-4.5” of front lift over stock
- TECH NOTE: Compatible with 2022-2025 Tundra TRD Pro equipped with 0-1.75” of front lift over stock
- TECH NOTE: Compatible with ICON 2022-2024 Tundra 6" Lift Performance Suspension System but NOT compatible with 6" lift kits from other manufacturers
- TECH NOTE: Compatible with 2023-2024 Sequoia equipped with 0-4.5” of front lift over stock
