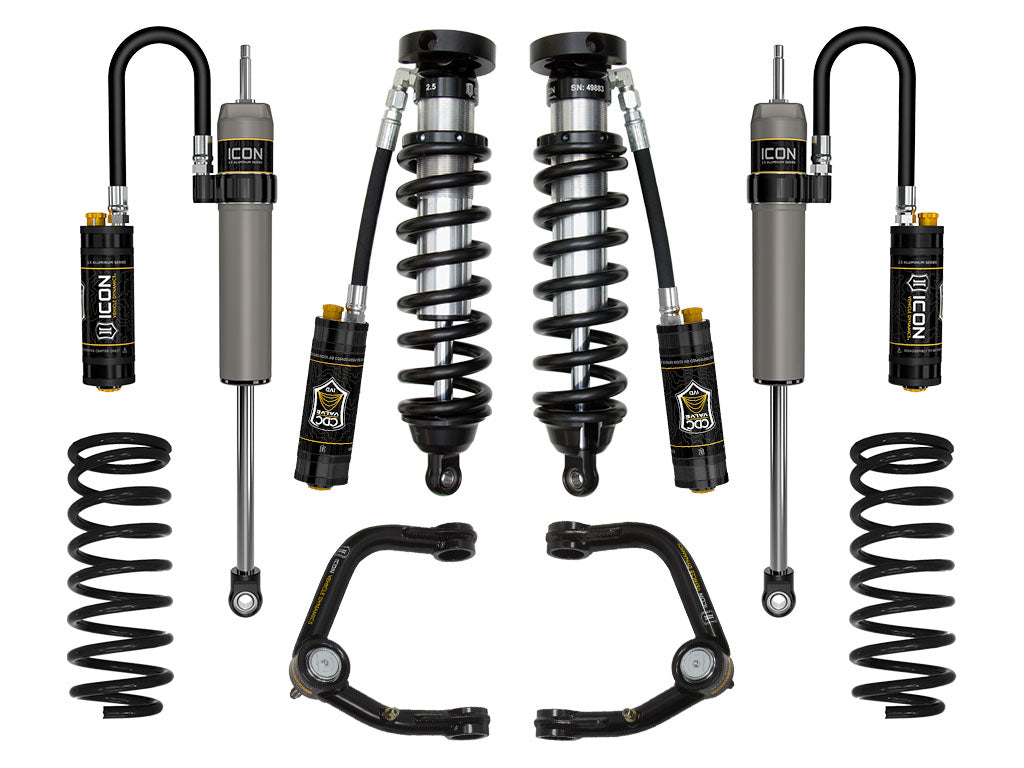

ICON 1996-2002 Toyota 4Runner, 0-3" Lift, Stage 5 Suspension System, Tubular UCA
SKU: K53135
$4,850.91
Low stock: 2 left
RECOMMENDED ADD-ONS:
+ $75.16
Overview
The 1996-2002 Toyota 4Runner was an excellent vehicle off the showroom floor over a decade ago, and Toyota’s reputation for reliability and performance continues to draw the attention of both hardcore off-road enthusiasts and newcomers to the “3rd Gen” platform to this day. ICON engineers have assessed the 3rd Gen 4Runner front to back and developed components that work together to extract maximum performance out of the vehicle. With the ICON Stage 5 suspension system on and off-road performance is significantly improved with 2.5 Series Extended Travel Remote Reservoir Coilovers and 2.5 Aluminum Series Remote Reservoir Rear Shocks that feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control. ICON’s CDC (Compression Damping Control) Valve option adds to the adjustability of these shocks, allowing the end-user to adjust the ride characteristics of the vehicle with the turn of a knob. The 2.5 Aluminum Series coilovers are height adjustable from 0-3” of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups. The addition of an ICON tubular steel upper control arm kit provides increased wheel travel over stock while also offering alignment correction for improved overall handling. ICON engineered rear coil springs increase rear suspension performance while also providing 1" of rear end lift. ICON Vehicle Dynamics' 1996-2002 4Runner Stage 5 suspension system is an excellent choice for those drivers looking to drastically improve the performance and handling characteristics of their 3rd Gen on the road as well as in the dirt.
Read More
Key Features
- Increased wheel travel and ride quality over stock
- Tubular steel upper control arms feature ICON Delta Joints
- Bolt-on design makes for straightforward install
- Decreased body roll
- Vehicle-specific tuned front and rear shocks provide superior damping and control
- CDCV technology allows for quick and easy compression damping adjustment
- Coilovers are adjustable from 0-3" of lift height
- Shocks are fully rebuildable and revalveable
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- FK Rod End bearings for extended longevity and minimal deflection
- ICON engineered rear coils provide 1" of lift and improved performance
- CNC machined 6061 aircraft-grade aluminum components
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103417363 |
| Proxy Number | 53135 |
| Shipping Width | 12.00 in |
| Shipping Length | 27.00 in |
| Shipping Depth | 8.00 in |
| Shipping Weight | 125.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
- APPLICATION NOTE #35: Remote reservoir mounting brackets may interfere with aftermarket bumper mounts/windshield washer bottles
- APPLICATION NOTE #47: 700Lb/In Expedition Coil available for heavier equipped vehicles
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
- APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
System Components
- 58716C (qty: 1) | 96-02 4RUNNER 2.5 VS EXT TRAV RR CDCV COILOVER KIT
- 58400DJ (qty: 1) | 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT
- 53015 (qty: 1) | 96-02 4RUNNER 1" REAR COIL SPRING KIT
- 57800CP (qty: 1) | 96-02 4RUNNER REAR 2.5 VS CDCV RR PAIR
