ICON 2021-2023 Ford Bronco, HOSS 1.0 Pkg, 1.375-3" Lift Stage 2 Suspension System, Tubular
SKU: K40002T
$3,022.14
RECOMMENDED ADD-ONS:
+ $347.66
+ $75.16
Overview
The ICON Vehicle Dynamics Stage 2 Suspension System for the 2021-2023 Ford Bronco features front and rear 2.5 EXP Series coilovers to yield increased wheel travel along with superior ride quality and suspension performance both on and off-road. 2.5 EXP Series coilovers combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco’s factory coil spring and other components. EXP coilovers use a series of snap-ring grooves machined into the shock body to provide easily-selectable ride height adjustment from 1.375-3” of front lift and 1.5-2.25" of rear lift over stock on Bronco’s equipped with the OE HOSS 1.0 suspension package.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
- Vehicle specific design for 2021-2023 Ford Bronco with HOSS 1.0 Suspension Package
- Vehicle specific tuned shocks for superior shock damping and vehicle control

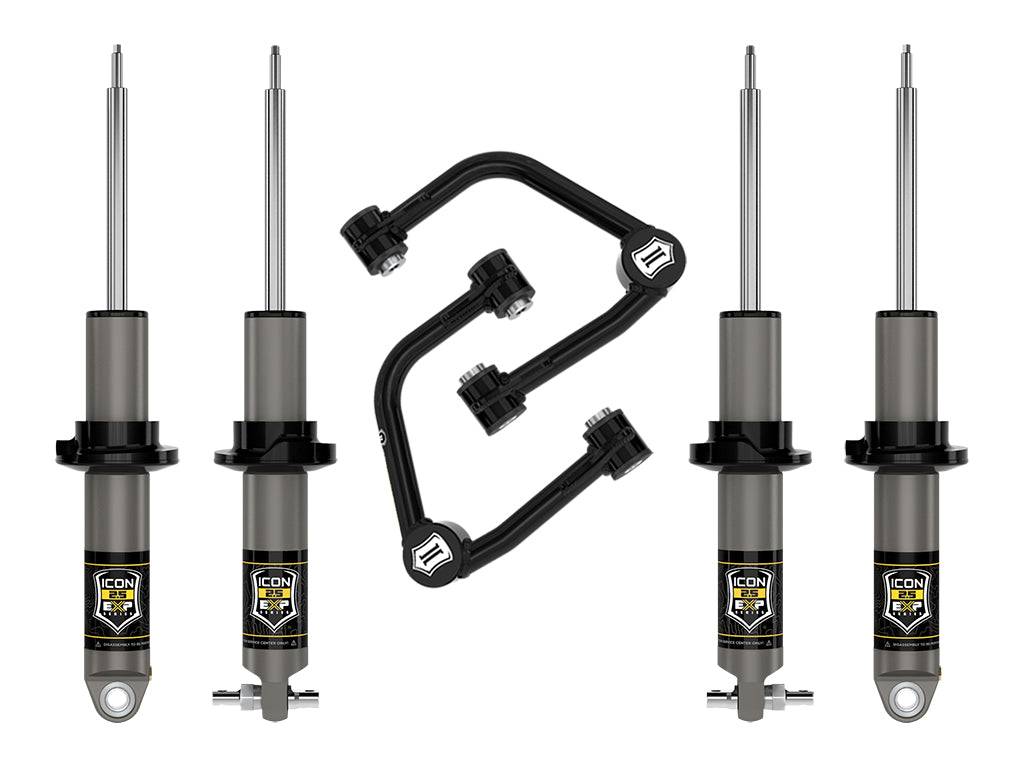

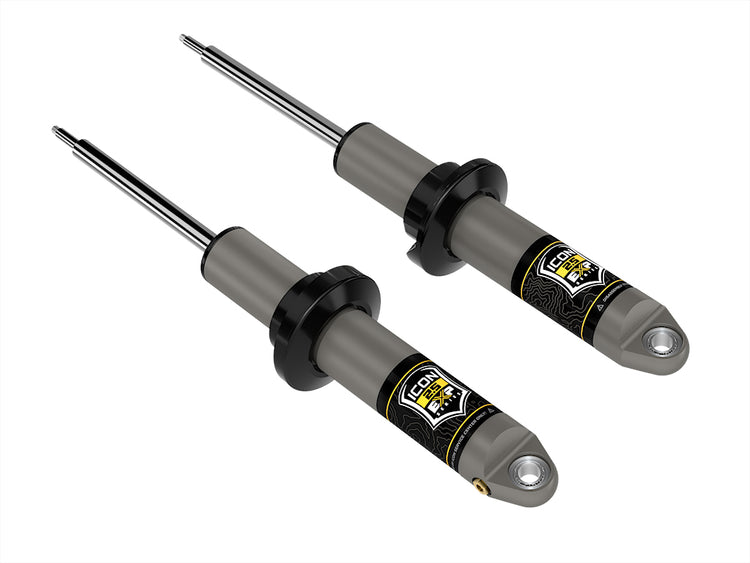

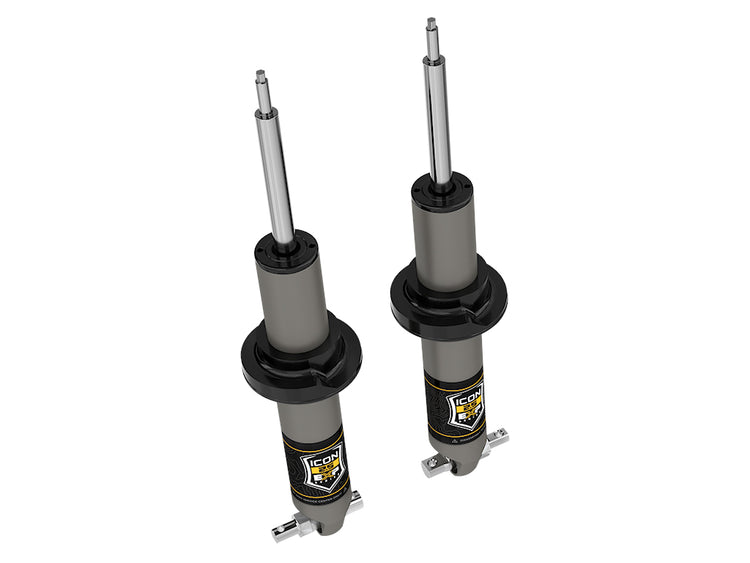

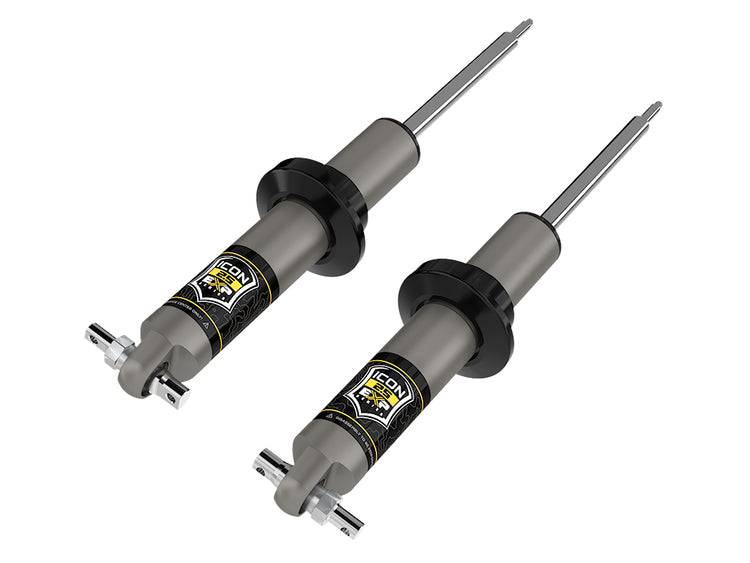

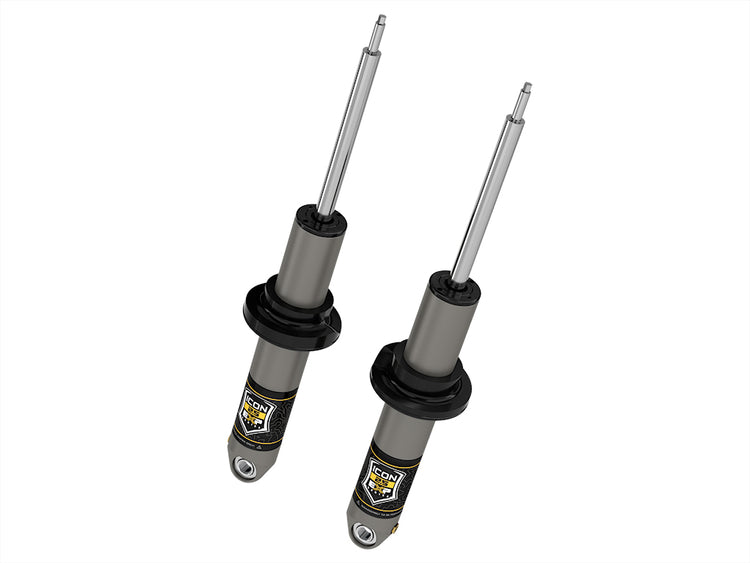

- Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
- Adjustable ride heights from 1.375-3” of front lift and 1.5-2.25" of rear lift over stock with the use of snap rings
- Utilizes factory coils and coil hardware
- Inverted shaft up design featuring 7/8” diameter, induction hardened, chrome plated shafts
- One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103420899 |
| Proxy Number | 40002 |
| Shipping Width | 6.00 in |
| Shipping Length | 32.00 in |
| Shipping Depth | 5.00 in |
| Shipping Weight | 76.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- APPLICATION NOTE #66: 2 Door Models Will Sit Taller Than 4 Door Models.
- APPLICATION NOTE #138: Recommend High Clearance Crash Bars Part #42000 On Non-Sasquatch Equipped Vehicles When Running 35" Tires
- APPLICATION NOTE #139: When Running 37" Tires Crash Bar Removal May Be Required But Is Not Recommended
- APPLICATION NOTE #147: When Running 37" Tires Use Bump Stop Spacer Kit Part #611082 In The Front
- TECH NOTE: Only compatible with Ford Broncos equipped with HOSS 1.0 Suspension Package
- TECH NOTE: Not compatible with Bronco Raptor
