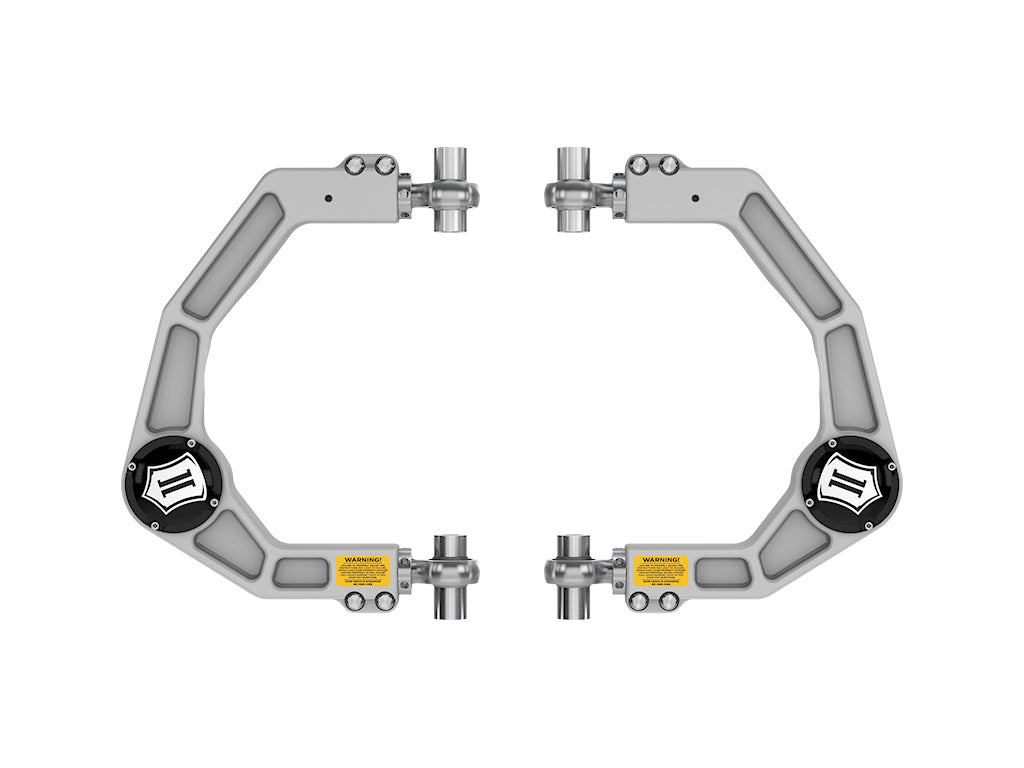

ICON 2021-2024 Ford F-150, Front, Billet Upper Control Arms w/ Delta Joint Pro
SKU: 98523DJ
$1,429.95
16 in stock
RECOMMENDED ADD-ONS:
+ $20.66
+ $75.16
Overview
This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2021-2024 Ford F-150 with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint PRO allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” Heim joints provide precise and smooth function throughout the range of travel while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front end upgrade for the 2021-2024 Ford F-150.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Key Features
- CNC machined 6061 billet aluminum construction with satin anodized finish
- Corrects suspension geometry and allows for proper wheel alignment on F-150s with up to 3.5” of lift
- Quick, precise, on-vehicle adjustment for both caster and camber
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed dust cover cap
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103423722 |
| Proxy Number | 98523 |
| Shipping Width | 15.00 in |
| Shipping Length | 16.00 in |
| Shipping Depth | 6.00 in |
| Shipping Weight | 25.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension
- APPLICATION NOTE #130: Equipped with Dynamic Bending Headlamps purchase part # 611071
- TECH NOTE: Compatible with 0-3.5" of front lift on all F-150 submodels except Raptor and Tremor with OE steering knuckles
- TECH NOTE: Compatible with 3.5-4.5" of front lift on all F-150 submodels except Raptor and Tremor with ICON Front Knuckle Kit Part # 94000
- TECH NOTE: Compatible with 0-3" of front lift over stock on F-150 Tremor with OE steering knuckles
- TECH NOTE: Not compatible with models equipped with OnBoard Scales
- TECH NOTE: Not compatible with F-150 Raptor
