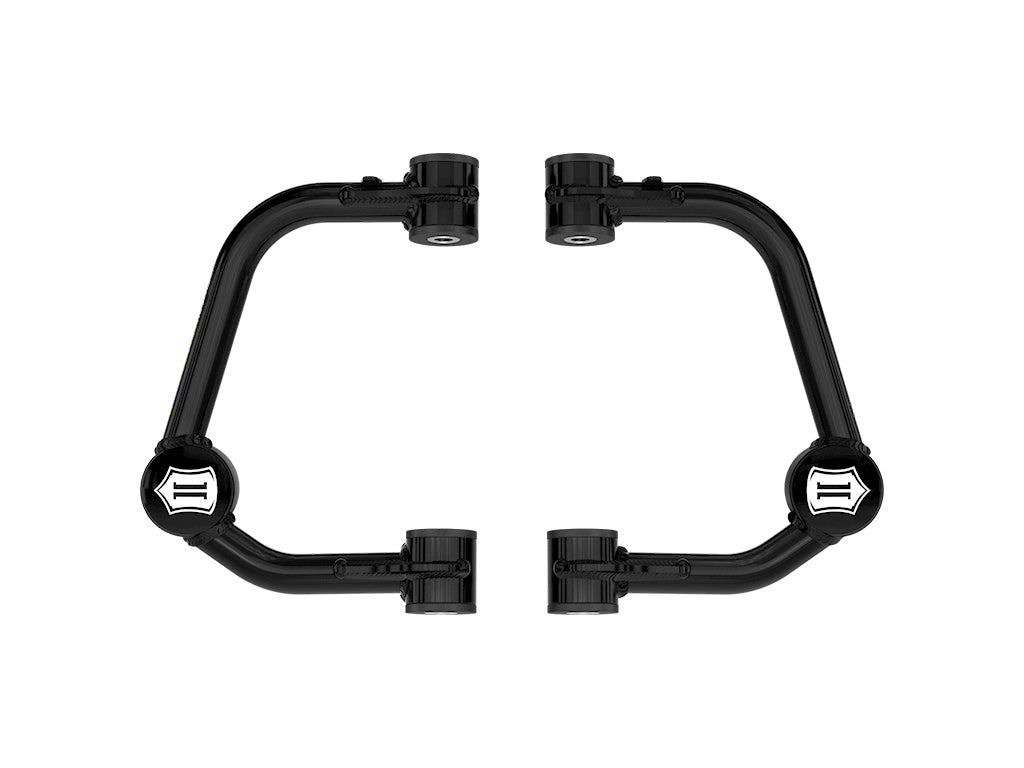

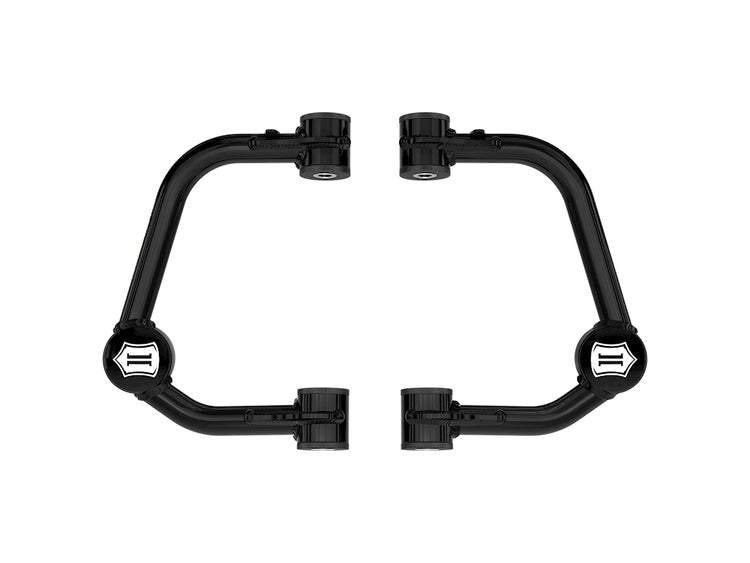

ICON 2021-2024 Ford F-150, Front, Tubular Upper Control Arms w/ Delta Joint Pro
SKU: 98522DJ
$879.95
RECOMMENDED ADD-ONS:
+ $75.16
Overview
These tubular steel upper control arms free up your 2021-2024 Ford F-150 front suspension movement to allow maximum travel for performance shocks and coilovers at an easier price point compared to our range-topping billet components. Additional caster is built in to correct geometry to allow for better front-end alignment on lifted vehicles. The all-new Delta Joint PRO provides a host of durability and performance improvements compared to our standard Delta Joints, including up to 90° of free articulation to maximize suspension travel without bind. It’s also larger and fully rebuildable. The Delta Joint PRO’s grease fitting is protected by an anodized billet aluminum dust cap, included with the kit. Serviceable Heavy Duty Dual Stage bushings at the frame pivots are greaseable and rebuildable, and fit into precision machined bushing housings to ensure a responsive driving experience. ICON Tubular Upper Control Arms are constructed of heavy wall DOM tubing, CNC formed and fixture welded before receiving our multi-stage black powder coat finish. Includes all components and hardware necessary for a complete install, these tubular UCAs are the perfect front end upgrade for the 2021-2024 Ford F-150.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Key Features
- Built in added caster for better handling on lifted vehicles
- Delta Joint PRO allows maximum articulation without binding
- Delta Joint PRO is 100% serviceable and rebuildable

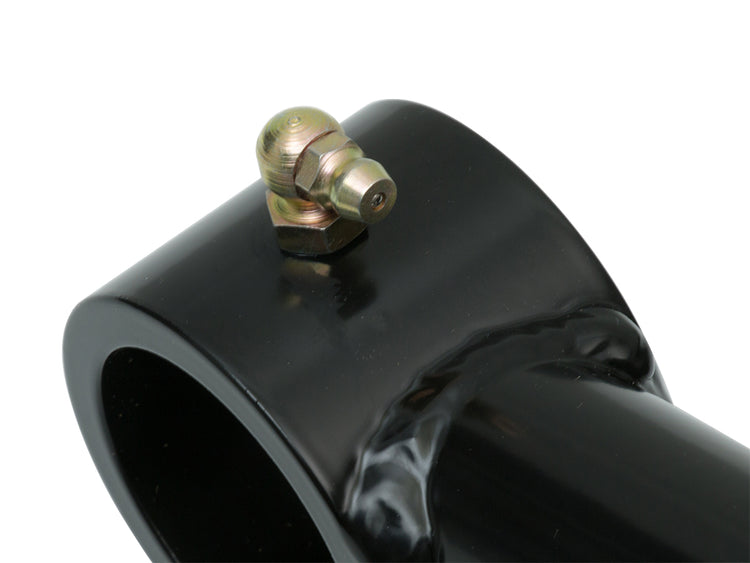

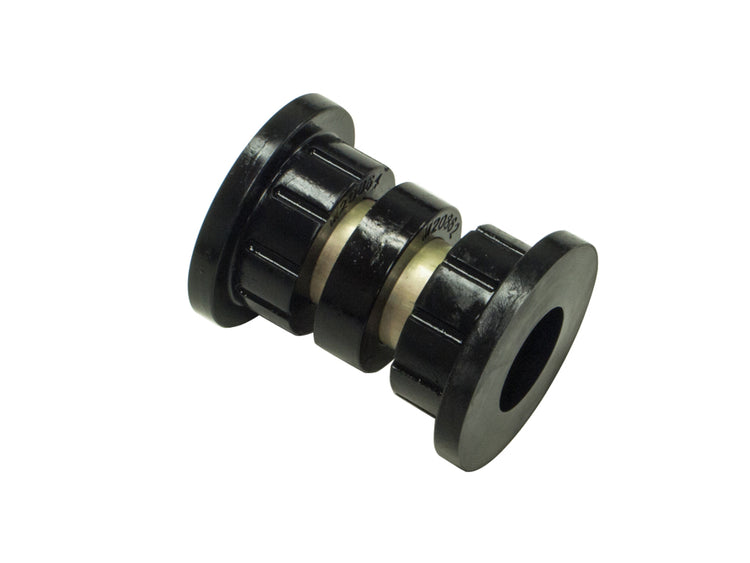

- Serviceable dual stage polyurethane pivot bushings
- CNC machined housings for bushings and Delta Joint PRO
- 1026 DOM tube construction with black powder coat finish
- Includes billet dust caps for Delta Joint PRO
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103423715 |
| Proxy Number | 98522 |
| Shipping Width | 13.00 in |
| Shipping Length | 17.00 in |
| Shipping Depth | 8.00 in |
| Shipping Weight | 25.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25" Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625" Backspace / 16mm Offset
- Recommended Aftermarket Tires: 34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- APPLICATION NOTE #129: Will not work with factory installed electronically controlled suspension
- TECH NOTE: Only compatible with OE or ICON steering knuckles. DO NOT install in combination with ANY other aftermarket steering knuckles.
- TECH NOTE: Compatible with 1.75-3.5" of front lift on all F-150 submodels except Raptor and Tremor with OE steering knuckles
- TECH NOTE: Compatible with 3.5-4.5" of front lift on all F-150 submodels except Raptor and Tremor with ICON Front Knuckle Kit Part # 94000
- TECH NOTE: Compatible with 1-3" of front lift over stock on F-150 Tremor with OE steering knuckles
- TECH NOTE: Not compatible with F-150 Raptor
