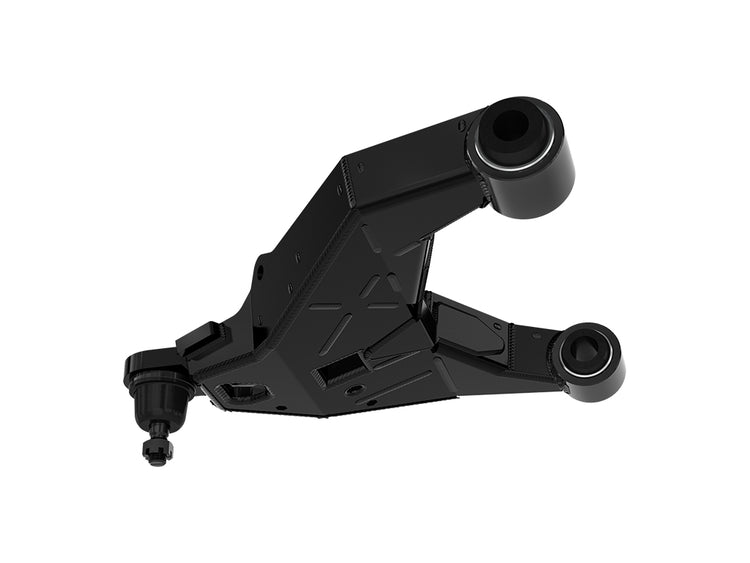

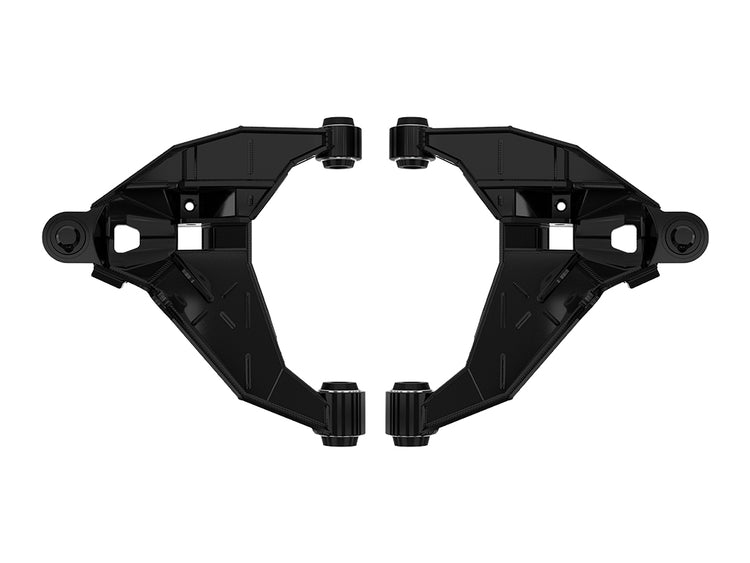

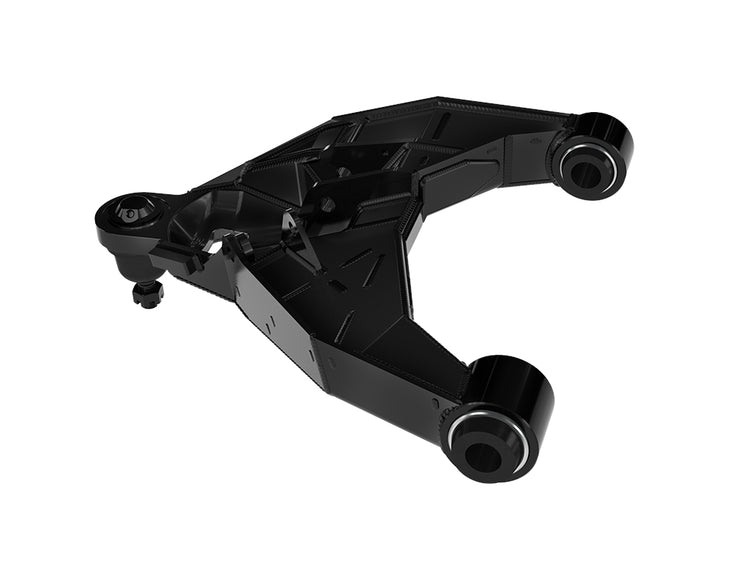

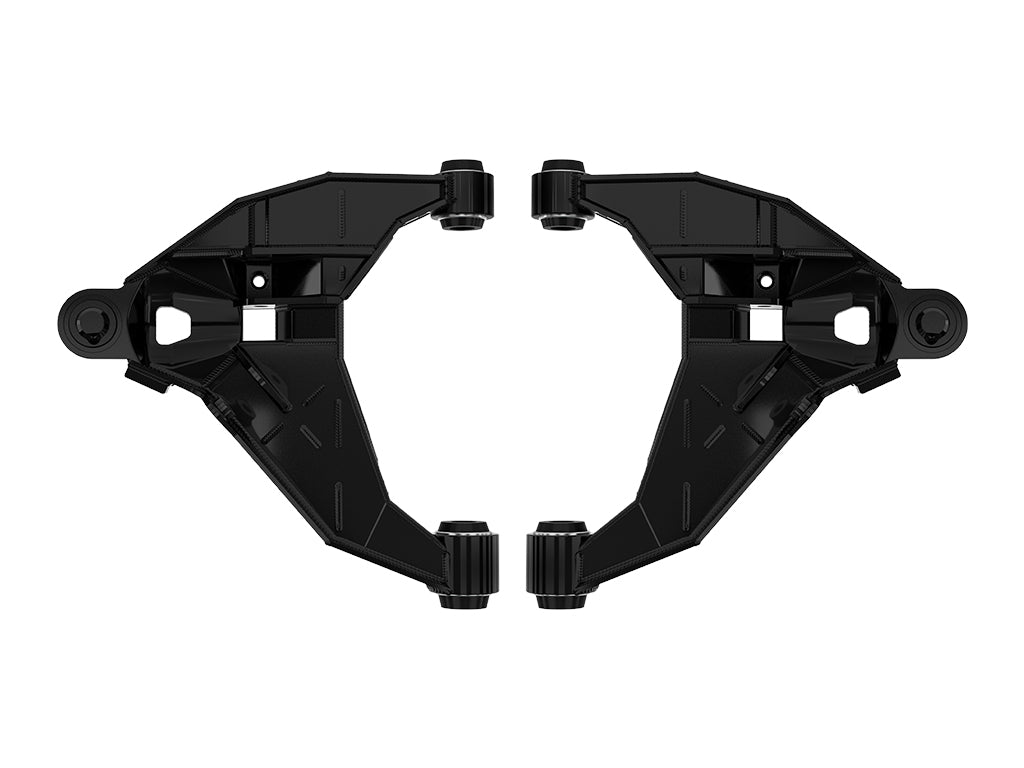

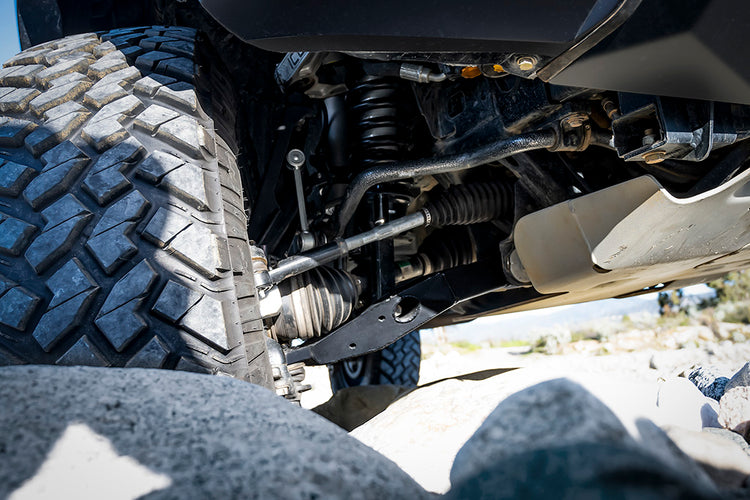

ICON 2005-2023 Toyota Tacoma, Front, Lower Control Arm Kit
SKU: 54300
$1,961.95
RECOMMENDED ADD-ONS:
Overview
***ADDITIONAL MODEL SPECIFIC HARDWARE KIT ALSO REQUIRED FOR INSTALL – SEE APPLICATION NOTES BELOW***
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
- High clearance, stock width design
- Fully welded boxed steel construction with internal ribs for maximum strength
- CNC laser cut and brake formed steel plate
- ICON secondary shock compatibility with ICON S2 Shock Hoops (sold separately)
- Recessed coilover mounting points
- Pocketed lower plates allow drainage and easy access to coilover mounting hardware
- Angled front plates and relocated steering stops help arms slide over obstacles and prevent trail hang ups
- CNC machined forged ball joint housings ensure strength and CV boot clearance
- Metal on metal, greaseable lower ball joints for longevity and noise free operation
- Maintenance free bonded polyurethane bushings
- Semi-gloss black powder coat finish for corrosion resistance
- Fabricated components covered by ICON’s Limited Lifetime Warranty
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103429328 |
| Proxy Number | 54300 |
| Shipping Width | 19.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 50.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #167: 2005-2015 Tacoma also requires part # 54302
- APPLICATION NOTE #168: 2016-2023 Tacoma also requires part # 54301
- APPLICATION NOTE #210: Maximum steering angle is reduced for secondary shock compatibility
- TECH NOTE: Fits 2005-2015 4WD and PreRunner and 2016-2023 2WD/4WD Toyota Tacoma models
- TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
- TECH NOTE: Not compatible with OE front coilovers. Aftermarket coilovers with COM10 lower bearings are required.
