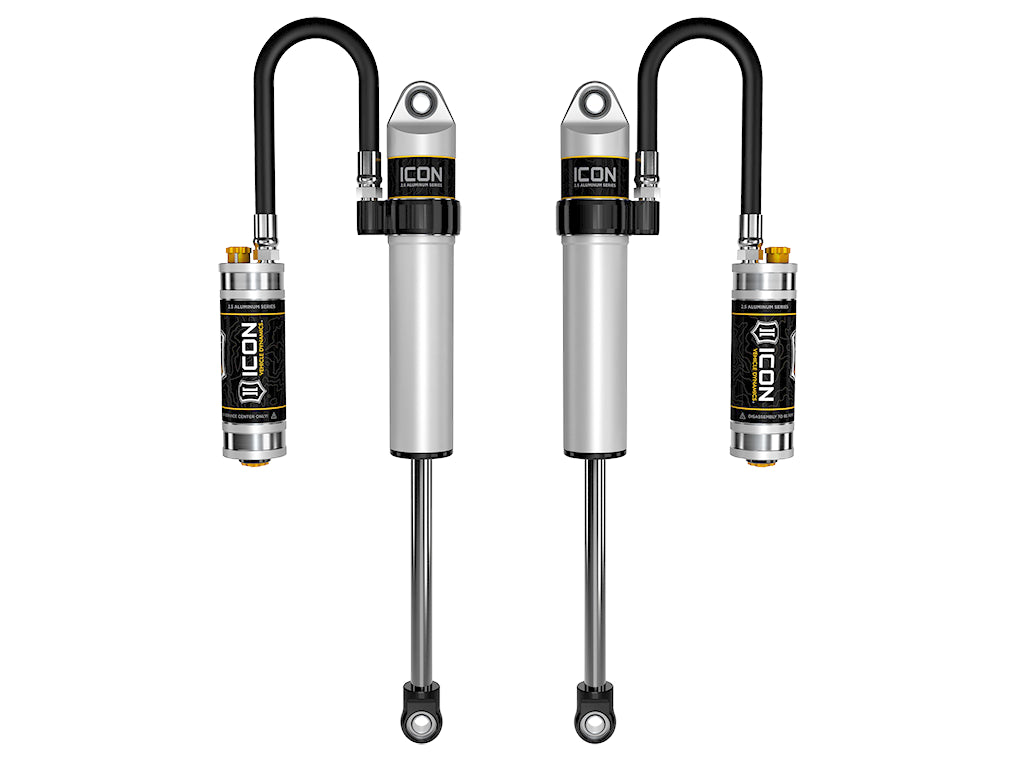

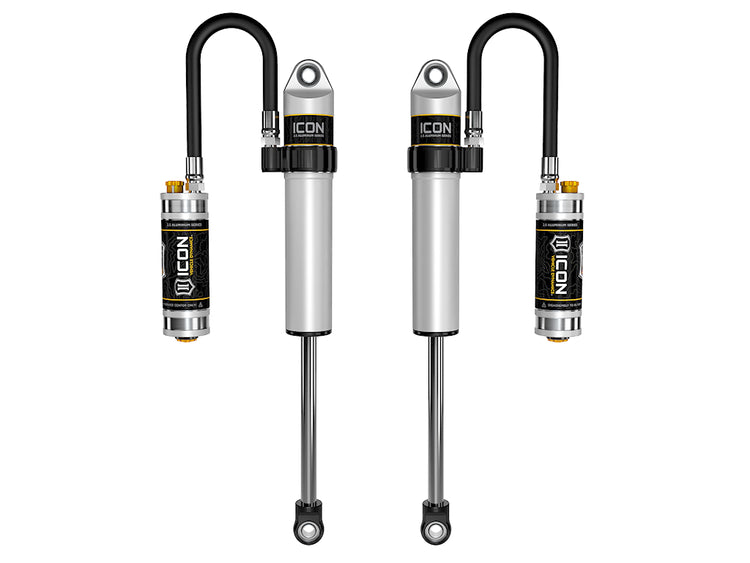

ICON 2005-2023 Toyota Tacoma/2003-2024 Toyota 4Runner//2007-2014 Toyota FJ Cruiser/2003-2009 Lexus GX470, Front 2.5 VS Remote Reservoir w/ CDCV, S2 Secondary Shocks, Pair
SKU: 59706CP
$1,634.95
Low stock: 7 left
Decrease quantity for ICON 2005-2023 Toyota Tacoma/2003-2024 Toyota 4Runner//2007-2014 Toyota FJ Cruiser/2003-2009 Lexus GX470, Front 2.5 VS Remote Reservoir w/ CDCV, S2 Secondary Shocks, Pair
Increase quantity for ICON 2005-2023 Toyota Tacoma/2003-2024 Toyota 4Runner//2007-2014 Toyota FJ Cruiser/2003-2009 Lexus GX470, Front 2.5 VS Remote Reservoir w/ CDCV, S2 Secondary Shocks, Pair
RECOMMENDED ADD-ONS:
Overview
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. If you are looking for a more user defined tune, consider looking into the Omega Series bypass shocks.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Key Features
- Nitrogen charged monotube design with remote reservoir
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
- 6061 aircraft grade aluminum CNC machined components
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- PTFE lined spherical bearings and application specific mounting hardware
- 100% Rebuildable
- 100% Revalveable
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103404691 |
| Proxy Number | 59706 |
| Shipping Width | 15.00 in |
| Shipping Length | 30.00 in |
| Shipping Depth | 9.00 in |
| Shipping Weight | 28.0000 LB |
Technical Notes
- TECH NOTE: Fits ICON S2 Secondary Shock System only. May not fit other aftermarket stock width front lower control arm kits with secondary shock compatibility and matching secondary shock hoop. See ICON part number 59702CP-CB for other brand secondary shock kit compatibility.
- TECH NOTE: Will not fit KDSS equipped Lexus GX470s
