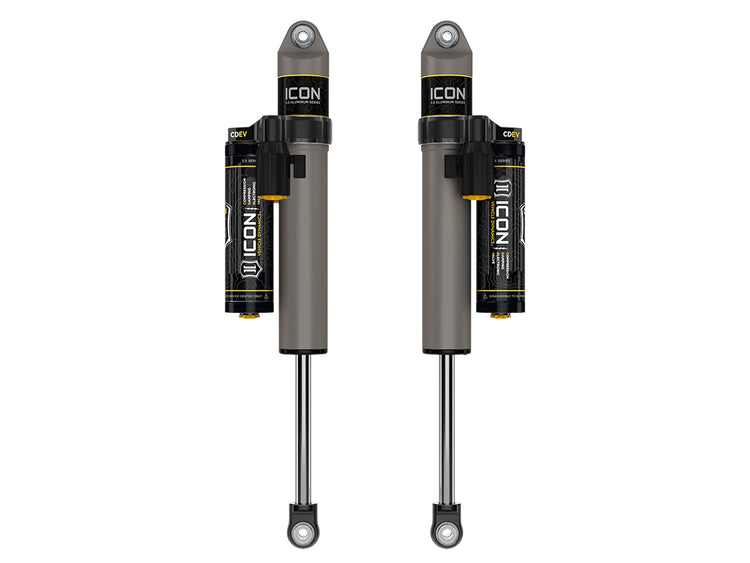

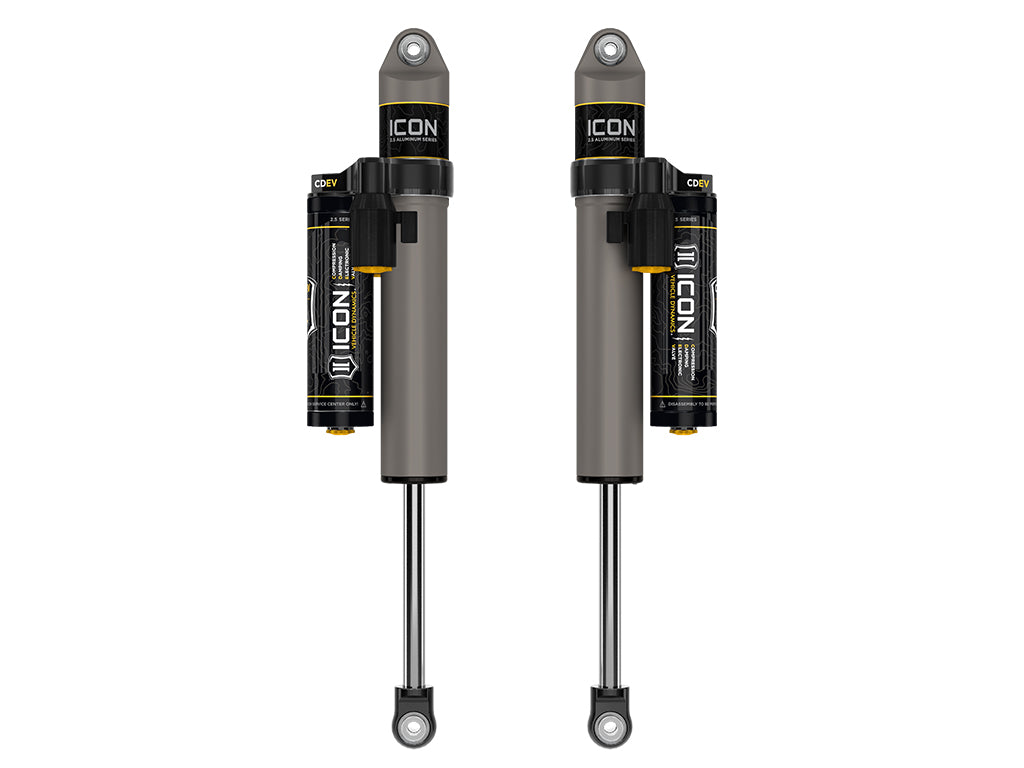

ICON 2017-2025 Ford F-250/F-350 Super Duty 4WD, 3-6” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDEV, Pair
SKU: 37701EP
$2,070.95
RECOMMENDED ADD-ONS:
Decrease quantity for ICON 2017-2025 Ford F-250/F-350 Super Duty 4WD, 3-6” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDEV, Pair
Increase quantity for ICON 2017-2025 Ford F-250/F-350 Super Duty 4WD, 3-6” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDEV, Pair
Overview
ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- Fully rebuildable and re-tunable
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103414492 |
| Proxy Number | 37701 |
| Shipping Width | 15.00 in |
| Shipping Length | 39.00 in |
| Shipping Depth | 9.00 in |
| Shipping Weight | 35.0000 LB |
Technical Notes
- APPLICATION NOTE #3: Will not fit F-350/F-450 cab & chassis models
- APPLICATION NOTE #150: Shocks are fully serviceable
- APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control App
- APPLICATION NOTE #204: Also requires installation of applicable IIC kit and CDEV front shocks
- TECH NOTE: Compatible with 3-6” of rear lift over stock
