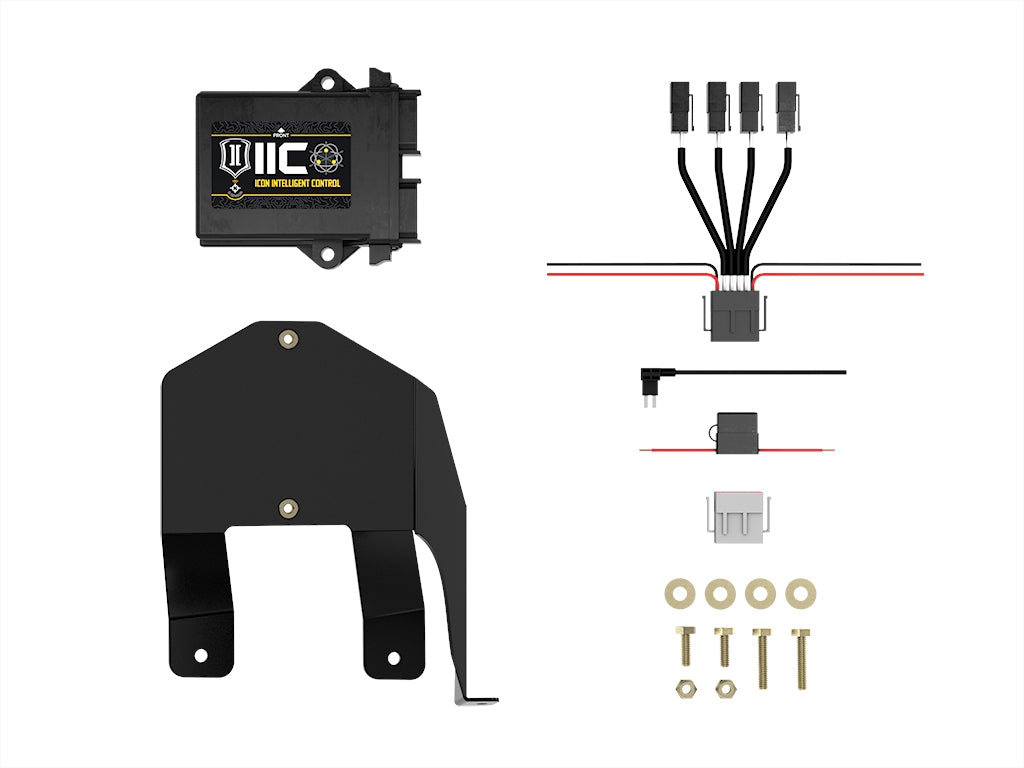

ICON 2015-2025 Ford F-150/2017-2022 Ford Super Duty, ICON Intelligent Control Install Kit
SKU: 93500
$619.07
RECOMMENDED ADD-ONS:
+ $138.38
Overview
ICON Intelligent Control (IIC) is the computer that monitors, analyzes, and processes data in real-time. Information from the onboard G-force sensor and Gyroscope perform calculations based on algorithms and user-defined settings to predict terrain and wheel position. IIC has the capability to collect information at over 1000 times per second, process the data and make adjustments, then deliver those changes to Compression Damping Electronic Valve (CDEV) in the shock absorbers in under 40 milliseconds. IIC also works as a data driver to connect the user to ICON’s proprietary mobile App interface for monitoring and adjusting shock settings. The IIC is mounted to the 2017-2022 Ford Super Duty and the 2015-2025 Ford F-150 using application specific mounting brackets, hardware and wire harnesses, ensuring an easy and clean looking install.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
- Offers selectable active shock damping adjustment as well as manual adjustment of baseline settings without exiting vehicle
- Onboard sensors monitor G-forces and movement of vehicle chassis
- Performs calculations based on sensor inputs, custom algorithms, and user defined settings at a rate of over 1000 times per second
- Sends necessary damping adjustments to CDEV shocks that react in under 40 milliseconds
- User interface provided by IIC Mobile App via Bluetooth connection to iOS device
- Mobile app offers preconfigured “Drive Modes” as well as the ability to create custom presets
- Also functions as a data logger for time, speed, distance, and G-force allowing you to record data from your trips
- Application specific mounting brackets, hardware and wire harnesses
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103414508 |
| Proxy Number | 93500 |
| Shipping Width | 9.00 in |
| Shipping Length | 19.00 in |
| Shipping Depth | 5.00 in |
| Shipping Weight | 4.0000 LB |
Technical Notes
- TECH NOTE: Also requires installation of CDEV front and rear shock absorbers
- TECH NOTE: Included wire harnesses allows IIC to operate 4 CDEV equipped shocks, 2 fronts and 2 rears. For optional CDEV secondary front shocks in addition to CDEV primary shocks, part number 191207 is also required.
