ICON 19-21 Ford Ranger, 0-3.5" Lift, Stage 8 Susp System, Billet UCA Al Knuckle
SKU: K93208A
$6,259.98
This item is backordered and will ship upon availability.
RECOMMENDED ADD-ONS:
Overview
ICON Vehicle Dynamics 2019-2021 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform’s suspension and addressed any areas where performance could be extracted. The Stage 8 (Billet) system includes vehicle-specific tuned, extended travel CDCV 2.5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3.5” allowing the use of larger, more aggressive wheel and tire combinations. The ICON billet aluminum upper control arm kit improves the overall suspension performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, and improved suspension component clearance. Replacing the OE ball joint with the ICON Delta Joint allows for full bump and extended droop travel of the front suspension while eliminating bind. ICON CDCV 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear while the included foam bump stop kit increases rear end compliance. To improve the front-to-rear balance and increase the compliance of the truck, the rear spring rate of the Multi Rate Leaf Packs has been lowered compared to stock. The Multi Rate Leaf Pack was designed with an additional leaf that can be exchanged or added to the pack yielding additional spring rate that will handle more "outfitted" vehicles. The ICON 2019-2021 Ford Ranger Stage 8 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on- and off-road.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Key Features
- Height-adjustable coilovers provide a range of 0-3.5” of front lift height
- Fits 2WD & 4WD applications
- Increased lift height allows for fitment of larger and more aggressive tires
- 35% increase in front wheel travel over stock
- ICON shocks feature vehicle specific tune for superior performance and ride quality
- CDCV technology allows for quick and easy compression damping adjustment
- Corrosion resistant CAD plated shock body with 7/8" shaft (2.5 Series coilovers)
- Corrosion resistant hard anodized shock body with 7/8" shaft (2.5 Aluminum Series rear shocks)
- FK Rod End bearings provide extended longevity and minimal deflection
- Shocks are fully rebuildable and revalvable
- ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
- CNC machined 6061 billet aluminum upper control arms allow for on-vehicle camber and caster adjustment
- Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
- Delta Joint ball joints carry ICON's exclusive 5 year limited warranty
- 3 user-adjustable rear spring rates for unique vehicle configurations
- Significantly lighter rear spring rate (up to 35%) allows for smooth motion throughout the entire range of travel
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103422664 |
| Proxy Number | 93208 |
| Shipping Width | 48.00 in |
| Shipping Length | 48.00 in |
| Shipping Depth | 17.00 in |
| Shipping Weight | 261.0000 LB |
Technical Notes
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
- Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #110: Minor Trimming Required For Recommended Tire Size
- TECH NOTE: Compatible with 2019-2021 Rangers equipped with aluminum knuckles only
- TECH NOTE: Ranger XLT or Lariat models equipped with Tremor package have front lift height range of 0-2.5" over stock.
- TECH NOTE: Not compatible with Ranger Raptor.

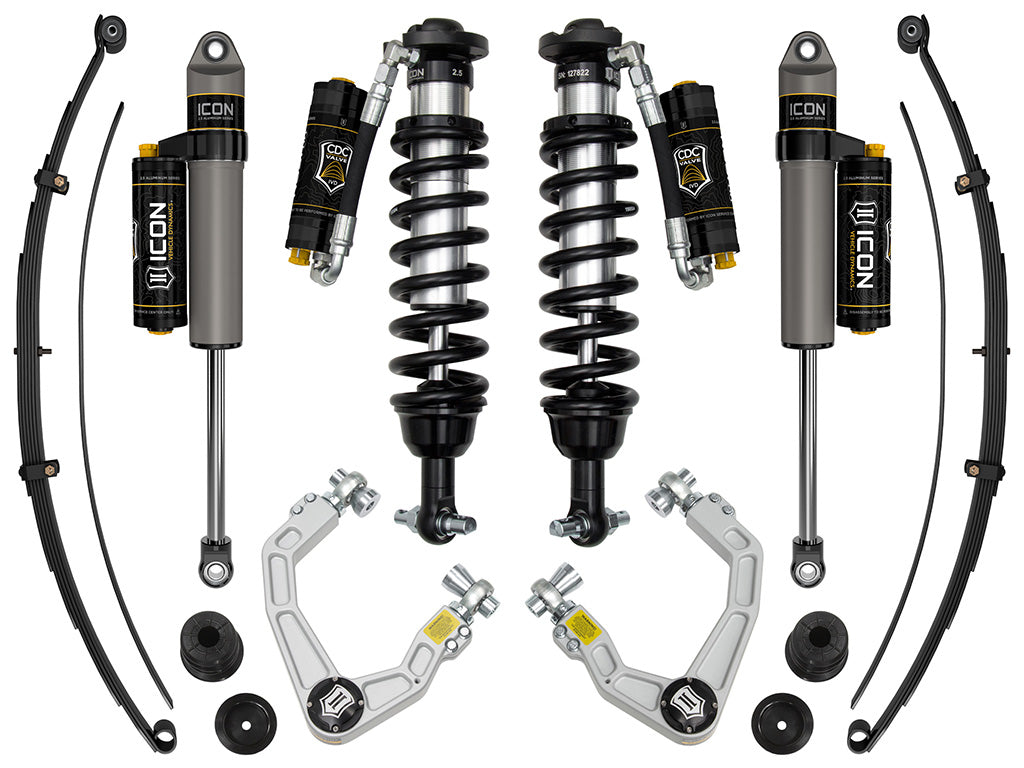

System Components
- 91355C (qty: 1) | 19-23 RANGER EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT
- 98520DJ (qty: 1) | 19-21 RANGER BILLET UCA DJ KIT (AL KNUCKLE ONLY)
- 97730CP (qty: 1) | 19-23 RANGER REAR 2.5 VS PB CDCV PAIR
- 191205 (qty: 1) | UNIVERSAL FOAM BUMP STOP KIT
- 198520A (qty: 2) | 19-23 RANGER MULTI RATE LEAF PACK W/ ADD IN LEAF
- 91200H (qty: 1) | 19-23 RANGER MULTI RATE LEAF SPRING HARDWARE KIT
