ICON 2020-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, 2-3.5" Lift, Stage 1 Suspension System, Billet
SKU: K78361
In stock
Overview

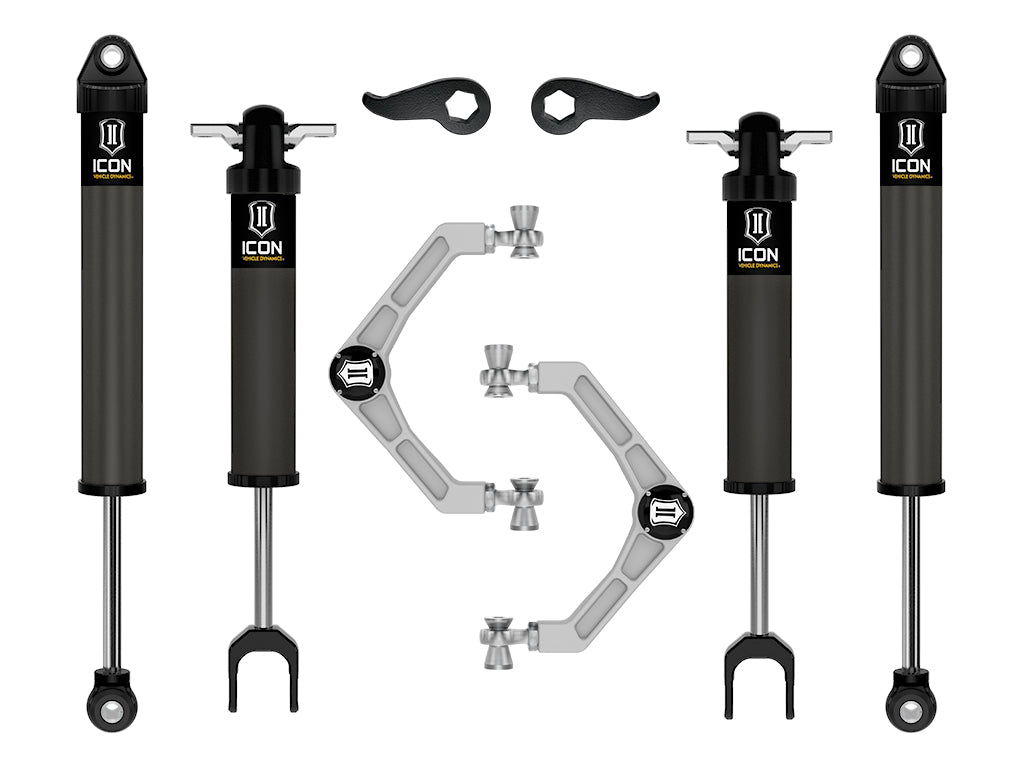

Tougher, stronger and more capable - That's the motto that General Motors used when debuting the all-new fleet of heavy-duty trucks in 2020. ICON Vehicle Dynamics stayed true to GM engineers' thought process with the development of our suspension systems for the 2020-2026 Chevrolet Silverado 2500 HD/3500 HD and GMC Sierra 2500 HD/3500 HD trucks. Using ICON's holistic engineering philosophy, our R&D team went above and beyond to develop several stages of complete suspension systems that provide varying levels of adjustability, capability, and overall vehicle performance. ICON's Stage 1 system is comprised of V.S. 2.0 HD Series internal reservoir front and rear shocks, billet aluminum Delta Joint Pro HD upper control arms, and torsion keys that allow for 2-3.5” of front lift height adjustment. The ICON vehicle specific tuned 2.0 HD shocks are the key to attaining optimum ride quality and getting that desired comfort with the 3/4 & 1-ton working capability and feature robust construction that sets them apart from standard ICON 2.0 Aluminum Series shocks. The included ICON billet aluminum upper control arm kit is designed to improve overall performance with corrected front-end geometry, increased on-vehicle camber and caster adjustment, improved suspension component clearance, and when paired with the extended travel front shocks, increases wheel travel over the OEM configuration to maximize suspension performance. Additionally, replacing the OE ball joint with the serviceable and rebuildable ICON Delta Joint Pro HD allows for full bump and droop travel of the front suspension while eliminating bind. The included torsion keys install onto the factory torsion bars and allow for 2-3.5” of front lift height adjustment to allow for a level stance and larger, more aggressive wheel and tire fitment. While driving the construction site or trails to your favorite dirt bike location, ICON wants you to get there in comfort, just like your drive to work.
Key Features
- Adjustable for 2-3.5” of front lift height over stock
- Vehicle specific tuned 2.0 HD Series front and rear shocks with internal reservoirs for superior shock damping and control
- Improved ride quality over stock with no change in towing capacity
- Billet aluminum Delta Joint Pro HD UCAs allow for additional caster/camber adjustment
- Forged steel torsion keys
- Front wheel travel increase of approximately 3" over stock
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant hard anodized aluminum shock bodies
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103436364 |
| Proxy Number | 78361 |
| Shipping Width | 15 in |
| Shipping Length | 16 in |
| Shipping Depth | 6 in |
| Shipping Weight | 56 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.5" Backspace / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.5" Backspace / 12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #3: Will not fit Cab & Chassis models
- APPLICATION NOTE #11: Chevrolet Silverado 2500 ZR2 and GMC Sierra 2500 AT4X will have front lift height range of .5-2" over stock
- APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #294: Included rear shocks are compatible with 0-1.5" of rear lift over stock
