ICON 2005-07 Ford F250/F350, 7" Lift, Stage 4 Suspension System
SKU: K67103
$6,207.61
On backorder - will ship upon availability
Overview

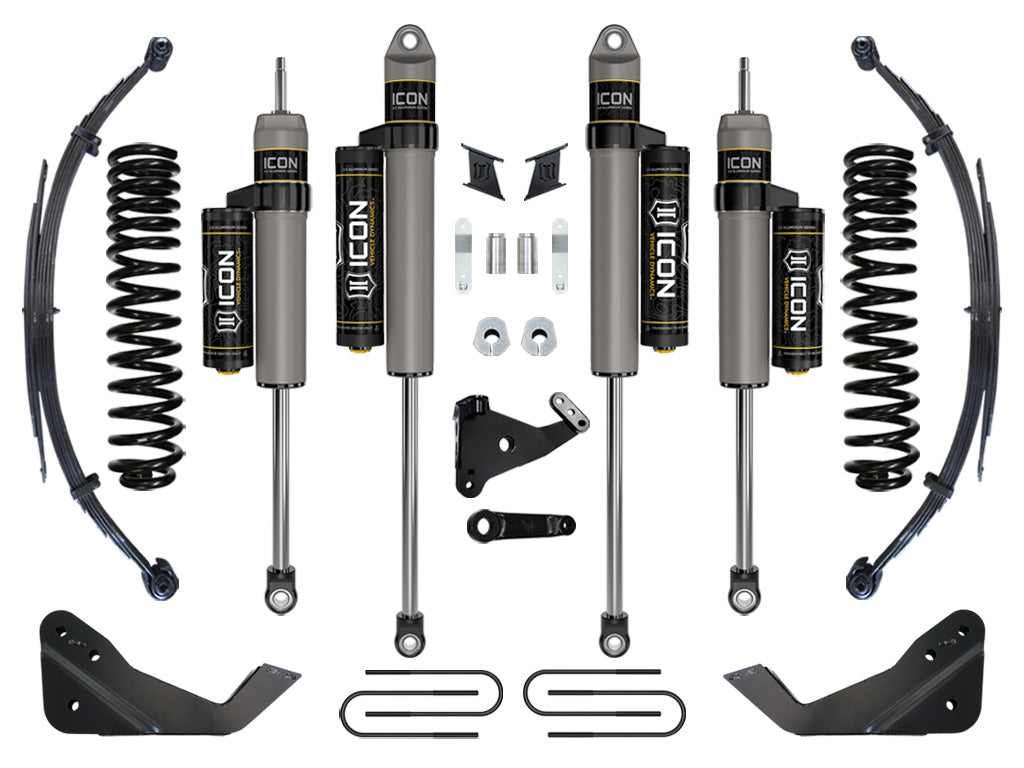

ICON’s 7” Suspension System for the 2005-2007 Ford Super Duty offers unparalleled performance and ride quality while giving the vehicle clearance for 38” tall tires. This Stage 4 system takes performance and ride quality to a whole new level. The Stage 4 system comes complete with ICON 2.5 Aluminum Series piggyback shocks, Dual-Rate Coil Springs, Drop Pitman Arm, Pan Rod Bracket, Brake Line Brackets, Radius Arm Drop Down Brackets, ICON's progressive 5" rear leaf springs, and U-bolts.
Read More
Key Features
- 50% increase in wheel travel
- Less body-roll than stock truck
- State of the art dual-rate coil spring
- Lifetime guarantee that coil springs won’t sag
- Clears 37" Tall Tires
- No change in towing capacity
- No driveshaft modifications needed
- 100% Bolt-on system - No drilling, cutting or welding necessary for install
- Vehicle Specific tuned 2.5 Aluminum Series Piggyback Reservoir shocks for incredible ride quality
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103418872 |
| Proxy Number | 67103 |
| Shipping Width | 48.00 in |
| Shipping Length | 48.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 428.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #21: Not Applicable On Vehicles Equipped With A Manual Transmission
- APPLICATION NOTE #28: Pinch Weld On ‘05-’10 Superduty Radius Arms May Come In Contact With Radius Arm Drop Bracket Hardware
- APPLICATION NOTE #29: 7” Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #57: Retains Factory Block For Truck To Sit Level With Front Of Truck
- Ships in multiple boxes
System Components
- 67010 (qty: 1) | 05-07 FSD FRONT 7" BOX KIT
- 67015 (qty: 1) | 05-25 FSD FRONT 7" DUAL RATE SPRING KIT
- 62530 (qty: 1) | 05-23 FORD F250/F350 SUPER DUTY 2.3 DEG ALIGNMENT CAM KIT
- 64040 (qty: 1) | 05-10 FSD RADIUS ARM DROP KIT
- 138508 (qty: 2) | 99-07 FSD 5" REAR LEAF SPRING PACK
- 37003 (qty: 1) | 99-10 FSD REAR 15" U-BOLT KIT
- 67720P (qty: 1) | 05-25 FSD 4WD 7" FRONT 2.5 VS PB PAIR
- 37701P (qty: 1) | 99-25 FSD 3-6" REAR 2.5 VS PB PAIR
