ICON 2017-2022 Ford F250/F350, 2.5-3" Lift, Stage 6 Coilover Conversion System
SKU: K63146
$8,929.43
On backorder - will ship upon availability
RECOMMENDED ADD-ONS:
+ $20.66
Overview
ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2022 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.
This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
Read More
This Stage 6 system sees the inclusion of the ICON Vehicle Dynamics Ford Super Duty Radius Arm System that feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
Key Features
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers provide 2.5-3" or 3.25-3.75" of lift, depending on year model of truck
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Corrosion resistant anodized aluminum shock bodies on rear and secondary front shocks
- Eibach coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
- Fabricated radius arms offer on vehicle caster adjustment, increased strength, and improved tire clearance at steering lock
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103418469 |
| Proxy Number | 63146 |
| Shipping Width | 12.00 in |
| Shipping Length | 27.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 257.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #3: Will not fit F-350/F-450 Cab & Chassis models
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- TECH NOTE: 2017-2019 Super Duty models will have front lift height range of 2.5-3" over stock
- TECH NOTE: 2020-2022 Super Duty models without Tremor package will have front lift height range of 3.25-3.75" over stock
- TECH NOTE: 2020-2022 Super Duty models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock
- TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
- TECH NOTE: Included rear shocks are compatible with 0-3" of rear lift over stock

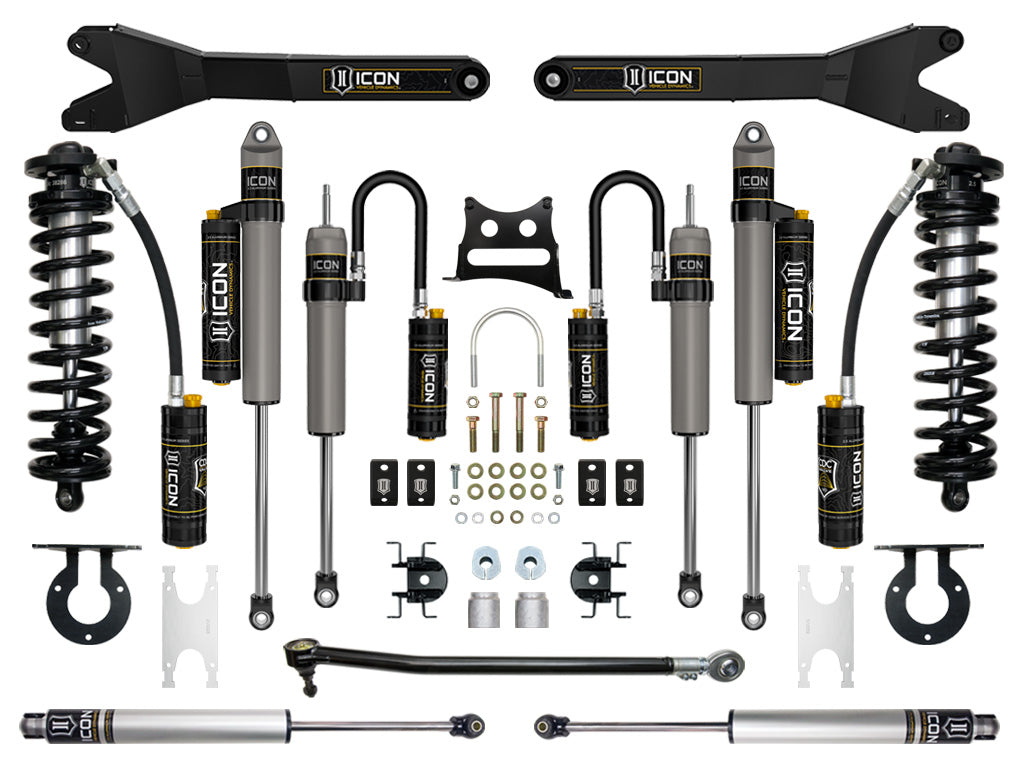

System Components
- 61720C (qty: 1) | 05-23 F250/F350 4WD 2.5-3" 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT W/ CAMS
- 64038 (qty: 1) | 17-25 FSD ADJ TRACKBAR KIT
- 64041 (qty: 1) | 05-22 FSD RADIUS ARM SYSTEM
- 65000 (qty: 1) | 05-22 FSD DUAL STABILIZER KIT
- 36511 (qty: 2) | 99-25 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR
- 611003 (qty: 1) | 2.5 RESI DOUBLER MOUNT 7.5" KIT
- 67800CP (qty: 1) | 05-25 FSD 4WD 0-2.5" FRONT 2.5 VS RR CDCV PAIR
- 37705CP (qty: 1) | 99-25 FSD 0-3" REAR 2.5 VS PB CDCV PAIR
