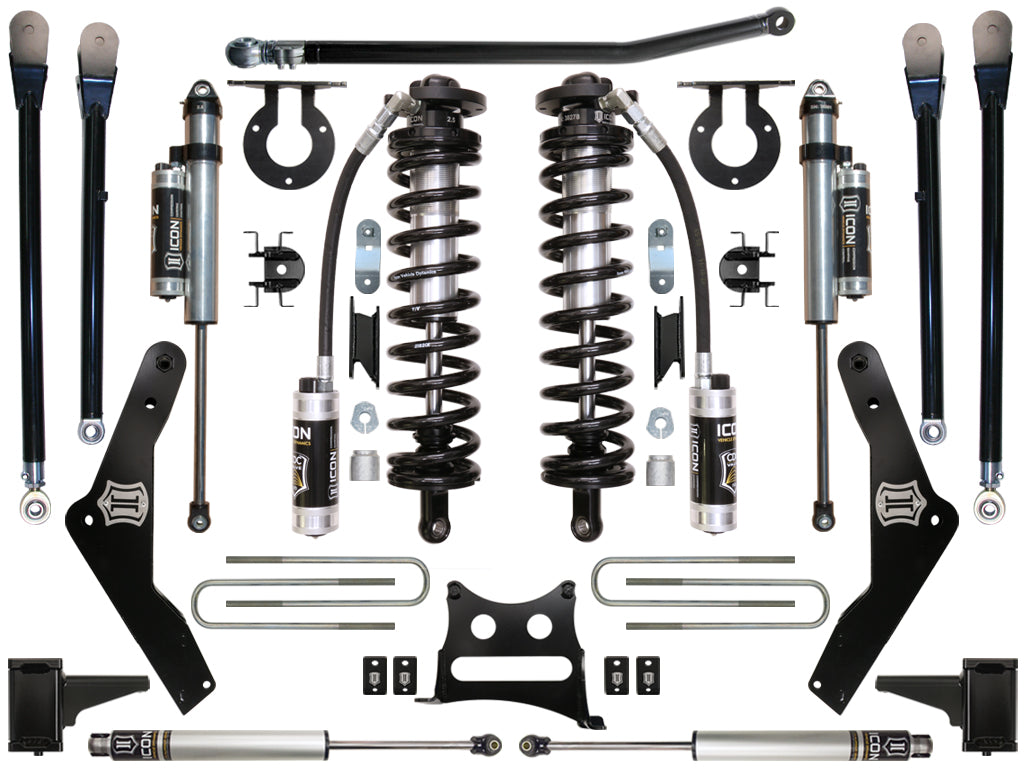

ICON 2011-2016 Ford F250/F350, 4-5.5" Lift, Stage 5 Coilover Conversion System
SKU: K63135
$8,268.15
On backorder - will ship upon availability
Overview
Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5” Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.
Read More
Key Features
- Eibach coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers (4-5.5")
- Increased wheel travel and ride quality over stock
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103418391 |
| Proxy Number | 63135 |
| Shipping Width | 13.00 in |
| Shipping Length | 31.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 303.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
- APPLICATION NOTE #94: Wide Steer Equipped Trucks Require Stabilizer Part Number 66515 Qty 2
- Ships in multiple boxes
System Components
- 64050 (qty: 1) | 08-22 FSD FRONT 4.5" BOX KIT
- 61721C (qty: 1) | 05-25 FSD 4WD 4-5.5" 2.5 VS RR CDCV BOLT IN CO CONVERSION KIT
- 64035 (qty: 1) | 05-16 FSD ADJ TRACK BAR W/FK ROD END
- 164501 (qty: 1) | 05-22 FSD FRONT UPPER LINKS
- 164502 (qty: 1) | 05-25 FSD FRONT LOWER LINKS
- 164503 (qty: 1) | 11-16 FSD 4 LINK FRAME BRACKET KIT
- 65000 (qty: 1) | 05-22 FSD DUAL STABILIZER KIT
- 36511 (qty: 2) | 99-25 FSD 4WD STABILIZER (DUAL OPPOSING) 2.0 VS IR
- 195275 (qty: 1) | 99-25 FSD 5" BLOCK KIT
- 67002 (qty: 1) | 11-25 FSD REAR 17" U-BOLT KIT
- 37701CP (qty: 1) | 99-25 FSD 3-6" REAR 2.5 VS PB CDCV PAIR
