ICON 2017-2022 Ford F-250/F-350 Super Duty 4WD, Ultimate Front End Kit, Stage 5
SKU: K6205
$2,434.90
This item is backordered and will ship upon availability.
RECOMMENDED ADD-ONS:
+ $20.66
Overview
The ICON Vehicle Dynamics Ultimate Front End Kits are designed to improve the steering feel, vehicle control, and overall drivability of your vehicle by replacing and upgrading critical worn OE components. Partnering with our friends at Dynatrac, ICON is happy to pair our suspension components with Dynatrac HD BallJoints to provide a complete front-end suspension solution to solve common steering problems that can lead to loose steering feel, decreased stability, erratic tracking down the road, uneven tire wear, and even death-wobble.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1

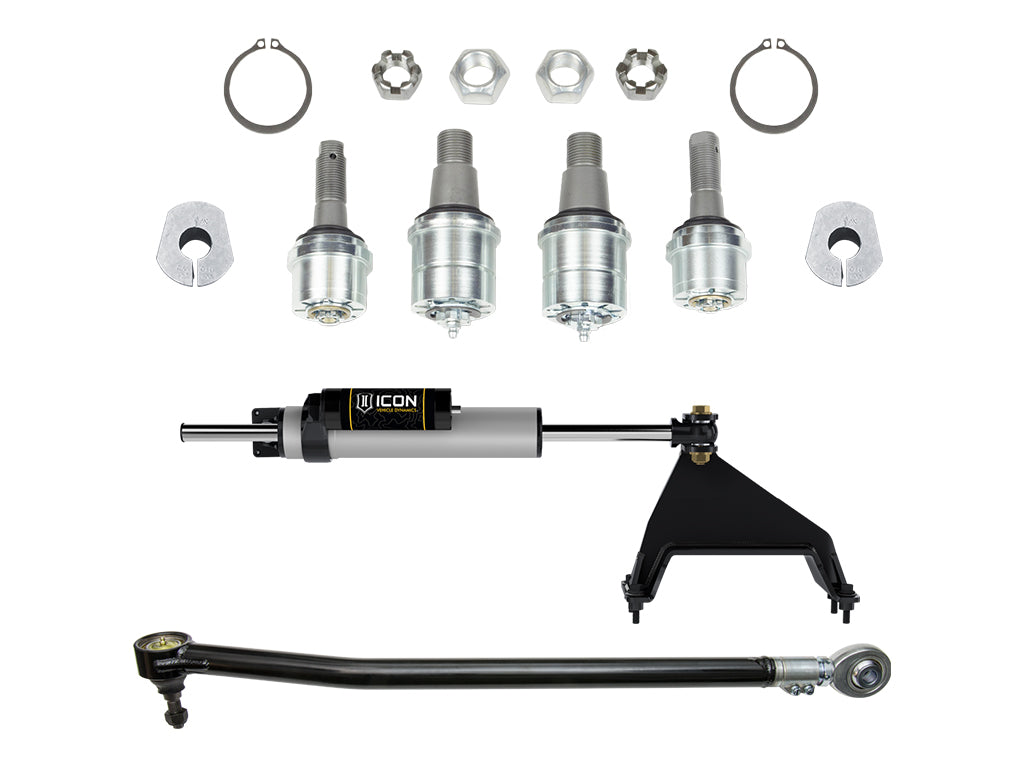

Key Features
- Full set of genuine Dynatrac front upper and lower ball joints
- Improves steering feel and vehicle control
- CNC machined, high-strength components
- Heat-treated, high-strength billet bodies with chromoly stems
- Heat-treated, precision-ground stainless-steel ball
- Sealed, greaseable design and PTFE coated wear points ensure long service life
- On-vehicle rebuildable design
- Adjustable track bar helps to free up bind during front suspension travel and articulation
- Heavy Duty PTFE-lined FK Rod End for maximum articulation and minimal deflection
- On-vehicle adjustable track bar for precise track alignment using ICON’s double adjuster
- Greaseable and replaceable OE style track bar ball joint
- CNC machined and bent 1.625" X .250" wall 1026 DOM tubing

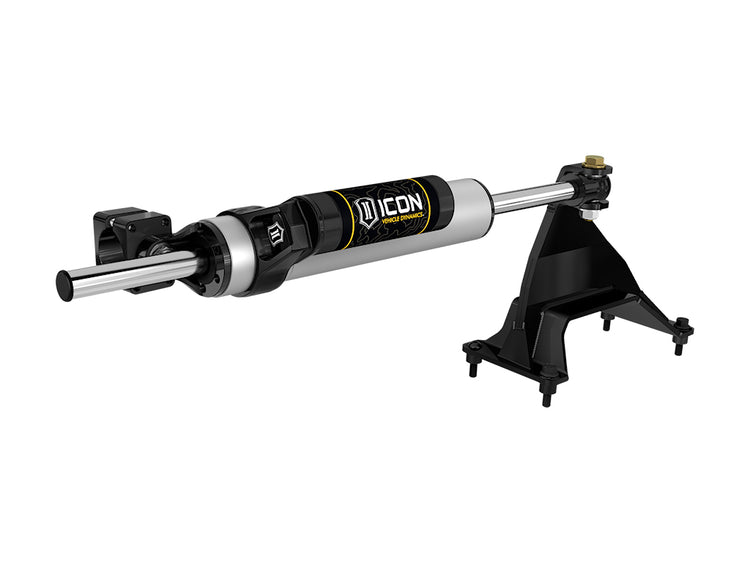

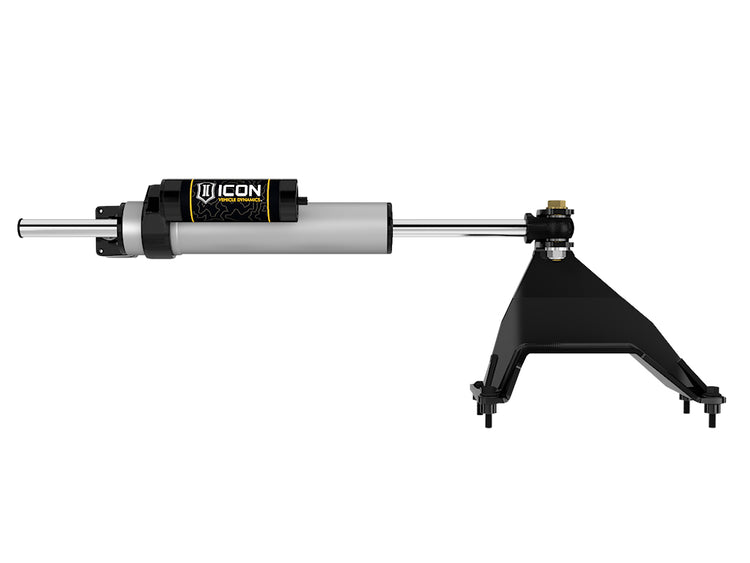

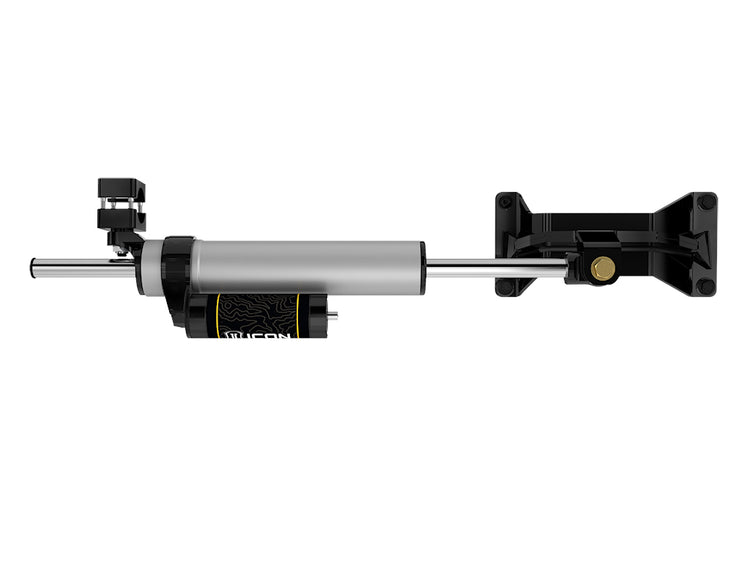

- Through shaft steering stabilizer design eliminates the push/pull sensation associated with traditional stabilizers
- Provides symmetrical steering feel throughout input range
- Drastically increased steering damping over stock unit
- Offers increased wheel travel compared to ICON's dual steering stabilizer kit
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103429755 |
| Proxy Number | 6205 |
| Shipping Width | 12.00 in |
| Shipping Length | 27.00 in |
| Shipping Depth | 6.00 in |
| Shipping Weight | 55.0000 LB |
Technical Notes
- TECH NOTE: Fits 2017-2022 Ford F-250/F-350 4WD
- TECH NOTE: Alignment cams are optimized for vehicles with 2-3" of front lift. Not recommended for stock height vehicles.
- TECH NOTE: Will not fit axles equipped with RCV axle shafts
- TECH NOTE: Steering stabilizer bracket mounts over stock front differential cover, not compatible with most aftermarket covers.
- TECH NOTE: Not compatible with aftermarket tie rods
- TECH NOTE: ICON track bar bracket part # 64039 is also recommended for 2008-2022 models to correct bump steer geometry
