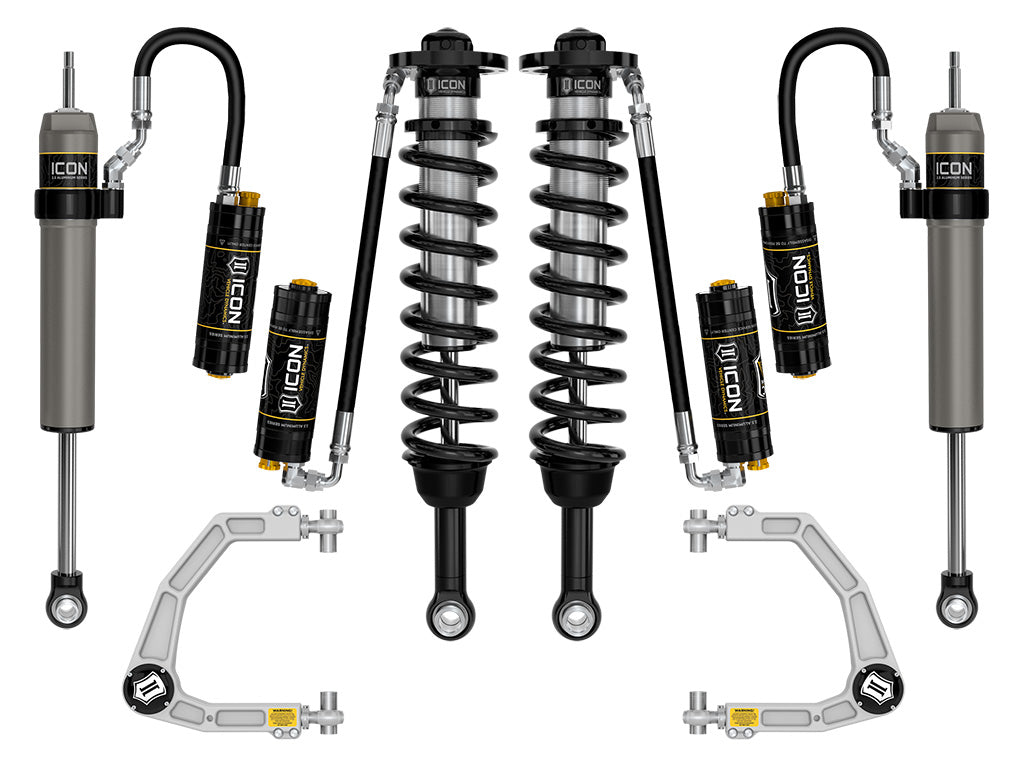

ICON 2022-2023 Toyota Land Cruiser 300 Series, 1-3" Lift, Stage 3 Suspension System, Billet
SKU: K53263
$5,439.64
This item is backordered and will ship upon availability.
RECOMMENDED ADD-ONS:
Overview
The 300 Series Toyota Land Cruiser is a luxurious vehicle packed with “all the bells and whistles”, but underneath all the sophistication it is still a very capable vehicle that sees use both on and off-road worldwide. While the 300 Series has exceptional ride characteristics in stock form, the suspension needs a serious upgrade if the vehicle is to serve any measurable amount of time in the dirt. ICON Vehicle Dynamics has addressed this need for a comprehensive suspension solution and developed several suspension systems that drastically increase the overall ability of the 2022-2023 Toyota Land Cruiser 300 Series.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
- Bolt-on design means no cutting or welding necessary for install
- Increased wheel travel and ride quality over stock
- Improved vehicle dynamics and decreased body roll

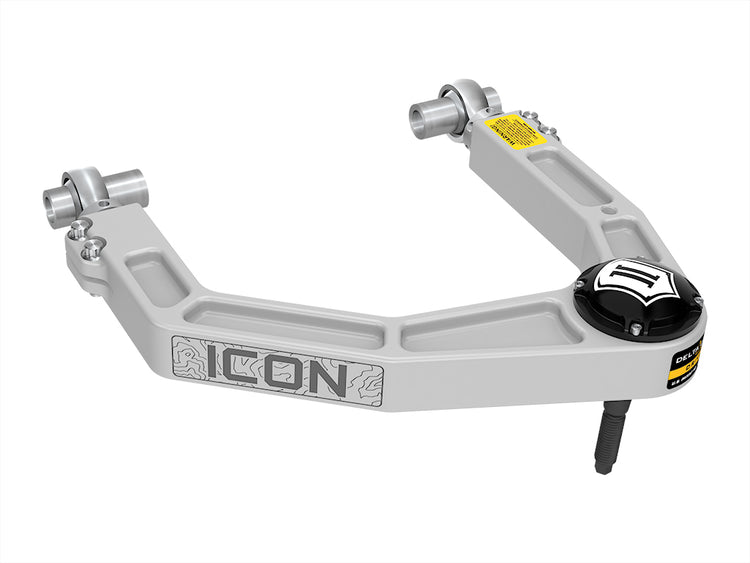

- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Height adjustable coilovers provide 1-3" of front lift height
- ICON engineered front coilover springs
- Vehicle-specific tuned front and rear shocks provide superior damping and control
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts

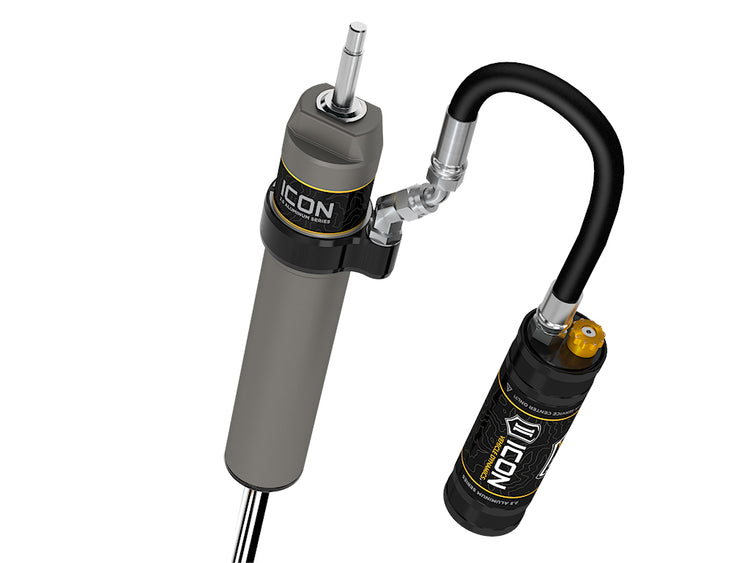

- 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Remote reservoirs improve heat dissipation to reduce shock fade during prolonged use
- All shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Shocks are fully rebuildable and revalveable
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103423609 |
| Proxy Number | 53263 |
| Shipping Width | 13.00 in |
| Shipping Length | 31.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 103.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6.00” Backspace / 25mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
- APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
- TECH NOTE: Included rear shocks are compatible with 0-2" of rear lift over stock
