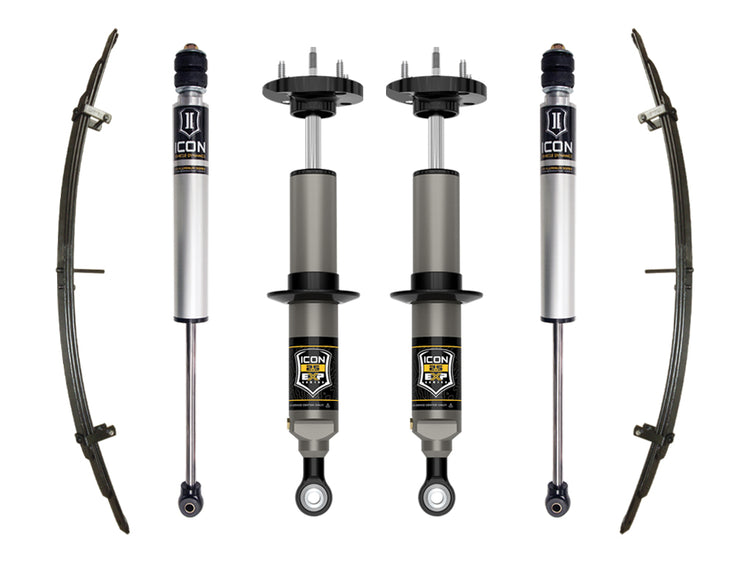

ICON 07-21 Toyota Tundra 0-2.25" Lift Stage 2, EXP Suspension System
SKU: K53227
$1,780.94
This item is backordered and will ship upon availability.
Overview

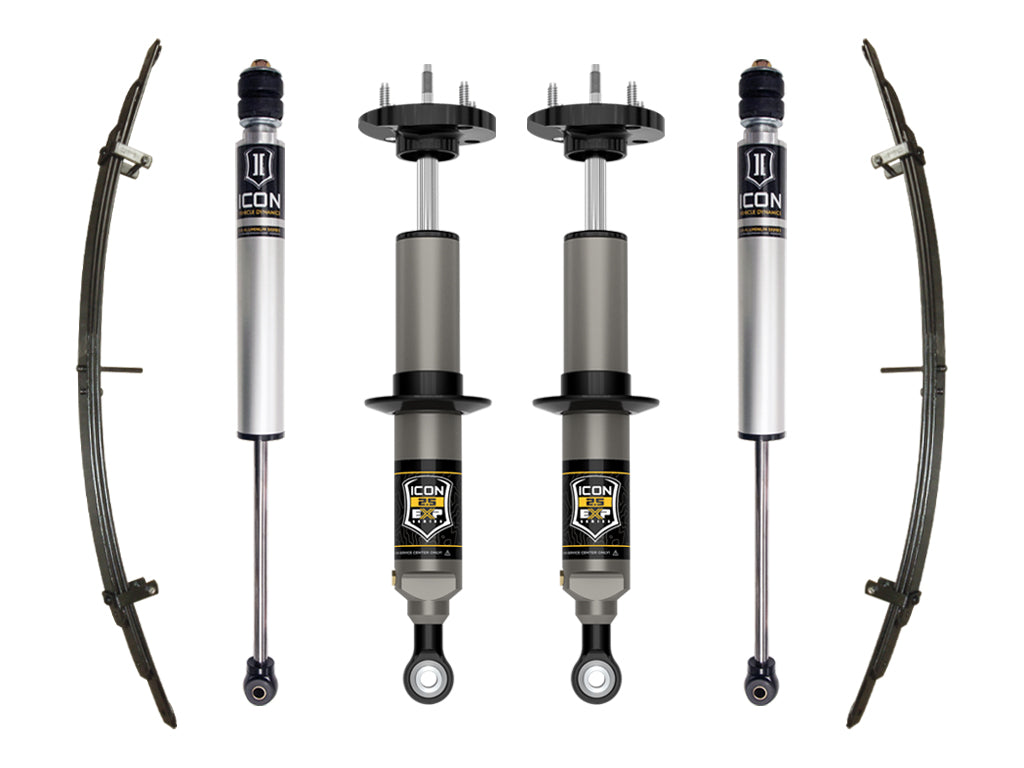

The ICON Vehicle Dynamics Stage 2 EXP suspension system for the 2007-2021 Toyota Tundra provides improved on- and off-road performance as well as front and rear-end lift and fitment of up to 35" tires. This system features the innovative new 2.5 EXP series coilover shocks along with our proven 2.0 Aluminum Series nitrogen charged monotube shocks for the rear.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
- Vehicle specific design for 2007-2021 Toyota Tundra
- 2.5 EXP Series front shocks with internal reservoirs utilize factory coil and coil hardware
- Adjustable front ride heights from 0-2.25” of front lift over stock with the use of snap ring
- Vehicle specific tuned for superior shock damping and control
- Rear leaf spring expansion pack provides 1.5” of rear lift and improved ride quality
- 2.0 Aluminum Series rear shocks provide balanced tune with coilovers and increased performance
- All ICON shock absorbers are fully rebuildable and re-tunable
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103421131 |
| Proxy Number | 53227 |
| Shipping Width | 6.00 in |
| Shipping Length | 32.00 in |
| Shipping Depth | 5.00 in |
| Shipping Weight | 105.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming may be required)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
- APPLICATION NOTE #122: Not Compatible With Rear Trd Sway Bar Kit
- APPLICATION NOTE #144: Not Compatible With Trd Pro
