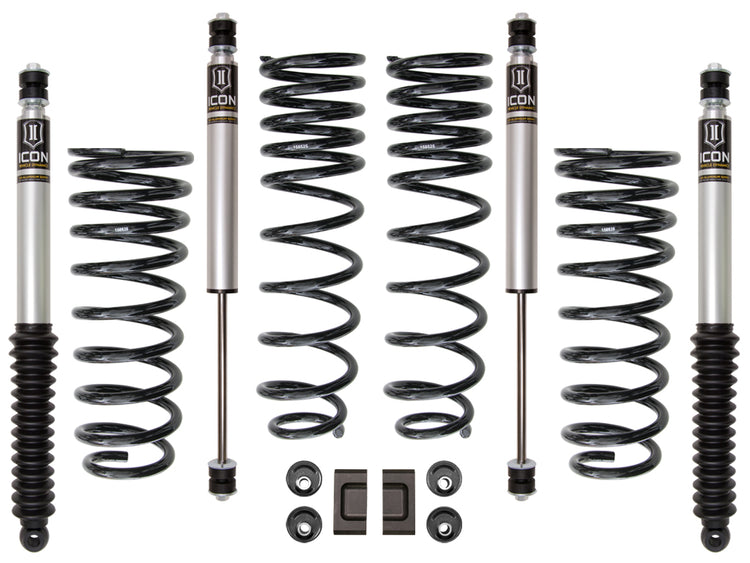

ICON 1991-97 Toyota 80 Series Land Cruiser, 3" Lift, Stage 1 Suspension System
SKU: K53091
$1,950.80
12 in stock
Overview
After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Key Features
- 3” lift height
- Approximately 40% increased front wheel travel over stock
- Approximately 35% increased rear wheel travel over stock
- ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
- Vehicle specific tuned 2.0 Aluminum Series front and rear shocks offer superior shock damping and control
- 2.0 aluminum body IFP shocks with 5/8" shaft
- Corrosion resistant anodized aluminum shock body
- 6061 aircraft grade aluminum CNC machined components
- 100% bolt-on design means no drilling, cutting or welding necessary for install
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103417189 |
| Proxy Number | 53091 |
| Shipping Width | 13.00 in |
| Shipping Length | 21.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 109.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: 17x8.5" with 4.63” Backspace
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #150: Shocks Are Fully Serviceable
- TECH NOTE: ICON’s advertised lift heights are based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
System Components
- 56509 (qty: 2) | 91-97 LAND CRUISER 80 0-3" FRONT 2.0 VS IR
- 53007 (qty: 1) | 91-97 LAND CRUISER FRONT SWAY BAR RELOCATION KIT
- 53008 (qty: 1) | 91-97 LAND CRUISER 4.6 DEG CASTER CORRECTION KIT
- 53009 (qty: 1) | 93-97 LAND CRUISER BRAKE LINE KIT +3"
- 53005 (qty: 1) | 91-97 LAND CRUISER 3" FRONT DUAL RATE SPRING KIT
- 53006 (qty: 1) | 91-97 LAND CRUISER 3" REAR DUAL RATE SPRING KIT
- 56510 (qty: 2) | 91-07 LAND CRUISER 80/100 0-3" REAR 2.0 VS IR
