ICON 2014-2026 Ram 2500 4WD, Diesel, Coil Spring Rear, 4.5" Lift, Stage 4 Suspension System
SKU: K214524
$5,784.21
$6,070.74
4% off
On backorder - will ship upon availability
RECOMMENDED ADD-ONS:
+ $20.66
Overview
ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 4 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.5 Aluminum Series remote reservoir shocks help deliver balanced performance front to rear, while CDC (Compression Damping Control) Valve technology allows the user to adjust compression characteristics of the shocks with the turn of a knob. These features make this Stage 4 system a huge upgrade for 2014-2026 Ram 2500 4WD trucks that are in need of a comfortable on-road ride, but also require the ability to be used to their full potential during spirited off-road driving.
Read More
Key Features
- ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
- Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
- Vehicle specific tuned front and rear 2.5 Aluminum Series remote reservoir shocks provide superior damping and ride quality
- Front and rear shock absorbers equipped with CDC Valves for 10 settings of compression damping adjustment, from soft to hard
- Increased wheel travel and suspension performance over stock with no change in towing capacity
- Adjustable front and rear track bars realign axles and improve strength
- PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
- 2.0 Aluminum Series steering stabilizer helps control larger tires with increased steering damping
- Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
- Fabricated rear coil spacers provide 2" of rear lift and allow use of stock rear coil springs
- Level stance from front to rear of vehicle
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103415642 |
| Proxy Number | 214524 |
| Shipping Width | 19.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 226.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #103: Vehicles Equipped With 2 Piece Driveshafts Require Carrier Shim Kit 214211
- APPLICATION NOTE #105: Not For Vehicles With Rear Factory Air Ride
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #607: 2019-2026 Ram 2500/3500 models require an aftermarket, high-angle front driveshaft to prevent bind. ICON part numbers 212511 or 212512 are recommended.
- APPLICATION NOTE #645: Provides 4.5" of front lift on most Ram 2500 submodels. Provides 2.5" of front lift on Ram 2500 Rebel.

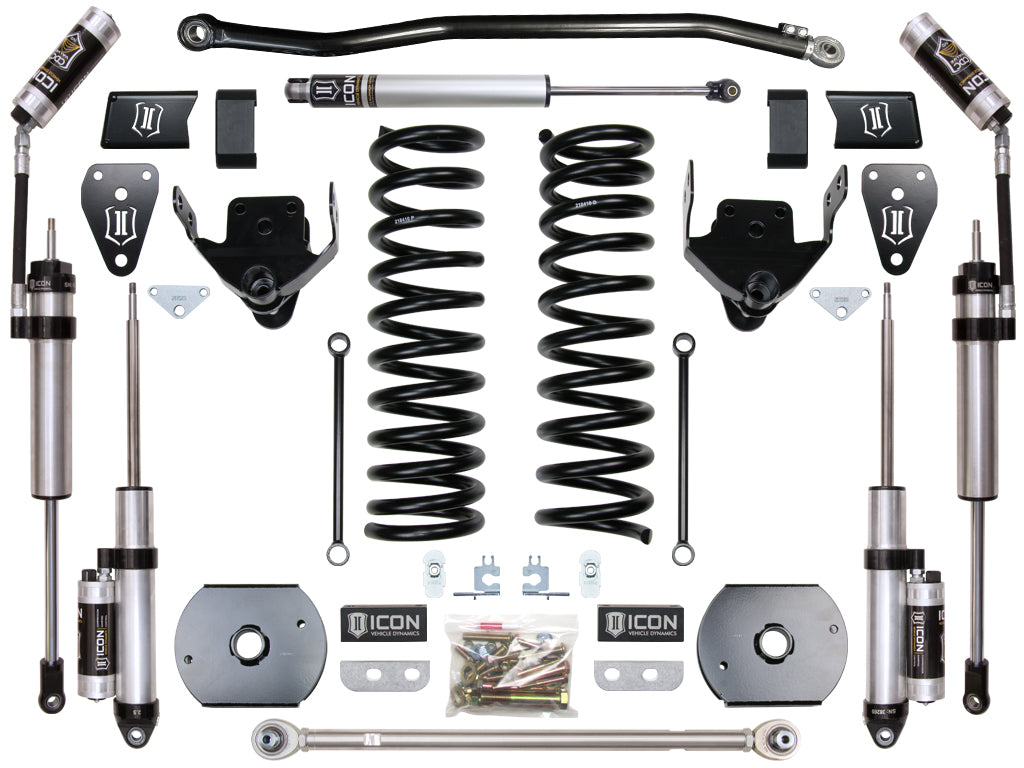

System Components
- 214201 (qty: 1) | 14-UP RAM 2500 4.5" FRONT DUAL RATE SPRING KIT
- 214214 (qty: 1) | 14-UP RAM 2500 FRONT ADJUSTABLE TRACK BAR KIT
- 214204 (qty: 1) | 14-UP RAM 2500 REAR ADJUSTABLE TRACK BAR KIT
- 214205 (qty: 1) | 14-18 RAM 2500 4.5" BOX KIT
- 216520 (qty: 1) | 09-UP RAM HD STEERING STABILIZER
- 217803CP (qty: 1) | 14-UP RAM 2500 4.5" FRONT 2.5 VS RR CDCV PAIR
- 217707CP (qty: 1) | 14-UP RAM 2500 2" STANDARD REAR 2.5 VS PB CDCV PAIR
