ICON 2014-2026 Ram 2500 4WD, Diesel, OEM Air Spring Rear, 4.5" Lift, Stage 1 Suspension System
SKU: K214521A
$2,928.66
$3,293.45
11% off
On backorder - will ship upon availability
RECOMMENDED ADD-ONS:
+ $20.66
Overview
ICON Vehicle Dynamics suspension systems for the 2014-2026 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 1 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.0 Aluminum Series shocks help deliver balanced performance front to rear, making it the perfect suspension system for any 2014-2026 Ram 2500 4WD that's tasked with daily driving, towing, and light off-road use. This suspension system has been designed specifically by ICON engineers to retain the functionality of factory rear air ride components and rear ride height adjustability.
Read More
Key Features
- ICON-engineered dual rate front coil springs deliver 4.5" of front lift and exceptional vehicle control over varying terrain
- Allows use of larger, more aggressive wheel tire combinations up to 37" diameter
- Vehicle specific tuned front and rear 2.0 Aluminum Series shocks provide superior damping and ride quality
- Increased wheel travel and suspension performance over stock with no change in towing capacity
- Adjustable front track bar realigns front axle and improves strength
- PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
- Precision CNC laser cut, fabricated radius arm drop brackets correct suspension geometry
- Fabricated rear air bag spacers and sensor linkages allow use of stock rear air springs and provide 3.75" of rear lift over stock
- Level stance from front to rear of vehicle
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103415581 |
| Proxy Number | 214521 |
| Shipping Width | 19.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 168.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Ships in Multiple Boxes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #90: May Not Be Compatible With Other Manufacturers Aftermarket Trackbars
- APPLICATION NOTE #103: Vehicles Equipped With 2 Piece Driveshafts Require Carrier Shim Kit 214211
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #607: 2019-2026 Ram 2500/3500 models require an aftermarket, high-angle front driveshaft to prevent bind. ICON part numbers 212511 or 212512 are recommended.
- APPLICATION NOTE #645: Provides 4.5" of front lift on most Ram 2500 submodels. Provides 2.5" of front lift on Ram 2500 Rebel.
- APPLICATION NOTE #646: Only fits models equipped with factory rear air suspension

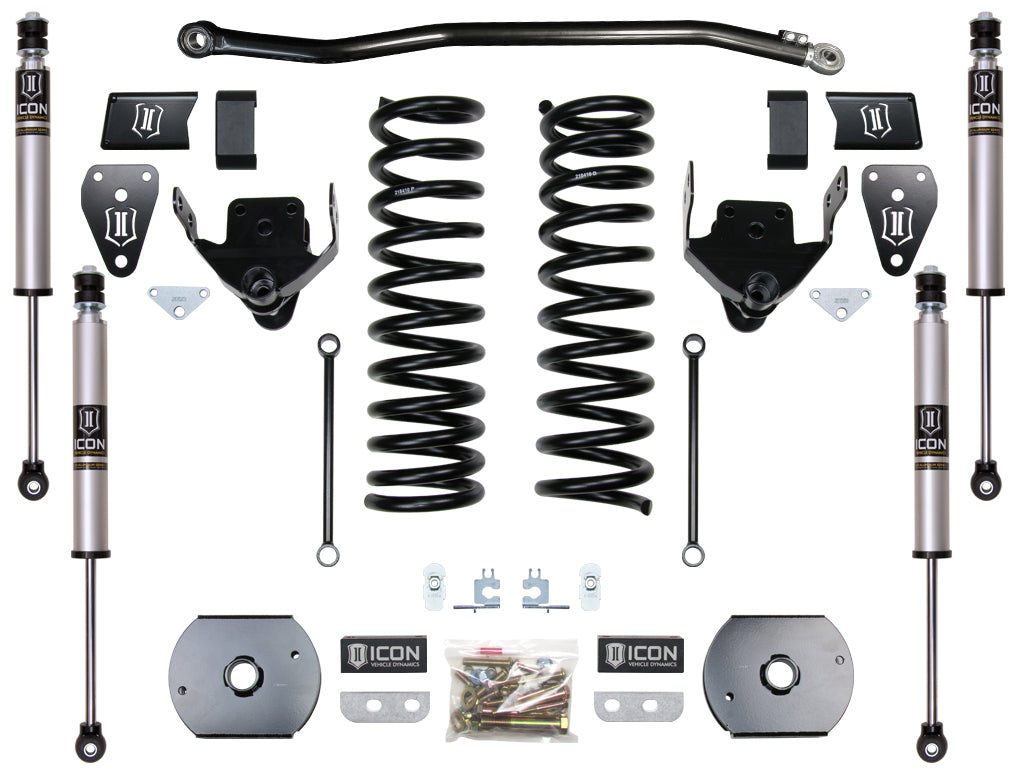

System Components
- 214201 (qty: 1) | 14-UP RAM 2500 4.5" FRONT DUAL RATE SPRING KIT
- 214214 (qty: 1) | 14-UP RAM 2500 FRONT ADJUSTABLE TRACK BAR KIT
- 214205 (qty: 1) | 14-18 RAM 2500 4.5" BOX KIT
- 214210 (qty: 1) | 14-UP RAM 2500 3.75" REAR AIR RIDE KIT
- 216530 (qty: 2) | 14-UP RAM HD 4.5" FRONT LIFT 2.0 VS IR
- 216529 (qty: 2) | 14-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.0 VS IR
