ICON 2014-18 Ram 2500 4WD, 4.5" Lift, Stage 1 Suspension System
SKU: K214521
$2,763.86
Low stock: 2 left
RECOMMENDED ADD-ONS:
+ $20.66
Overview
ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 1 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.0 Aluminum Series shocks help deliver balanced performance front to rear, making it the perfect suspension system for any 2014-UP Ram 2500 4WD that's tasked with daily driving, towing, and light off-road use.
Read More
Key Features
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Decreased body roll
- Level stance from front to rear of vehicle
- ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
- Vehicle specific tuned front and rear 2.0 Aluminum Series shocks provide superior damping and ride quality
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103415574 |
| Proxy Number | 214521 |
| Shipping Width | 19.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 166.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #6: Springs Are Rated For Diesel Engines Only
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #90: May Not Be Compatible With Other Manufacturers Aftermarket Trackbars
- APPLICATION NOTE #103: Vehicles Equipped With 2 Piece Driveshafts Require Carrier Shim Kit 214211
- APPLICATION NOTE #105: Not For Vehicles With Rear Factory Air Ride
- Ships in Multiple Boxes

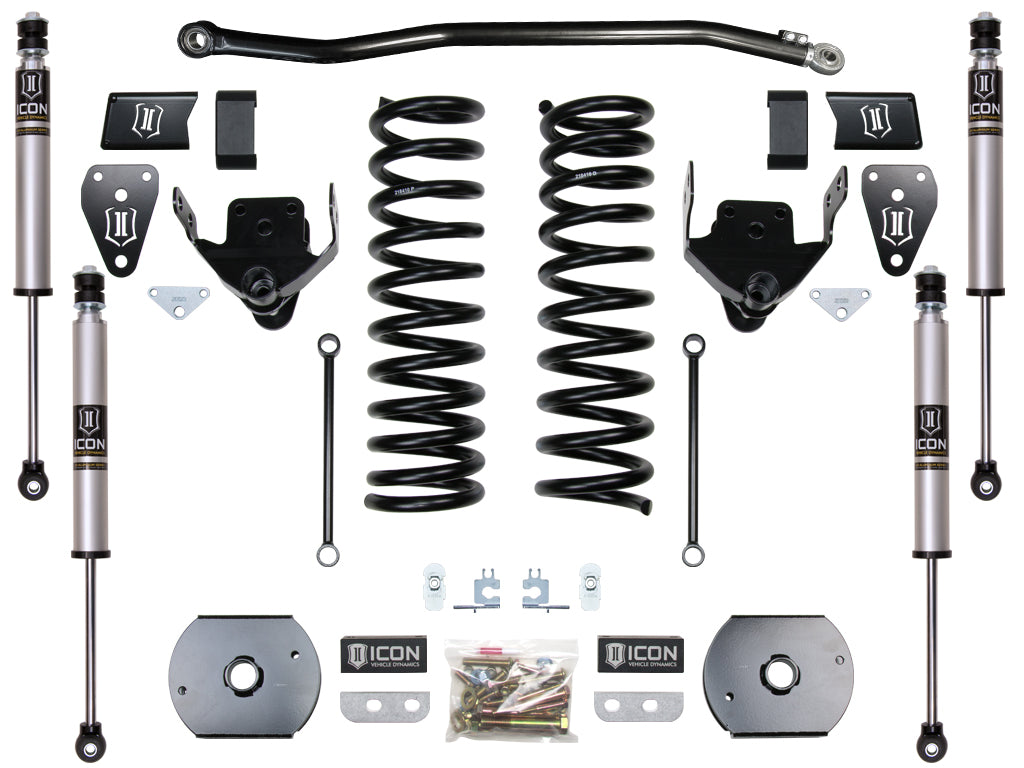

System Components
- 214201 (qty: 1) | 14-UP RAM 2500 4.5" FRONT DUAL RATE SPRING KIT
- 214214 (qty: 1) | 14-UP RAM 2500 FRONT ADJUSTABLE TRACK BAR KIT
- 214205 (qty: 1) | 14-UP RAM 2500 4.5" BOX KIT
- 216530 (qty: 2) | 14-UP RAM HD 4.5" FRONT LIFT 2.0 VS IR
- 216531 (qty: 2) | 14-UP RAM HD 2" REAR LIFT 2.0 VS IR
