ICON 2014-2026 Ram 2500 4WD, Diesel, Coil Spring Rear, 2.5" Lift, Stage 1 Suspension System
SKU: K212541
$1,894.49
20 in stock
Overview

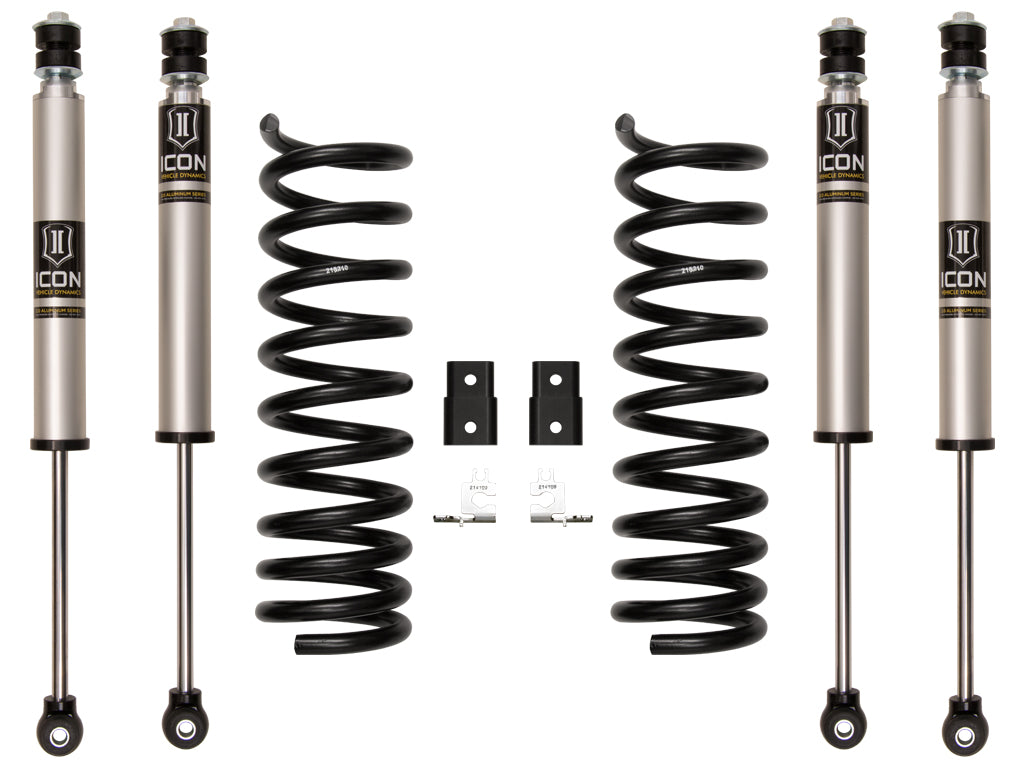

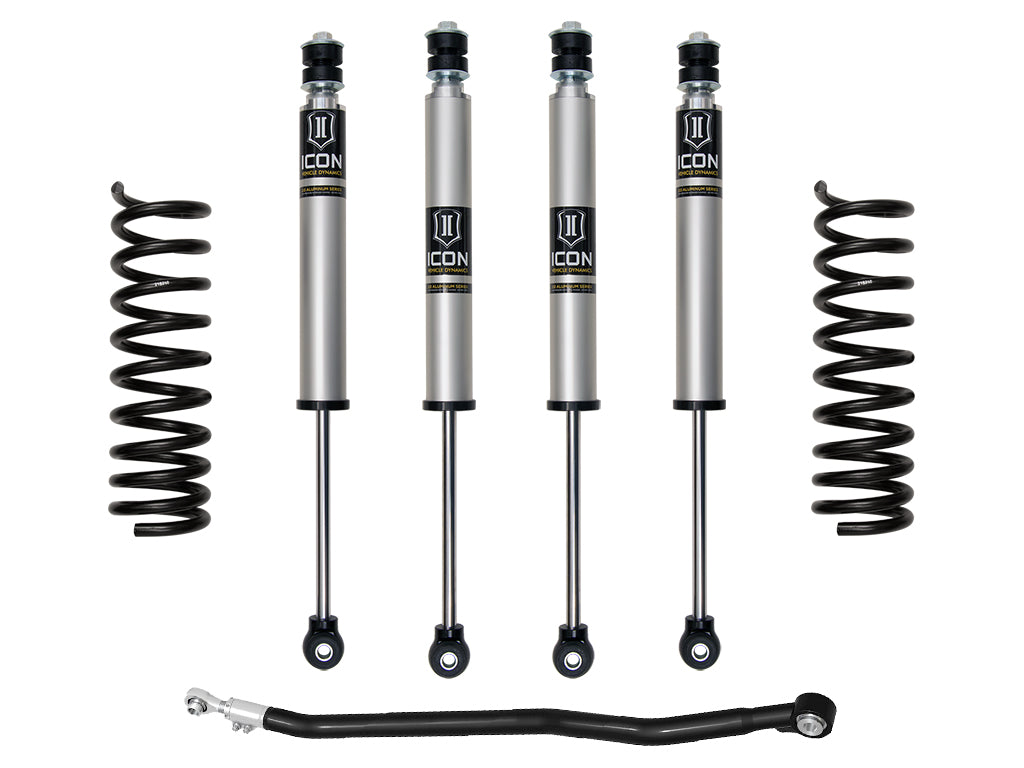

ICON's 2014-2026 Ram 2500 4WD 2.5” Stage 1 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, an adjustable front track bar, as well as 2.0 Aluminum Series front and rear shocks. This entry level system increases ride quality and performance both on and off road. The ICON stage 1 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. An adjustable front track bar with PTFE lined spherical bearings is used to not only improve rigidity over the flexible factory joints, but offer adjustability to center the front axle under the truck. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
Read More
Key Features
- ICON engineered dual rate coil springs with match tuned 2.0 Aluminum Series shocks
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Adjustable front track bar realigns front axle and improves strength
- PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
- Less body roll than stock
- No drive shaft modifications needed
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103436708 |
| Proxy Number | 212541 |
| Shipping Width | 14.00 in |
| Shipping Length | 22.00 in |
| Shipping Depth | 8.00 in |
| Shipping Weight | 84.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #6: Springs are rated for diesel engines only
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
- APPLICATION NOTE #105: Not for vehicles with rear factory air ride
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #564: Compatible with 0-1" rear lift on Ram 2500 equipped with rear coil springs
- APPLICATION NOTE #640: Provides 2.5" of front lift on most Ram 2500 submodels. Provides .5" of front lift on Ram 2500 Rebel.
System Components
- 214200 (qty: 1) | 14-UP RAM 2500 2.5" FRONT DUAL RATE SPRING KIT
- 214214 (qty: 1) | 14-26 RAM 2500/13-26 RAM 3500 FRONT ADJUSTABLE TRACK BAR KIT
- 216528 (qty: 2) | 14-UP RAM 2500 2.5" FRONT LIFT 2.0 VS IR
- 216529 (qty: 2) | 14-UP RAM 2500 0" COIL / 3" AIR RIDE REAR 2.0 VS IR
