ICON 2014-2026 Ram 2500 4WD, Diesel, Coil Spring Rear, 2.5" Lift, Stage 5 Suspension System, w/ Performance Rear Coil Springs
SKU: K212545P
$6,786.27
On backorder - will ship upon availability
Decrease quantity for ICON 2014-2026 Ram 2500 4WD, Diesel, Coil Spring Rear, 2.5" Lift, Stage 5 Suspension System, w/ Performance Rear Coil Springs
Increase quantity for ICON 2014-2026 Ram 2500 4WD, Diesel, Coil Spring Rear, 2.5" Lift, Stage 5 Suspension System, w/ Performance Rear Coil Springs
Overview

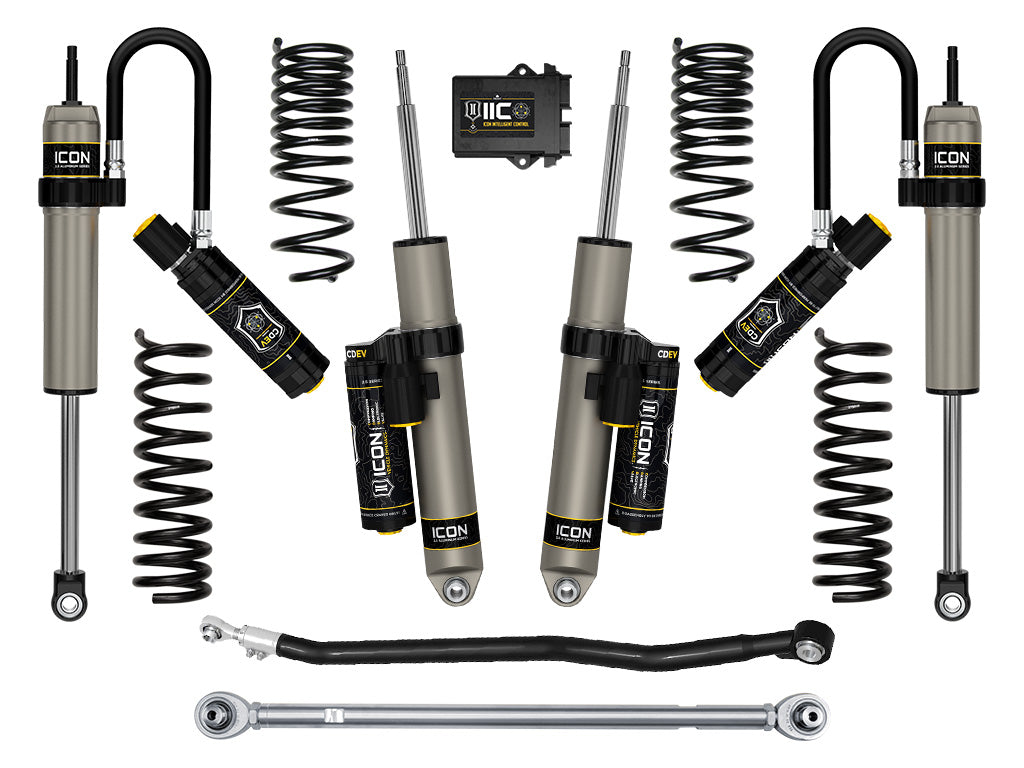

ICON's 2014-2026 Ram 2500 4WD 2.5” Stage 5 Suspension System is made up of dual rate front coil springs, necessary bracketry and hardware, front and rear adjustable track bars, as well as 2.5 Aluminum Series reservoir front and rear shocks with CDEV. This system improves ride quality and performance both on and off-road. The ICON stage 4 system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON 2.5" reservoir shocks with CDEV ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. An adjustable track bar with FK bearings is used to not only improve rigidity over the flexible factory joints, but offer adjustability to center the front axle under the truck. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.
This system includes triple-rate rear coil springs for a more compliant ride. The lighter initial rate of these performance rear coil springs helps the truck feel smoother and more controlled over washboard roads, small whoops, or similar terrain. The secondary ride rate allows the truck to maintain exceptional ride quality, while the aggressive third overload rate helps prevent bottom outs and provides payload support (at a reduced ride height). These performance systems were specifically developed for the 3/4 ton truck enthusiast who enjoys aggressive off-road adventures and does not tow or haul heavy loads.
Read More
This system includes triple-rate rear coil springs for a more compliant ride. The lighter initial rate of these performance rear coil springs helps the truck feel smoother and more controlled over washboard roads, small whoops, or similar terrain. The secondary ride rate allows the truck to maintain exceptional ride quality, while the aggressive third overload rate helps prevent bottom outs and provides payload support (at a reduced ride height). These performance systems were specifically developed for the 3/4 ton truck enthusiast who enjoys aggressive off-road adventures and does not tow or haul heavy loads.
Key Features
- ICON engineered dual rate front coil springs with match tuned 2.5 Aluminum Series remote reservoir shocks
- ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Adjustable front and rear track bars realign axles and improves strength
- PTFE lined spherical track bar bearings eliminate bushing deflection for improved handling characteristics
- Performance triple rate rear coil springs provide .5" of rear lift and more compliant ride quality
- 2.5 Aluminum Series piggyback reservoir rear shocks compliment rear coils in both length and damping tune for increased rear wheel travel and suspension performance
- Less body roll than stock
- No drive shaft modifications needed
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103436821 |
| Shipping Width | 19.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 233.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” BS / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" BS / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" BS / 12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #6: Springs are rated for diesel engines only
- APPLICATION NOTE #12: Helper air bags are recommended for hauling/towing heavy loads
- APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
- APPLICATION NOTE #99: Performance rear springs may cause reduced ride height while towing
- APPLICATION NOTE #105: Not for vehicles with rear factory air ride
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #198: An iOS operated device is required to run ICON Intelligent Control app
- APPLICATION NOTE #564: Compatible with 0-1" rear lift on Ram 2500 equipped with rear coil springs
- APPLICATION NOTE #640: Provides 2.5" of front lift on most Ram 2500 submodels. Provides .5" of front lift on Ram 2500 Rebel.
