ICON 2020-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, Front Upper, Billet Control Arm Kit, w/ Delta Joint Pro HD
SKU: 78586DJ
In stock
Overview

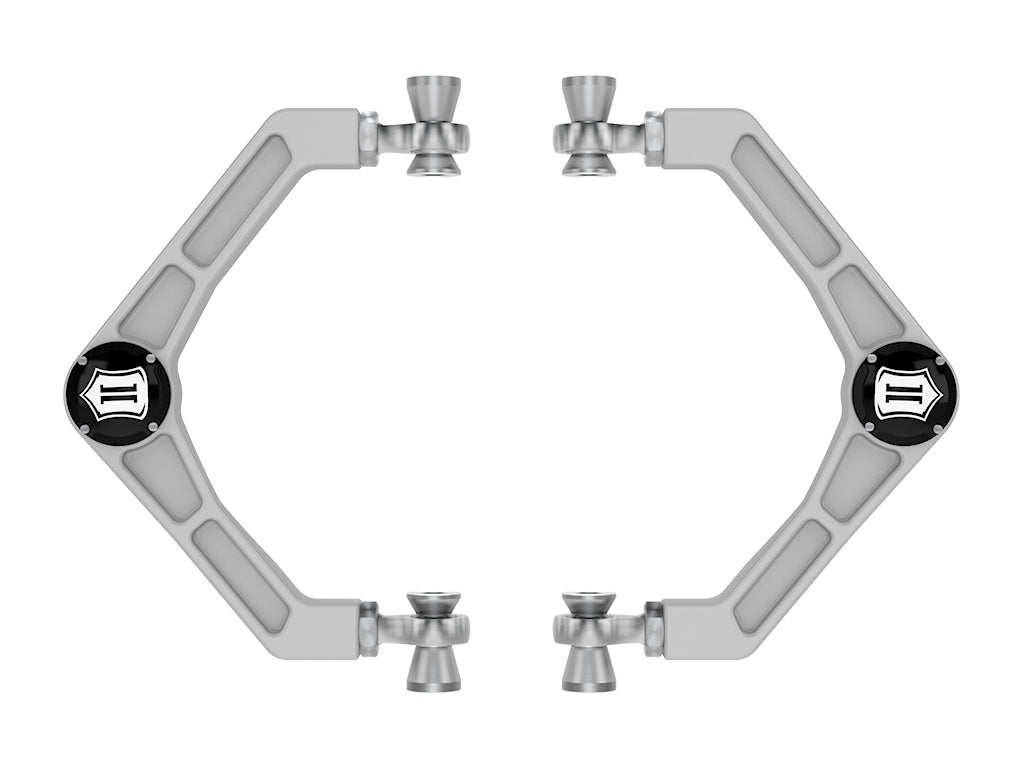

This ICON billet aluminum upper control arm kit is designed to improve the overall performance of the 2020-2026 Chevrolet Silverado 2500 HD/3500 HD and 2020-2026 GMC Sierra 2500 HD/3500 HD with corrected front-end geometry, increased camber and caster adjustment, and improved suspension component clearance. Constructed of CNC-machined 6061 billet aluminum utilizing a hybrid H-beam cross-section that is light-weight and resists bending forces better than tubular arms. Replacing the OE ball joint with the all-new, serviceable, and rebuildable ICON Delta Joint Pro HD allows for full bump and droop travel of the front suspension while eliminating bind. FK Rod End 3/4” Heim joints provide precise and smooth function throughout the range of travel, while ICON’s signature double adjuster sleeve allows for on-vehicle camber and caster adjustment. Included with all components and hardware necessary for a complete install, these billet UCAs are the perfect front-end upgrade for the 2020-2026 Chevrolet Silverado 2500 HD/3500 HD and 2020-2026 GMC Sierra 2500 HD/3500 HD.
Key Features
- CNC machined 6061 billet aluminum construction with satin anodized finish
- Corrects suspension geometry and allows for proper wheel alignment on trucks with up to 3.5” of lift
- Allows for precise adjustment of both caster and camber
- Delta Joint Pro HD is optimized for HD truck applications, featuring a slotted housing for significantly increased pull strength
- Delta Joint Pro HD allows maximum articulation without binding
- Delta Joint Pro HD is 100% serviceable and rebuildable
- FK Rod Ends at chassis pivots for strength and precision driving characteristics
- Built in O-ring sealed dust cover cap
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103436357 |
| Proxy Number | 78586 |
| Shipping Width | 15 in |
| Shipping Length | 16 in |
| Shipping Depth | 6 in |
| Shipping Weight | 25 LB |
Technical Notes
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels): ICON Alloys - 18x9 with 5.5” Backspace / 12mm Offset
- Recommended Aftermarket Wheels : ICON Alloys - 20x9 with 5.5” Backspace / 12mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #298: Compatible with 0-3.5" of front lift on most Chevrolet Silverado 2500/3500 HD and GMC Sierra 2500/3500 HD submodels. Compatible with 0-2" of front lift on Chevrolet Silverado 2500 ZR2 and GMC Sierra 2500 AT4X.
