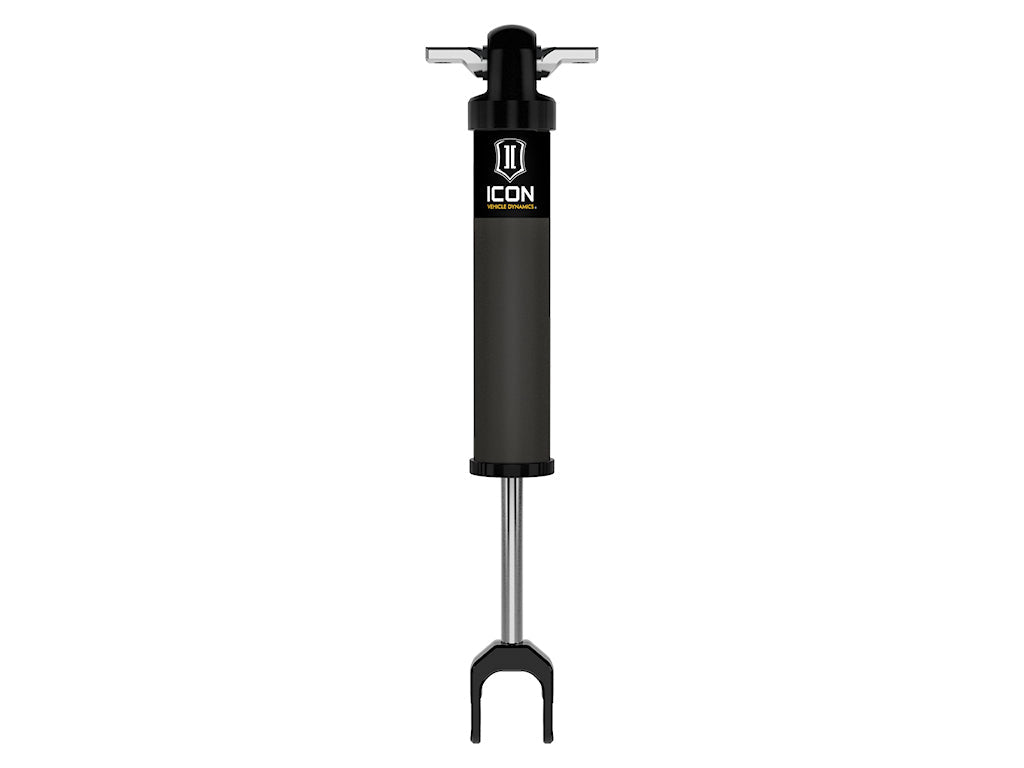

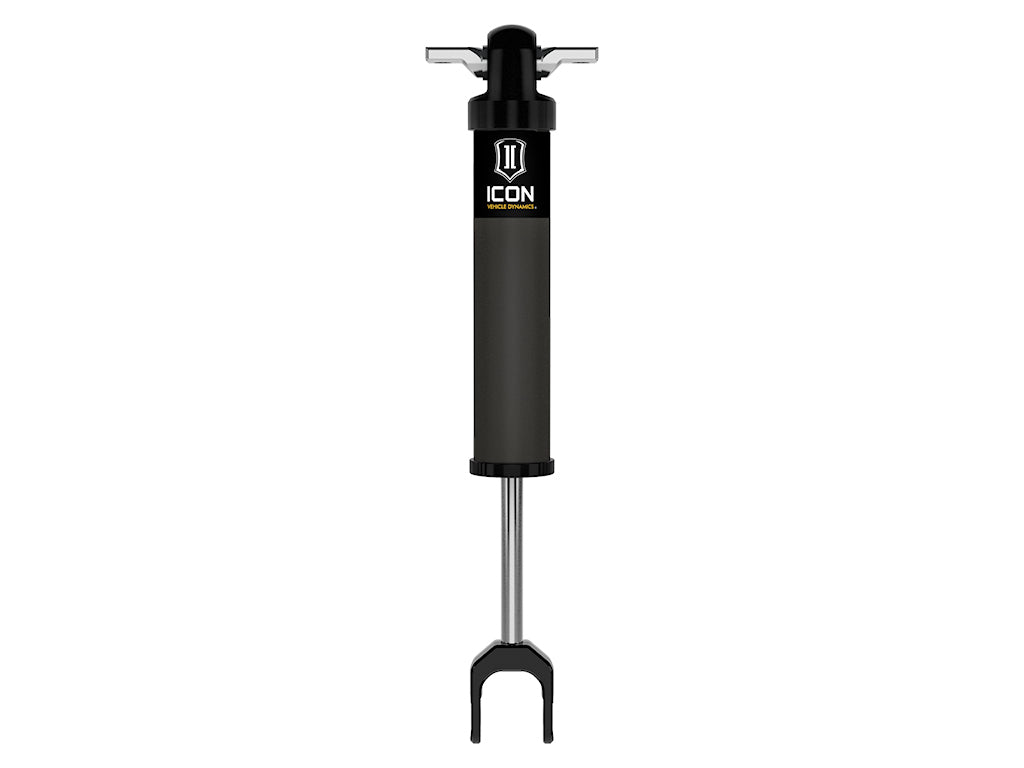

ICON 2011-2026 Chevrolet Silverado/GMC Sierra 2500/3500 HD, 0-3.5” Lift, Front, V.S. 2.0 HD Series Shock Absorber, Internal Reservoir
SKU: 76551
In stock
Overview
ICON Vehicle Specific (V.S.) 2.0 HD Series shock absorbers are the ultimate in cost-effective upgrades, specifically tailored by ICON engineers for heavy-duty applications. The V.S. 2.0 HD Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road ride quality and performance. ICON 2.0 HD shocks feature hard-anodized 6061 aluminum cylinders with increased wall thickness and taller DU bearings, significantly improving pull apart and side load strength compared to ICON 2.0 Aluminum Series shock absorbers. Press in, bonded rubber upper bushing/bar pin assembly provides factory like fitment and ease of install while also isolating road vibration. Forged aluminum lower mounting clevis maintains factory-like fitment and ensures maximum strength. Internal nitrogen reservoirs help provide consistent performance under hard use. Like all ICON shock absorbers, V.S. 2.0 HD Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Aluminum Series shocks to handle extra abuse and punishment your suspension will need to endure.
Key Features
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with internal reservoir
- Hard anodized 6061 aluminum body tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
- Increased cylinder wall thickness and DU bearing height compared to ICON 2.0 Aluminum Series shocks offers improved strength
- One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 5/8” chrome plated hardened steel shaft resists corrosion and pits
- 6061 aluminum rod end, top cap, and internals ensure strength and durability
- Press in, bonded rubber bushing/bar pin assembly damps road vibration and provides OE factory type fitment
- Forged aluminum lower mounting clevis ensures maximum strength
- Nitrile rubber top out bumper for noise free operation
- 100% rebuildable
- 100% revalveable
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103436197 |
| Proxy Number | 76551 |
| Shipping Width | 3 in |
| Shipping Length | 40 in |
| Shipping Depth | 3 in |
Technical Notes
- APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- APPLICATION NOTE #295: Shocks sold individually. A quantity of 2 are required per vehicle.
- APPLICATION NOTE #298: Compatible with 0-3.5" of front lift on most Chevrolet Silverado 2500/3500 HD and GMC Sierra 2500/3500 HD submodels. Compatible with 0-2" of front lift on Chevrolet Silverado 2500 ZR2 and GMC Sierra 2500 AT4X.
