ICON 2017-2025 Ford F-250/F-350 Super Duty, 4WD, Adjustable Track Bar Kit
SKU: 64038
$577.65
RECOMMENDED ADD-ONS:
+ $20.66
Overview

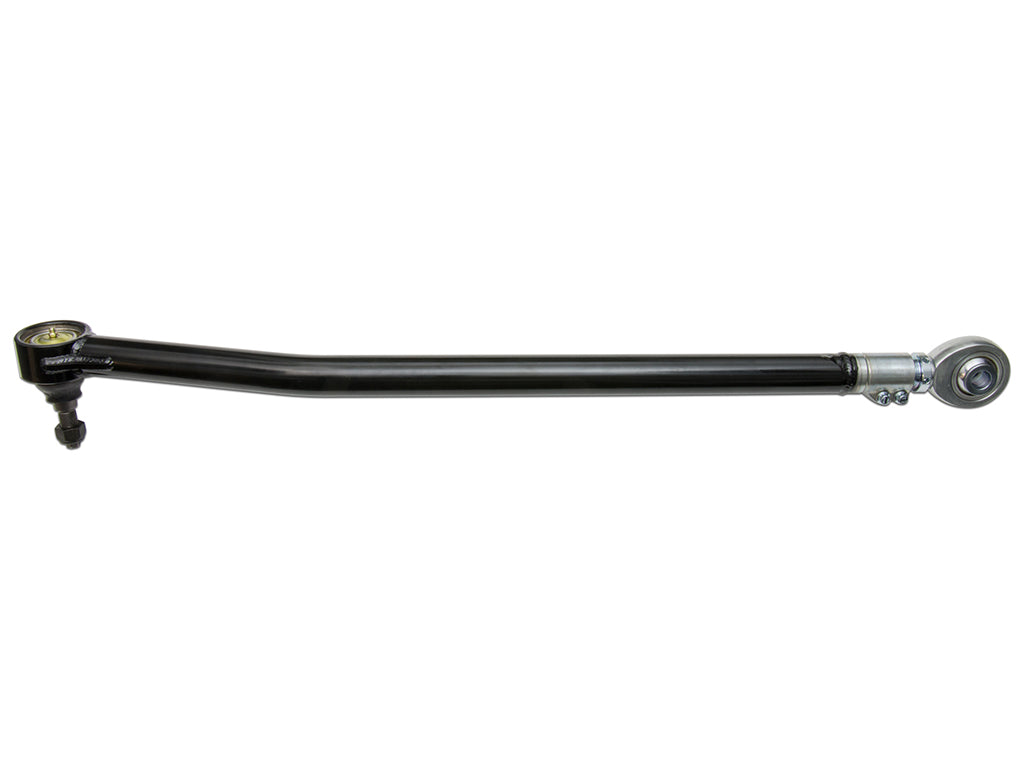

The ICON Adjustable Track Bar helps center the axle of your lifted 2017-2025 Ford F-250 and F-350 Super Duty and allow for increased suspension travel and articulation. A massive FK Rod End at one end, along with greaseable and replaceable OE style ball joint at the other end yields the best combination of maximum travel and articulation while also removing bushing deflection for improved handling characteristics. ICON’s exclusive rod end Double Adjuster Sleeve allows for fast, easy “on-vehicle” adjustment of track bar length without requiring removal or disassembly of the track bar. This allows for easy correction of axle location and dialing in precise tracking whenever adjustments are made to ride height. The track bar is made of CNC bent 1.625” x .250” wall 1026 DOM tubing with CNC machined threaded end and ball joint housing with a multi-stage black powder coat finish. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
- Helps to free up bind during front suspension travel and articulation
- Heavy Duty PTFE-lined FK Rod End for maximum articulation and minimal deflection
- On-vehicle adjustable for precise track alignment using ICON’s double adjuster
- Greaseable and replaceable OE style ball joint
- CNC machined and bent 1.625" X .250" wall 1026 DOM tubing
- Multi-stage black powder coat finish for corrosion resistance
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103405544 |
| Proxy Number | 64038 |
| Shipping Width | 4.00 in |
| Shipping Length | 40.00 in |
| Shipping Depth | 5.00 in |
| Shipping Weight | 21.0000 LB |
Technical Notes
- APPLICATION NOTE #1: Only fits 4WD models
- TECH NOTE: Compatible with 0-5.5" of front lift with OE track bar bracket
- TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry for 2.5-5.5" of front lift
- TECH NOTE: Front lift heights above 5.5" require appropriate track bar drop bracket
