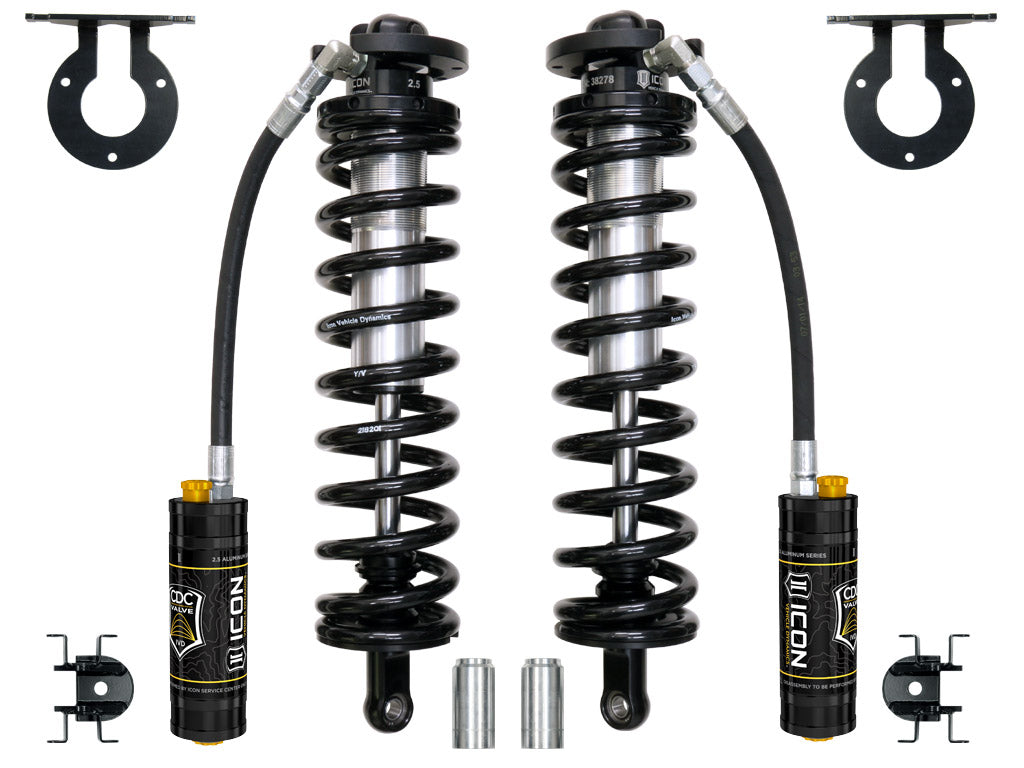

ICON 2005-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 2.5 Series Coilover Conversion Kit, Remote Reservoir w/ CDCV
SKU: 61721C
$2,750.56
Low stock: 4 left
Decrease quantity for ICON 2005-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 2.5 Series Coilover Conversion Kit, Remote Reservoir w/ CDCV
Increase quantity for ICON 2005-2025 Ford F-250/F-350 Super Duty 4WD, 4-5.5” Lift, Front, V.S. 2.5 Series Coilover Conversion Kit, Remote Reservoir w/ CDCV
RECOMMENDED ADD-ONS:
+ $53.36
Overview
ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2025 F-250 and F-350 Super Duty pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary. ICON's exclusive Compression Damping Control Valves ICON’s CDC (Compression Damping Control) Valve option adds to the adjustability of these coilover conversion kits, allowing the end-user to adjust the ride characteristics of the vehicle with the turn of a knob. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.
Read More
Key Features
- Bolt-in system fits in OE coil bucket location
- Ride height adjustable coilovers for 4-5.5” of front lift over stock
- Decreased body roll and improved on and off-road ride dynamics
- Vehicle-specific shock valving provides unparalleled ride quality and control
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- Shocks are fully rebuildable and revalveable
- Coilover conversion allows for addition of secondary shock
- Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
- ICON engineered coil springs guaranteed for life against sagging or breakage
- FK Rod End bearings for extended longevity and minimal deflection
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103405445 |
| Proxy Number | 61721 |
| Shipping Width | 13.00 in |
| Shipping Length | 31.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 70.0000 LB |
Technical Notes
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Tires (2005-2016 models): 35" x 12.50" (37" x 12.50" with fender trimming and modifications required)
- Recommended Aftermarket Tires (2017-2024 models): 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- APPLICATION NOTE #88: Removal of the coil centering cup in factory coil bucket required for installation
- APPLICATION NOTE #115: Lift heights based on 4WD Crew Cab diesel
- APPLICATION NOTE #120: Secondary shock options available, contact ICON for more details.
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- TECH NOTE: 2005-2019 Super Duty diesel models will have front lift height range of 4-5.5" over stock
- TECH NOTE: 2020-2022 Super Duty diesel models without Tremor package will have front lift height range of 4.75-6.25" over stock
- TECH NOTE: 2020-2022 Super Duty diesel models equipped with Tremor package will have front lift height range of 3.75-5.25" over stock
- TECH NOTE: 2023-2025 Super Duty diesel models without Tremor package will have front lift height range of 4-5.5" over stock
- TECH NOTE: 2023-2025 Super Duty diesel models equipped with Tremor package will have front lift height range of 3-4.5" over stock
- TECH NOTE: 2023-2025 Super Duty gas models without Tremor package will have front lift height range of 4.5-6" over stock
- TECH NOTE: 2023-2025 Super Duty gas models equipped with Tremor package will have front lift height range of 3.5-5" over stock
- TECH NOTE: If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
