ICON Coilover Bump Stop Spacer Kit, 7/8" Shaft, 3/8" Tall
SKU: 611074
$75.16
Overview

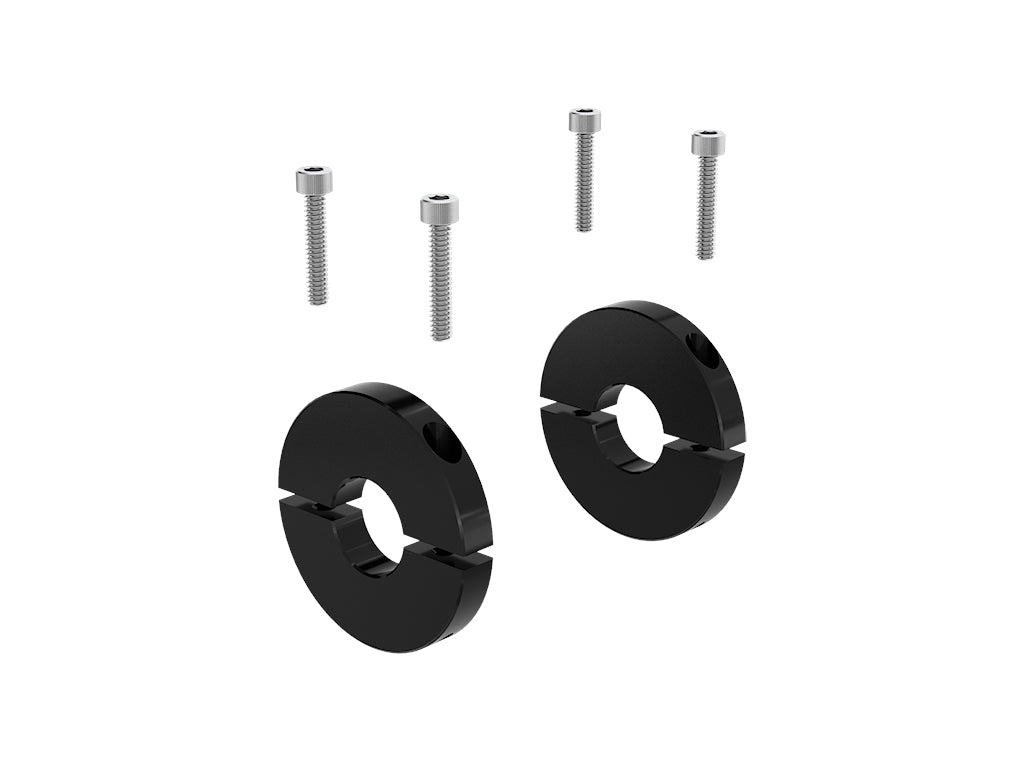

The ICON Vehicle Dynamics 3/8” Coilover Bump Stop Spacer Kit limits compression travel of any ICON Vehicle Dynamics coilover kit with 7/8" diameter shafts that includes an integrated foam shaft bump stop by .375”. This travel limitation can allow for larger tire fitment without rubbing at full compression or in certain cases allow for coilover adjustment past the maximum recommended setting without causing coil bind. CNC machined from 6061 aluminum and anodized black, these bump stop spacers not only match the ICON coilovers but will hold up well against corrosion over time.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Key Features
- Works on any ICON coilover kit with 7/8" diameter shafts and integrated foam shaft bump stops
- Limits up-travel by 3/8”
- Allows for larger tire fitment without rubbing
- 6061 aircraft grade aluminum CNC machined spacers
- Black anodized finish for corrosion resistance
- Includes all necessary hardware for installation
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103414195 |
| Proxy Number | 611074 |
| Shipping Width | 4.00 in |
| Shipping Length | 8.00 in |
| Shipping Depth | 1.00 in |
| Shipping Weight | 2.0000 LB |
Technical Notes
- TECH NOTE: Only compatible with ICON coilovers with integrated shaft bump stops. Will not work on vehicles with frame mounted bump stops.
