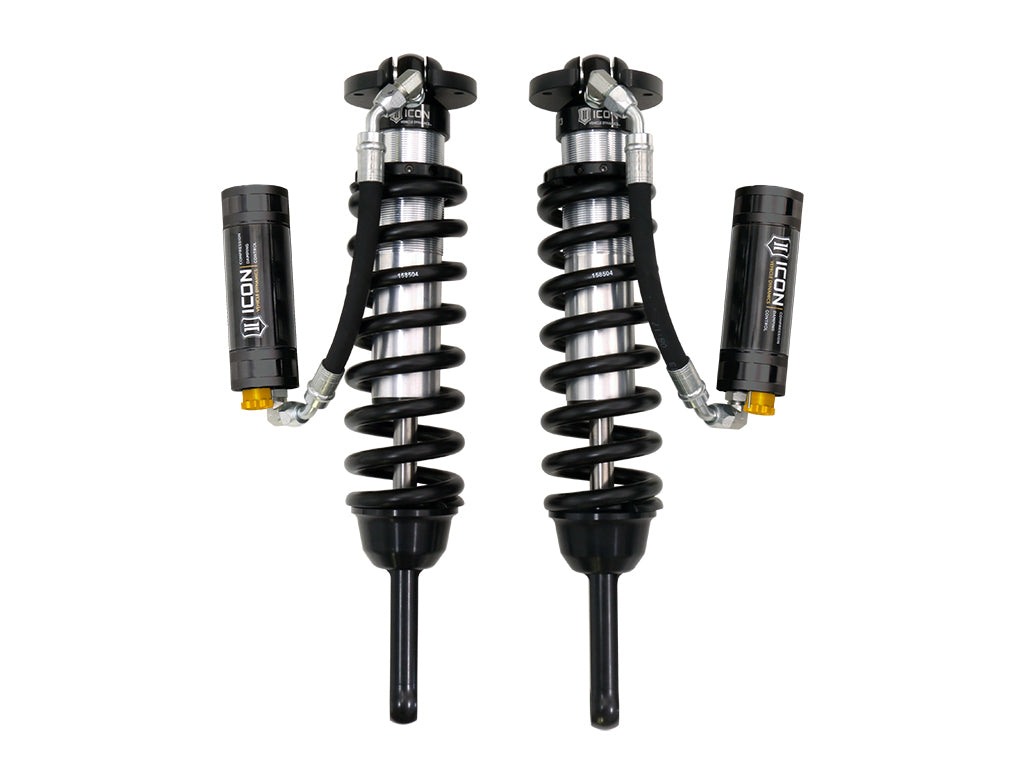

ICON 2005-2023 Toyota Tacoma, V.S. 2.5 Series Coilover Kit, For Pro Comp 6” Lift, Remote Reservoir w/ CDCV, 700 lbs/in Coils, Pair
SKU: 58731C-700-CB
$2,527.15
On backorder - will ship upon availability
Decrease quantity for ICON 2005-2023 Toyota Tacoma, V.S. 2.5 Series Coilover Kit, For Pro Comp 6” Lift, Remote Reservoir w/ CDCV, 700 lbs/in Coils, Pair
Increase quantity for ICON 2005-2023 Toyota Tacoma, V.S. 2.5 Series Coilover Kit, For Pro Comp 6” Lift, Remote Reservoir w/ CDCV, 700 lbs/in Coils, Pair
RECOMMENDED ADD-ONS:
Overview
ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma equipped with the Pro Comp 6” lift kit. These coilovers offer lift height adjustability, allowing fine tuning of ride height or the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Read More
Key Features
- Increased wheel travel and improved ride quality over stock
- Vehicle specific tuned for superior shock damping and control
- Height-adjustable coilovers with application specific length for fitment with Pro Comp 6" lift kits
- Remote reservoirs maintain cooler operating temperatures during extended off-road use
- ICON CDCV equipped for 10 settings of external compression damping adjustment
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
- FK rod end bearings for extended longevity and minimal deflection
- Fully rebuildable and re-tunable
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103404264 |
| Proxy Number | 58731 |
| Shipping Width | 13.00 in |
| Shipping Length | 31.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 70.0000 LB |
Technical Notes
- APPLICATION NOTE #50: 700lb/in spring rate only recommended for trucks with additional weight added to front end
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
- APPLICATION NOTE #254: Requires compatible 6" subframe lift. Coilover length optimized for Pro Comp 6" lift but may also be compatible with kits from other manufacturers
