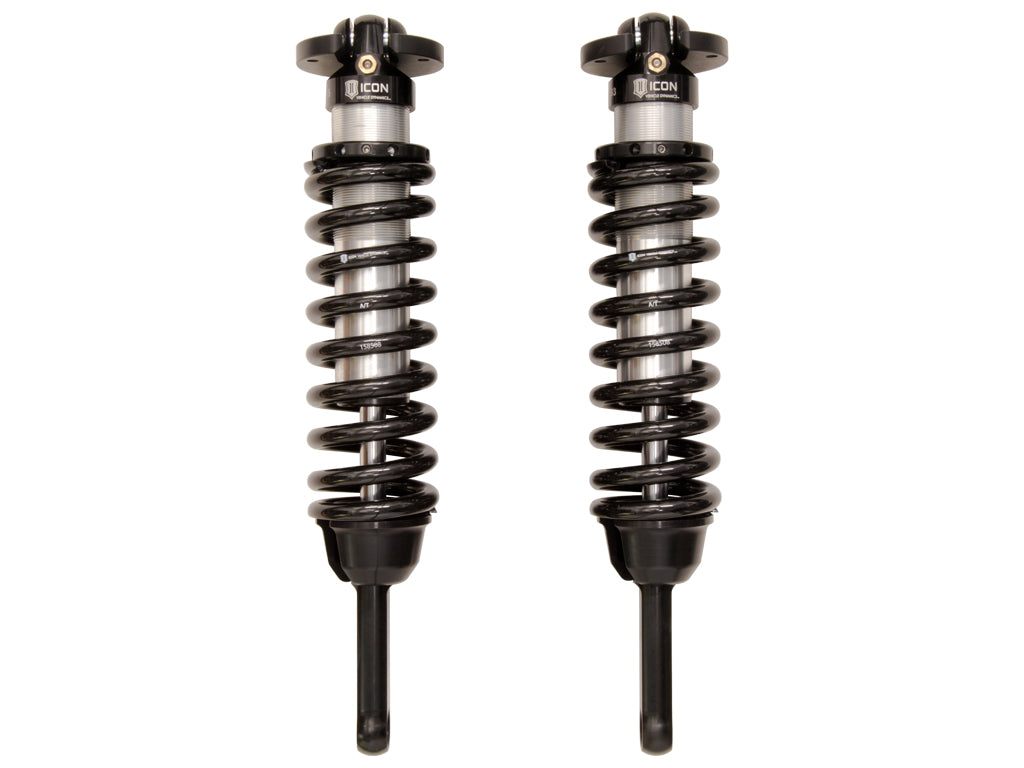

ICON 2005-2023 Toyota Tacoma, 0-3.5"/0-2.75" Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Internal Reservoir, 700 lbs/in Coils, Pair
SKU: 58635-700
$1,726.35
Low stock: 6 left
Decrease quantity for ICON 2005-2023 Toyota Tacoma, 0-3.5"/0-2.75" Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Internal Reservoir, 700 lbs/in Coils, Pair
Increase quantity for ICON 2005-2023 Toyota Tacoma, 0-3.5"/0-2.75" Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Internal Reservoir, 700 lbs/in Coils, Pair
RECOMMENDED ADD-ONS:
+ $29.38
Overview
ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.
Read More
Key Features
- Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
- Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
- Extended Travel length requires installation of aftermarket front upper control arms
- ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
- Superior low speed control reduces body roll and increases on-road stability
- High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
- Corrosion resistant CAD plated shock body with 7/8" shaft
- FK Rod End bearings provide extended longevity and minimal deflection
- Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
- Bolt-in design makes for an easy install into OEM shock location
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103403939 |
| Proxy Number | 58635 |
| Shipping Width | 13.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 47.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
- APPLICATION NOTE #50: 700lb/in spring rate only recommended for trucks with additional weight added to front end
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
- APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
- APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
- TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
- TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
