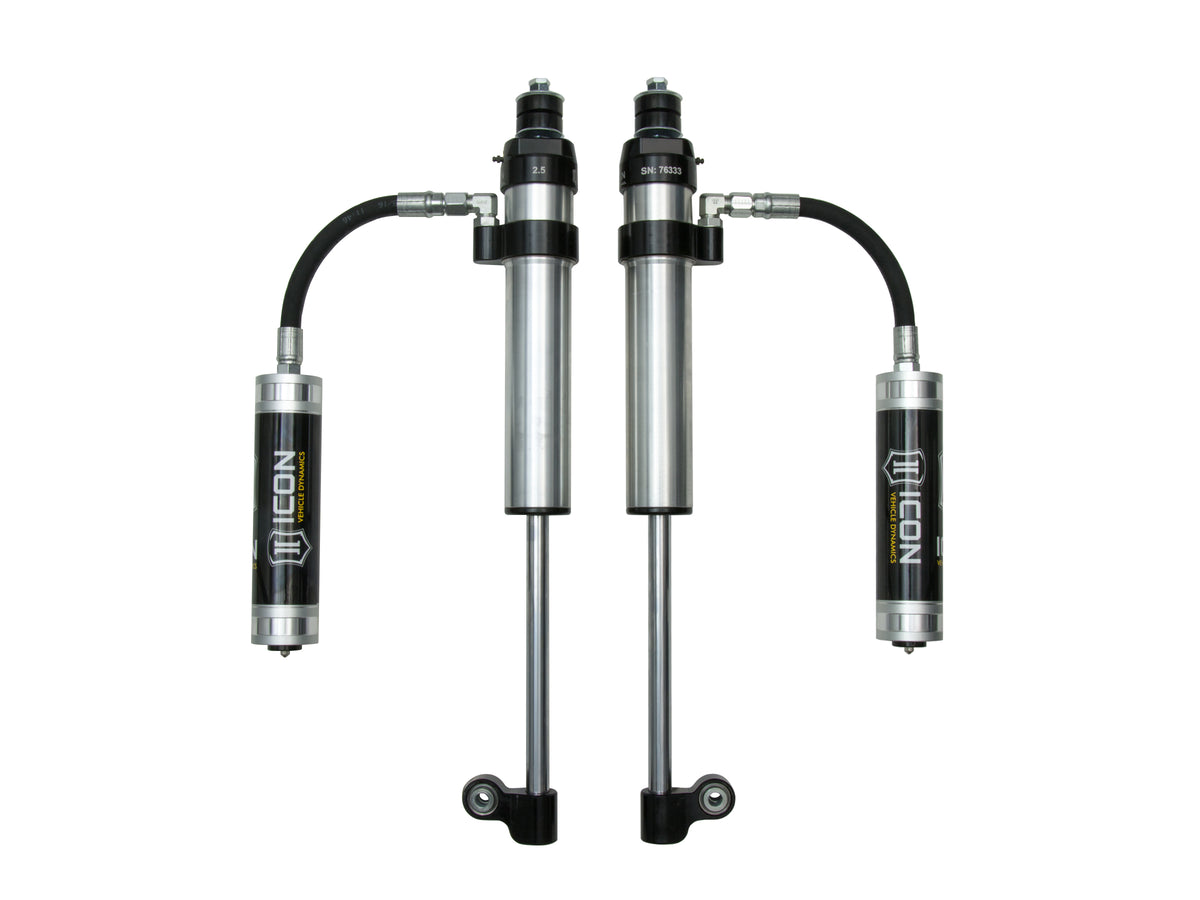

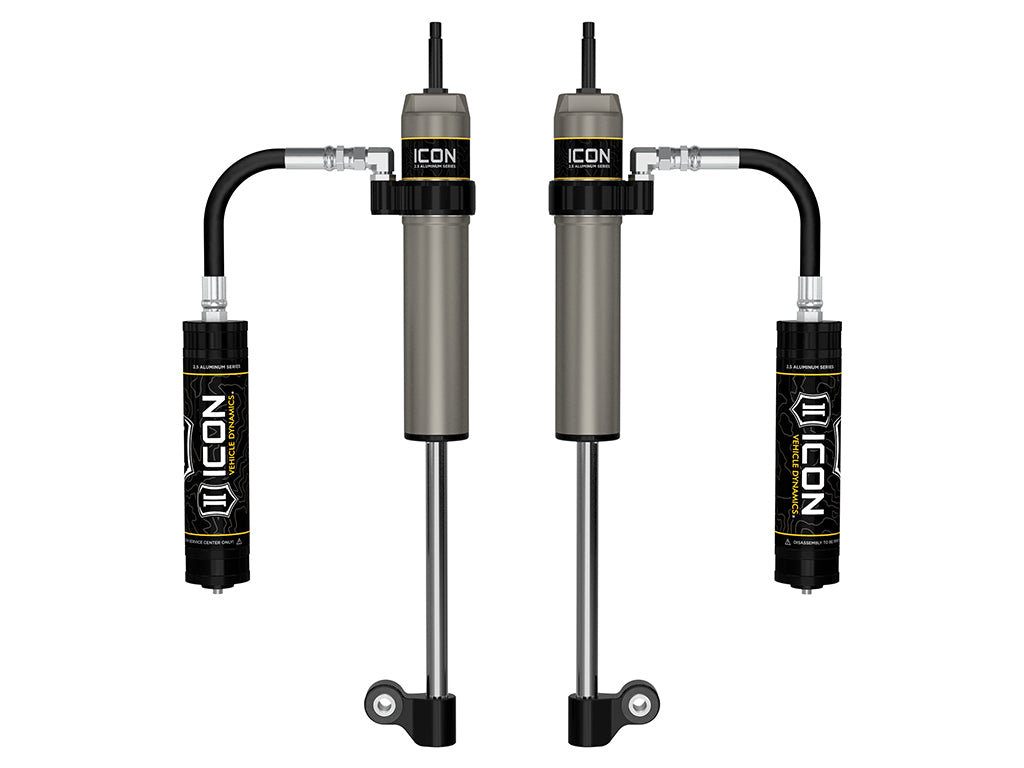

ICON 2005-2023 Toyota Tacoma, Rear, V.S. 2.5 Aluminum Series RXT Shock Absorbers, Remote Reservoir, Pair
SKU: 57826P
$1,329.75
22 in stock
RECOMMENDED ADD-ONS:
Overview
ICON’s 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Featuring ICON exclusive rod ends with side mounted eyelets, these "RXT" shocks maximize the capabilities of the suspension platform by allowing for increased shaft travel compared to traditional shock absorbers while remaining fully bolt on into the vehicle's factory shock mounts. One-piece impact extruded aluminum cylinders offer lighter weight, improved corrosion resistance, and a more uniform finish than traditional plated steel cylinders. Like all ICON'S Shock Absorbers, 2.5 Aliminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity.
Read More
Key Features
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- ICON exclusive side mounted "RXT" rod ends allow for increased shaft travel and compatibility with vehicle's stock shock mounting points
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with remote reservoir
- Double-sealed Schrader caps reduce risk of damage
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103403601 |
| Proxy Number | 57826 |
| Shipping Width | 15.00 in |
| Shipping Length | 39.00 in |
| Shipping Depth | 9.00 in |
| Shipping Weight | 30.0000 LB |
Technical Notes
- APPLICATION NOTE #185: Will not fit 2WD Tacoma with 5 wheel lug studs
- APPLICATION NOTE #244: ICON Multi-Rate Leaf Springs Part # 158505 required for installation
- TECH NOTE: Compatible with 0-2.625" of rear lift provided by ICON Multi-Rate Leaf Springs
