ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/2024-2025 Toyota Land Cruiser 250 Series/2025 Toyota 4Runner/2024-2025 Lexus GX550, Rear, Billet Adjustable Track Bar Kit
SKU: 54202
$464.29
Decrease quantity for ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/2024-2025 Toyota Land Cruiser 250 Series/2025 Toyota 4Runner/2024-2025 Lexus GX550, Rear, Billet Adjustable Track Bar Kit
Increase quantity for ICON 2022-2025 Toyota Tundra/2023-2025 Toyota Sequoia/2024-2025 Toyota Tacoma/2024-2025 Toyota Land Cruiser 250 Series/2025 Toyota 4Runner/2024-2025 Lexus GX550, Rear, Billet Adjustable Track Bar Kit
Overview

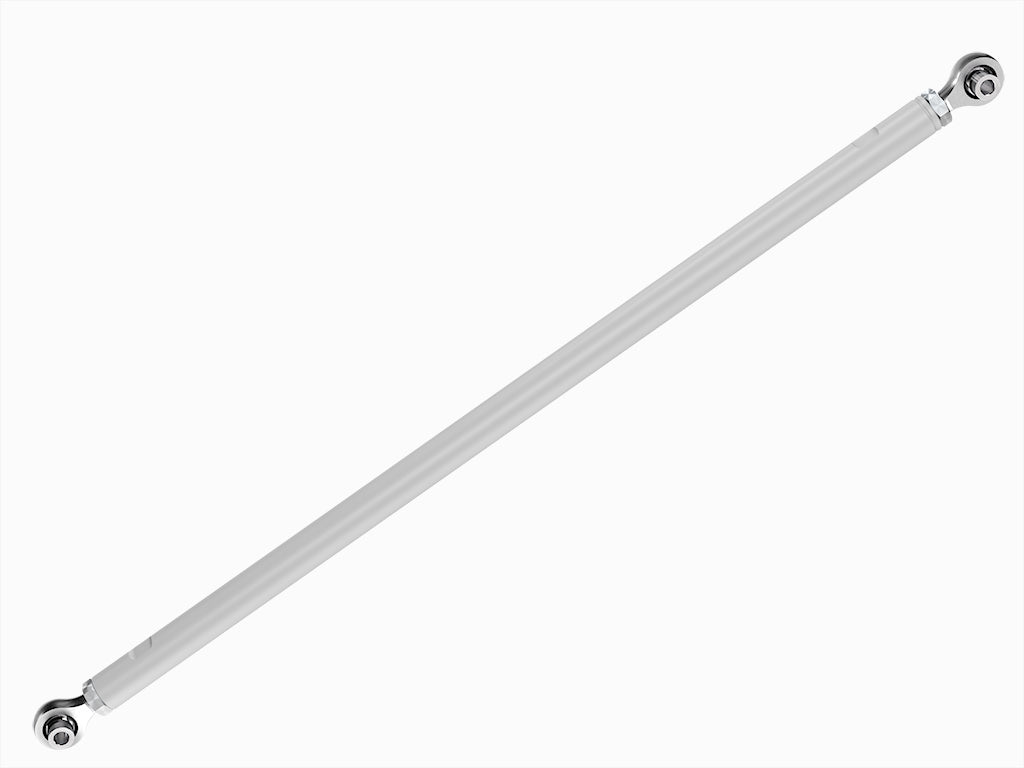

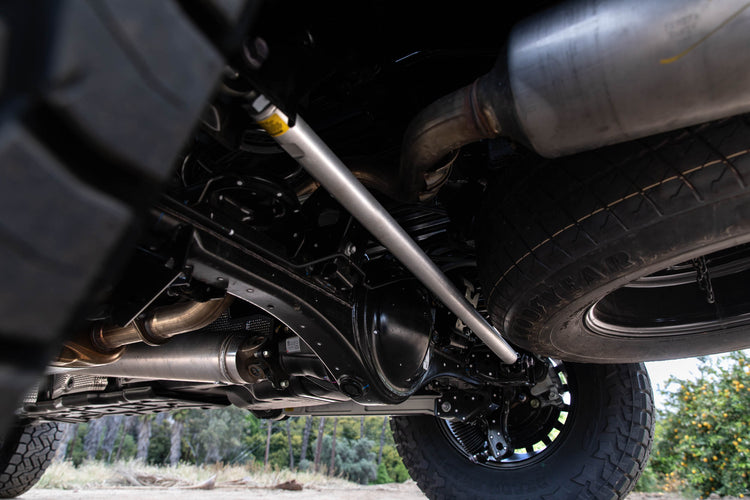

The ICON Billet Rear Adjustable Track Bar helps center the axle of your lifted 2022-2025 Toyota Tundra, 2023-2025 Toyota Sequoia, 2024-2025 Toyota Tacoma, 2024-2025 Toyota Land Cruiser 250 Series, 2025 Toyota 4Runner, or 2024-2025 Lexus GX550. Threaded rod ends allow easy “on-vehicle” fine adjustment of track bar length without requiring removal or disassembly of the track bar. Simply loosen the jam nuts then rotate the bar, using the machined wrench flats, to adjust link length. This allows for easy correction of axle location and dialing in precise tracking whenever adjustments are made to ride height. Additionally, the use of FK Rod End bearings eliminates the rubber bushings found in the stock track bar, eliminating bind and deflection during aggressive driving and greatly improving rear end articulation and the vehicle's overall handling characteristics. This track bar is CNC machined from solid 6061 aluminum bar and anodized to match the look of ICON's billet upper and lower links for a high-end appearance besides high performance. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
- Vehicle specific design
- Helps to free up bind during rear suspension travel and articulation
- Heavy duty PTFE-lined FK Rod Ends offer minimal deflection and maximum articulation
- On-vehicle adjustable for precise track alignment
- CNC machined 6061 aluminum bar
- Satin anodized finish to match appearance of ICON rear upper and lower links
- Covered by ICON’s Limited Lifetime Warranty
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103414393 |
| Proxy Number | 54202 |
| Shipping Width | 4.00 in |
| Shipping Length | 48.00 in |
| Shipping Depth | 4.00 in |
| Shipping Weight | 10.0000 LB |
Technical Notes
- APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
- TECH NOTE: Compatible with 0-2” of rear lift over stock on rear coil equipped Tundras or 0-4" of rear lift over stock on rear air equipped Tundras
- TECH NOTE: Compatible with 0-4" of rear lift over stock on non-TRD Sequoia or 0-2" of rear lift on TRD Sequoia
- TECH NOTE: Compatible with 0-2” of rear lift over stock on Tacomas
- TECH NOTE: Compatible with 0-3” of rear lift over stock on Land Cruiser 250 Series, 4Runner, and GX550
