ICON 2022-2026 Toyota Tundra, Rear, 3" Lift, Coil Spacer Kit
SKU: 51016
$168.25
23 in stock
Overview

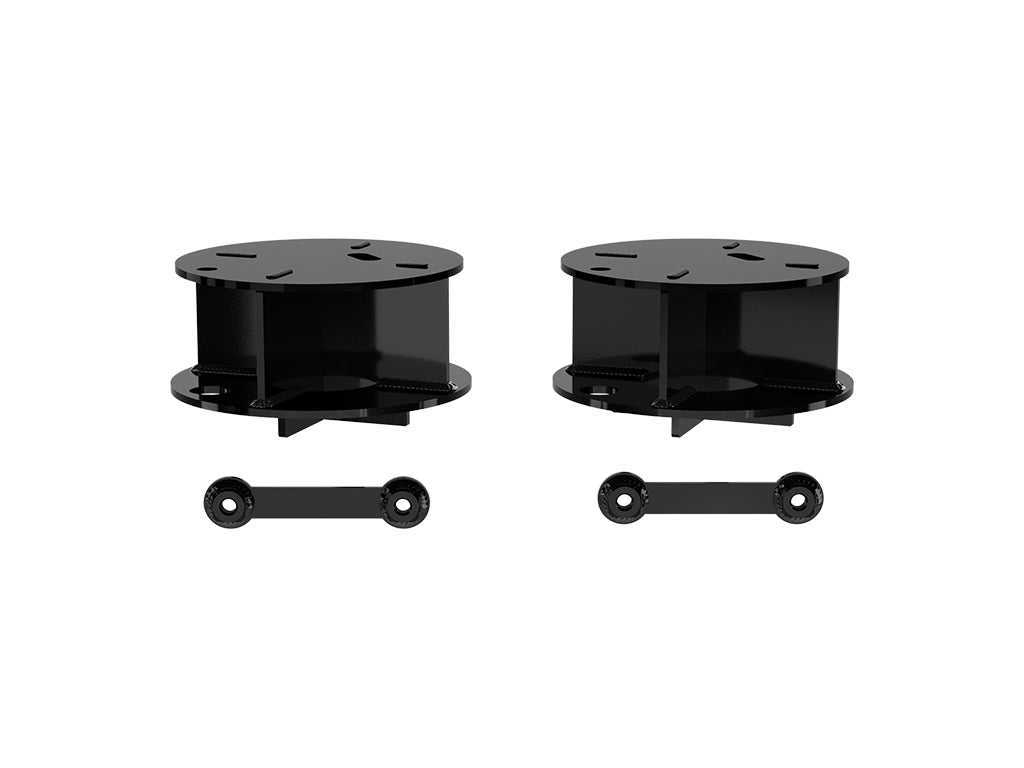

The ICON 3” Lift Rear Coil Spacer Kit is used as part of the ICON 6” Lift Performance Suspension System for the 2022-2026 Toyota Tundra and allows the OE rear coil springs to be reused to obtain the required rear lift at a lower cost while still allowing the option to upgrade to ICON Triple Rate Rear Coil Springs in the future. These high-quality spacers are fabricated from CNC laser cut steel and powder coated with a semi-gloss black finish.
Read More
Key Features
- Allows use of OE rear coil springs with ICON 6” Lift Performance Suspension System
- Lower cost option compared to ICON Triple Rate Rear Coils
- Compatible with 2WD and 4WD models
- Fabricated steel construction
- Durable semi-gloss black powder coat finish
- ICON Limited Lifetime Warranty
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103425542 |
| Proxy Number | 51016 |
| Shipping Width | 8.00 in |
| Shipping Length | 19.00 in |
| Shipping Depth | 9.00 in |
| Shipping Weight | 17.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: No
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
- APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
- APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (AVS) Equipped Vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #383: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.
