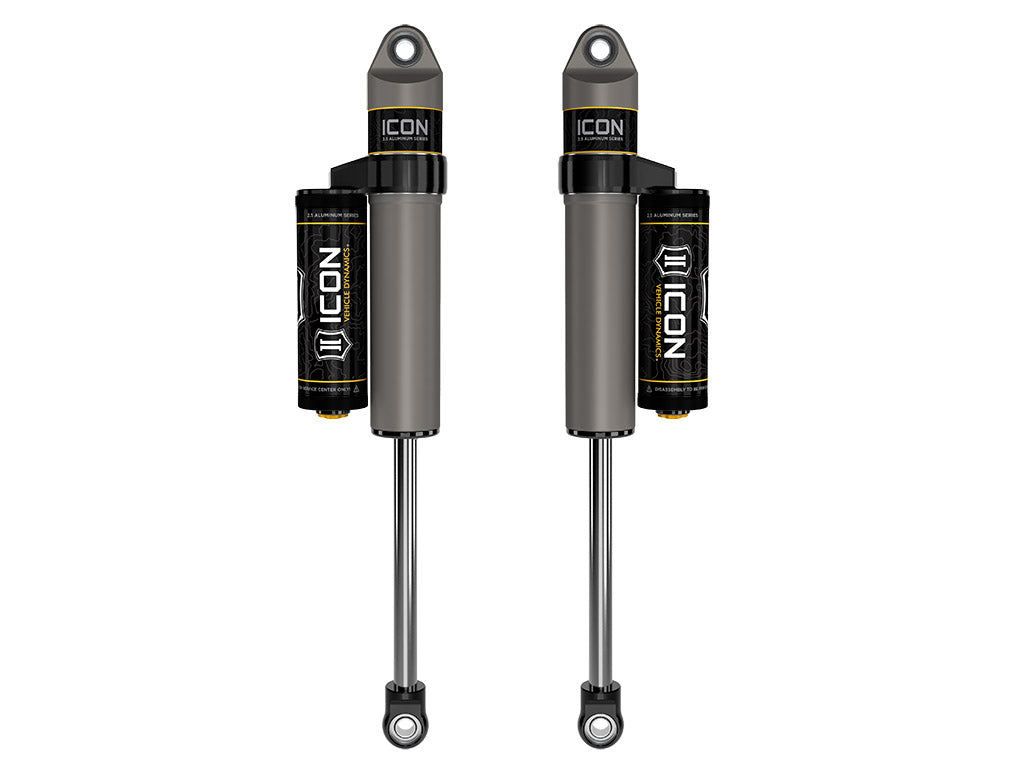

ICON 1999-2004 Ford F-250/F-350 Super Duty 4WD, 3-6” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair
SKU: 37710P
$1,193.50
Low stock: 4 left
Decrease quantity for ICON 1999-2004 Ford F-250/F-350 Super Duty 4WD, 3-6” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair
Increase quantity for ICON 1999-2004 Ford F-250/F-350 Super Duty 4WD, 3-6” Lift, Front, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir, Pair
RECOMMENDED ADD-ONS:
Overview
ICON 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the ICON CDC Valve shocks.
Read More
Key Features
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- Nitrogen charged monotube design with piggyback reservoir
- One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8” diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- 100% Rebuildable
- 100% Revalveable
- All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103402543 |
| Proxy Number | 37710 |
| Shipping Width | 10.00 in |
| Shipping Length | 39.00 in |
| Shipping Depth | 9.00 in |
| Shipping Weight | 25.0000 LB |
Technical Notes
- TECH NOTE: Compatible with 3-6” of front lift over stock
- TECH NOTE: Can be installed with ICON Dual Shock Mount kit part number 39010. A quantity of 2 are required per vehicle and heim spacers part number 257164 (qty 8) are also required.
