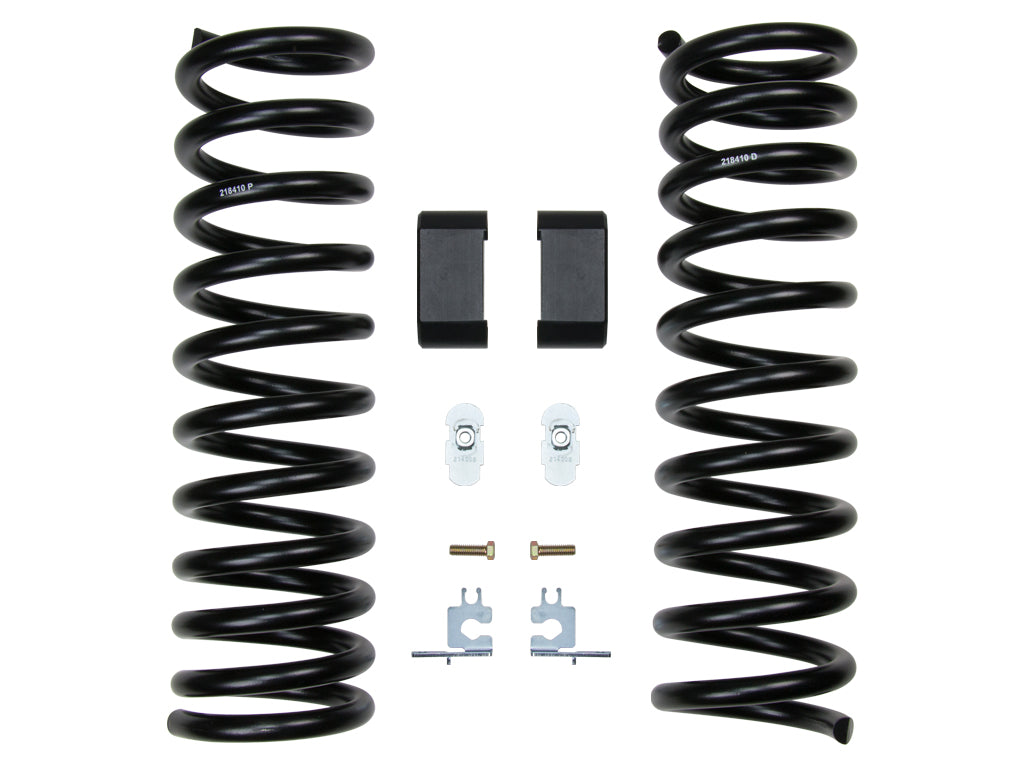

ICON 2014-2026 Ram 2500/2013-2026 Ram 3500, 4.5” Lift, Front, Dual Rate Coil Spring Kit
SKU: 214201
$653.95
Low stock: 7 left
Overview
The ICON Vehicle Dynamics 4.5" Dual Rate Spring System for ('14+) Ram 2500 / ('13+) 3500 4WD offers you both incredible ride quality and performance. This 4.5" dual rate spring system offers an initial soft ride zone with an aggressive 2nd rate to help prevent bottoming out. These ICON springs have a dual stage powder coat process to help prevent corrosion and are shot peened and pre-set to prevent sagging. All ICON shocks are engineered and tuned to work hand in hand with these springs for the best available on and off-road performance.
Read More
Key Features
- ICON engineered dual rate coil springs
- Increased wheel travel and ride quality over stock
- Less body roll than stock
- No drive shaft modifications needed
- No change in towing capacity
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103400648 |
| Proxy Number | 214201 |
| Shipping Width | 19.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 69.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
- Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
- APPLICATION NOTE #1: Only fits 4WD models
- APPLICATION NOTE #6: Springs are rated for diesel engines
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #607: 2019-2026 Ram 2500/3500 models require an aftermarket, high-angle front driveshaft to prevent bind. ICON part numbers 212511 or 212512 are recommended.
- APPLICATION NOTE #645: Provides 4.5" of front lift on most Ram 2500 submodels. Provides 2.5" of front lift on Ram 2500 Rebel.
