ICON Finned Reservoir Upgrade Kit, 7.5" Long
SKU: 191016
$344.39
Low stock: 5 left
Overview
Continuing ICON Vehicle Dynamics' commitment to innovation and performance, the 2.5 Series Finned Reservoir Upgrade Kit delivers both functional and aesthetic enhancements for ICON 2.5 Series and 3.0 Series piggyback and remote reservoir shocks. Featuring a finned reservoir design and included dovetail reservoir mounting rails, this upgrade provides a cleaner, more refined reservoir mounting without need for traditional hose clamps, while also significantly improving cooling performance. With a 115% increase in surface area over standard reservoirs, heat is dissipated more efficiently, allowing shocks to maintain consistent damping performance during prolonged, high-demand off-road use. This added cooling capacity is especially beneficial for ICON CDCV, CDXS, and CDEV shocks, where heat is generated in both the shock body and reservoir. The finned design also increases reservoir rigidity and improves resistance to rock and debris impacts. By incorporating a slightly larger outside diameter, the fins absorb potential trail damage while helping protect the critical inner sealing surface from deformation. Installation is performed during a shock rebuild, and each upgrade kit includes a pair of 7.5” finned reservoirs, dovetail reservoir mounting rails and clamps, and all necessary hardware for installation.
Read More
Key Features
- Upgrades ICON 2.5 Series and 3.0 Series piggyback and remote reservoir shocks
- 2.5” diameter, 7.5” long finned reservoirs with laser etched ICON logos
- 115% increase in reservoir surface area for improved cooling
- Helps maintain consistent damping during extended off-road use
- Ideal for ICON CDCV, CDXS, and CDEV shock absorbers
- Increased reservoir rigidity improves dent resistance
- Includes billet dovetail reservoir mounting rails for a clean, secure installation, and a free-floating appearance

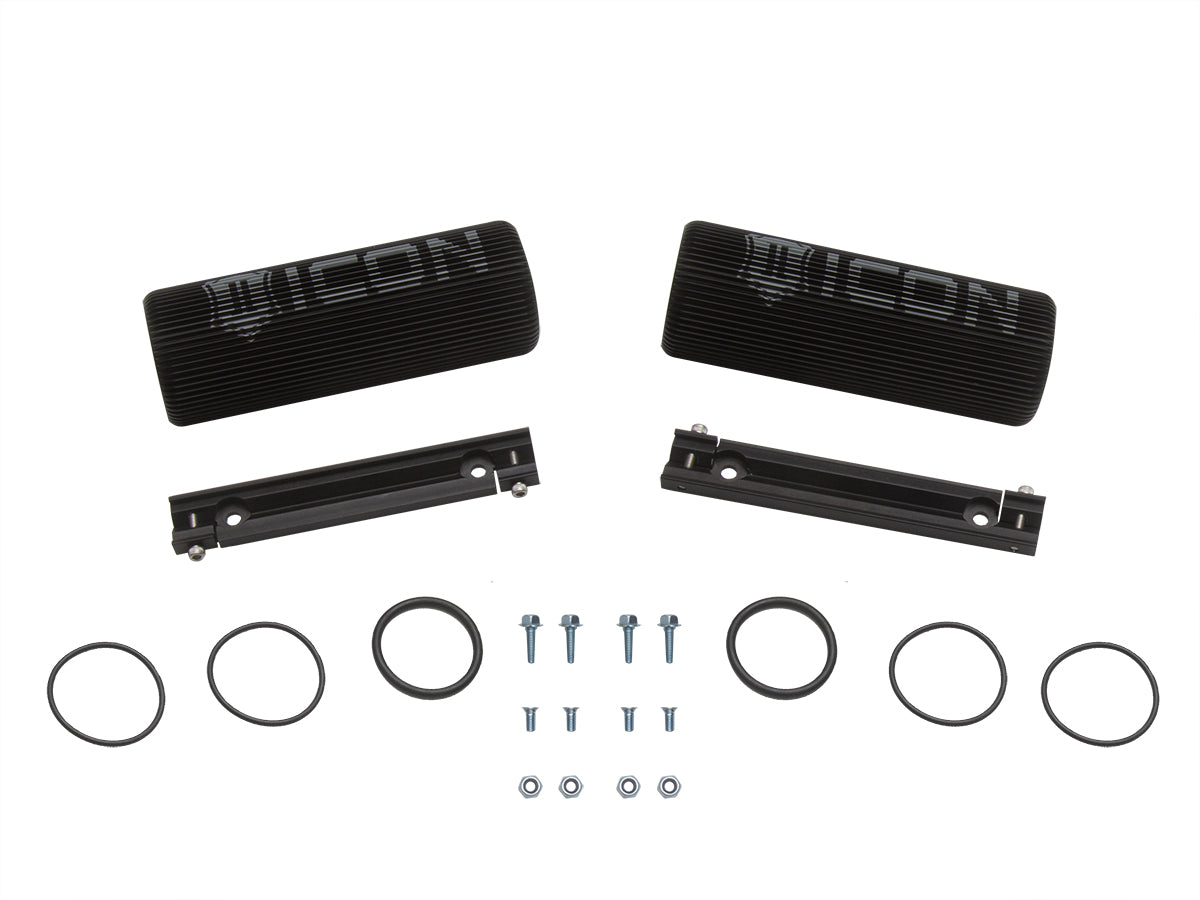

- Complete kit includes two 7.5" finned reservoirs, mounting hardware, and reservoir seals
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103400129 |
| Proxy Number | 191016 |
| Shipping Width | 10.00 in |
| Shipping Length | 10.00 in |
| Shipping Depth | 4.00 in |
| Shipping Weight | 8.0000 LB |
Technical Notes
- APPLICATION NOTE #68: Finned reservoirs are not compatible with 2.5 Series Omega Bypass Piggyback Reservoir Shocks
- APPLICATION NOTE #74: Older versions of the ICON universal reservoir brackets require two 1/4" holes to be drilled for proper mounting of the dovetail reservoir clamps. Newer versions of this bracket will come with the holes pre-drilled and are available for purchase through ICON.
- APPLICATION NOTE #79: Requires rebuild of shock absorbers with some specialty tooling required. Installation by qualified shock technician is recommended.
