ICON 2023-2025 Toyota Sequoia, 3-4.25" Lift, Stage 2 (TRD), 3.0 Suspension System, Billet, CDXS
SKU: K53252DS
$11,200.37
This item is backordered and will ship upon availability.
RECOMMENDED ADD-ONS:
+ $75.16
Overview

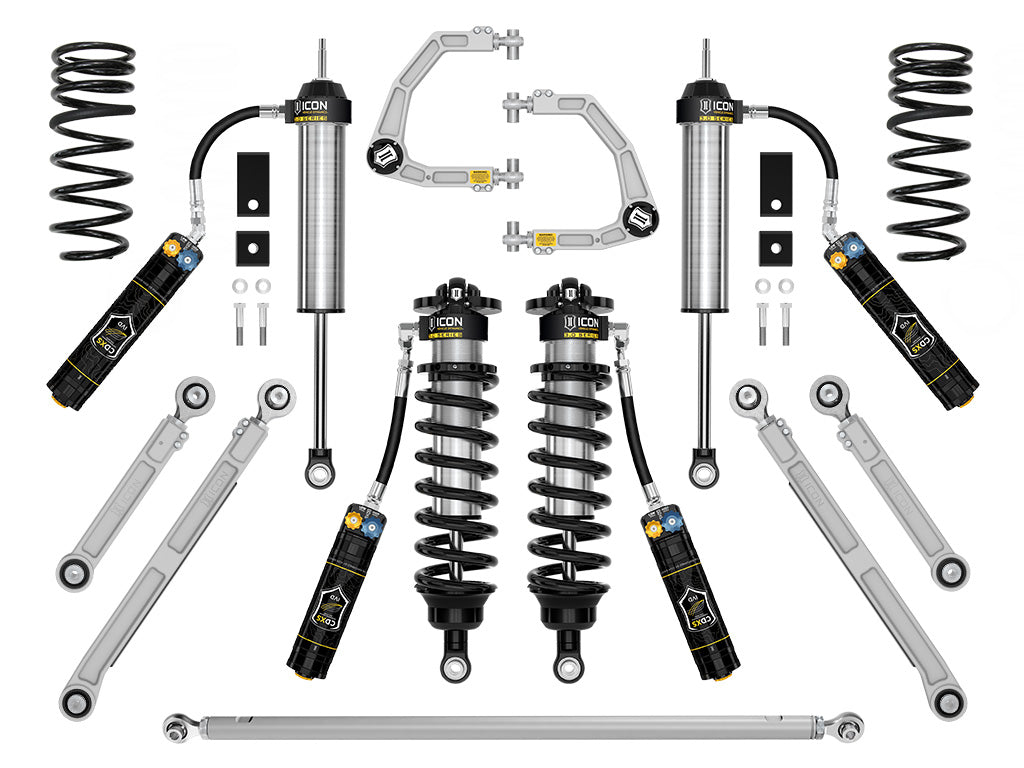

The ICON Vehicle Dynamics Stage 2 3.0 complete suspension system for the 2023-2025 Toyota Sequoia builds upon the Stage 1 3.0 system with the upgrade to 3.0 Series remote reservoir rear shocks. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front and rear-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the 3.0 Series rear shocks, 3.0 Series CDXS remote reservoir front coilovers are included along with billet front upper control arms, a billet rear upper/lower link combo, a front sway bar drop kit, adjustable rear track bar, and dual rate rear coil springs.
The 4-link brackets, upper links, and lower links are sold separately, allowing the 4-link system to be customized for your specific Ford Super Duty year range.
Standard
+0.75" Lift over stock
Rate Option #1
Read more
Key Features
- Vehicle specific design for 2023-2025 Toyota Sequoia

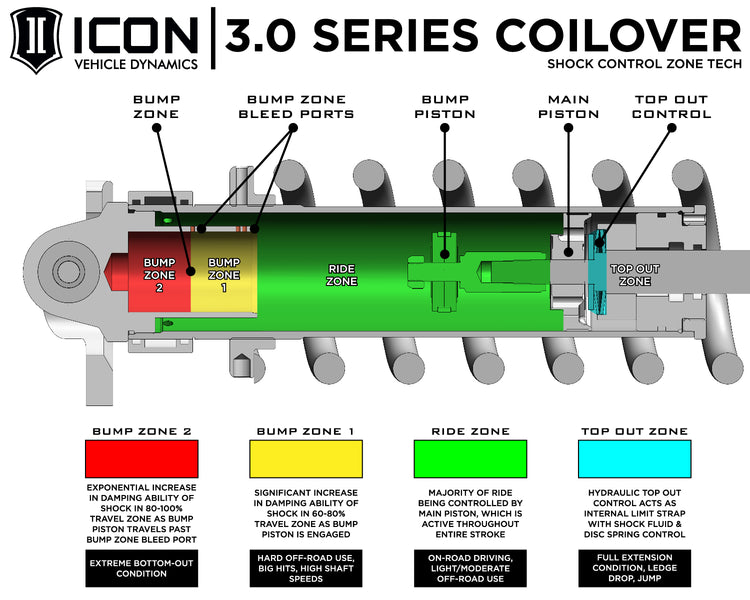

- 3.0 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Adjustable front ride heights from 3-4.25” of front lift over stock

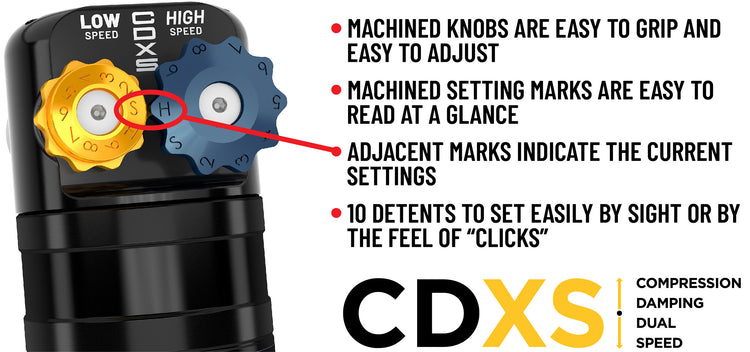

- All shock absorbers equipped with ICON CDXS for independent adjustability of high speed and low speed compression force for handling response and aggressiveness
- Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for full wheel travel without overstressing OE components
- Billet rear upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Dual rate rear coil springs improve performance and ride quality while providing 2" or 4" of rear lift, depending on the vehicle's stock suspension package
- On-vehicle adjustable rear track bar properly centers rear axle while also improving rear suspension performance
- 3.0 Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103433257 |
| Proxy Number | 53252 |
| Shipping Width | 15.00 in |
| Shipping Length | 33.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 234.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
- APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
- APPLICATION NOTE #85: Advertised lift height ranges are for a stock equipped vehicle. Increasing weight of vehicle due to accessories will alter lift range.
- APPLICATION NOTE #141: Tundra/Sequoia equipped with automatic leveling headlights or Load-Leveling Rear Height Control Air Suspension, part # 55153 is also required
- APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
- APPLICATION NOTE #149: For 4WD models without TRD Off-Road package ICON recommends using ICON Diff Drop (Part# 55156) or using Toyota TRD axles (Part# 434200C020 Driver / 434100C020 Pass). Failure to do so could result in front axle damage. Not required for TRD Pro.
- APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #171: If equipped with TRD aluminum skid plate part # 55164 is also required
- TECH NOTE: Most Sequoia submodels will have front lift height range of 3-4.25” over stock and 4" of rear lift over stock. Submodels equipped with TRD Off-Road Package and TRD Pro will have a front lift height range of 1-2.25" over stock and 2" of lift over stock in the rear. If shorter rear ride heights are desired, consider kit part number K53252D.
