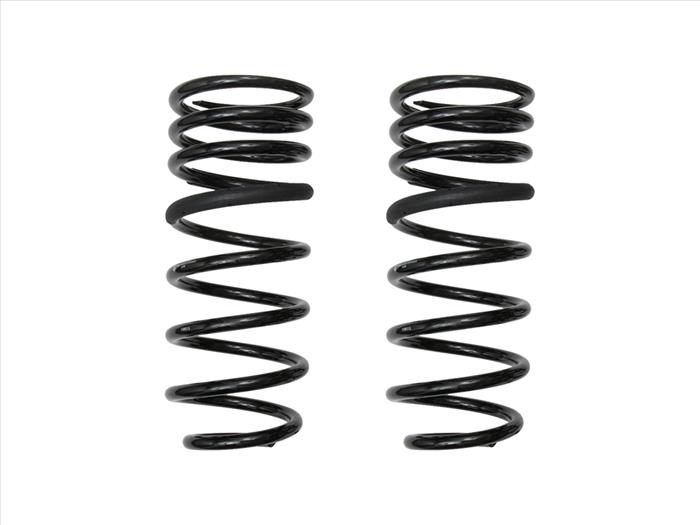

ICON 2024-2025 Toyota Tacoma, Rear, .5" Lift, Dual Rate Overland Coil Spring Kit
overview
ICON Dual Rate Overland rear coil springs for 2024-2025 Toyota Tacoma provide a modest increase in ground clearance on heavier Tacoma builds while also greatly enhancing on- and off-road performance, especially when used with ICON shocks and suspension components. Their dual rate coil design provides a softer ride rate with a firmer overload rate that combine to deliver on-road comfort with excellent load support, bottoming resistance, and superior off-road performance. These springs are designed to net .5" of rear lift over stock with approximately 600lbs of additional weight added to the rear, for a more aggressive stance and increased fender clearance for larger wheels and tires on more outfitted vehicles. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage allow you to drive with confidence in knowing that you have the best suspension products available for the 2024-2025 Toyota Tacoma.
features & Benefits
- .5" rear lift height over stock with 600lbs of additional weight in the rear
- Dual rate rear coil springs with ICON-engineered ride and overload rates
- Significantly improves on- and off-road ride quality and performance over stock
- Dual stage powder coating for corrosion resistance
- Lifetime guarantee against sagging/breakage
download installation guide
Tech Info:
- Factory Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17" x 8.5" with 5.75" Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18" x 9" with 6" Backspace / 25mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #30: An adjustable track bar is recommended to realign the axle but not required.
- APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
- APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
- APPLICATION NOTE #191: Advertised lift height ranges are for a vehicle with approx 600lbs of additional weight in rear. Increasing or decreasing weight of vehicle due to accessories will alter lift range.
