ICON 2016-2023 Nissan Titan XD, 3" Lift, Stage 1 Suspension System
SKU: K83031
$2,316.44
Low stock: 1 left
RECOMMENDED ADD-ONS:
Overview

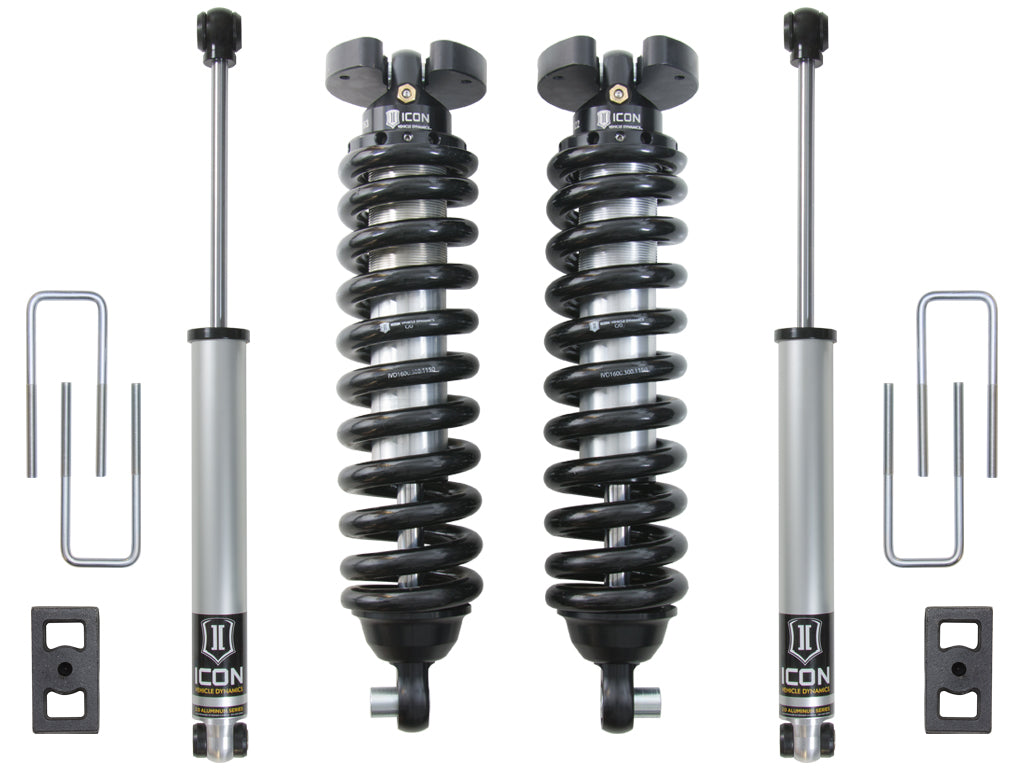

The 2016-2023 Nissan Titan XD is a truck with a heavy-duty build that’s aimed to blend the lines between ½ ton efficiency and ¾ ton capability. With this in mind, ICON Vehicle Dynamics has developed a complete suspension system designed from the ground up for improved performance on and off-road, increased wheel travel over stock, and the best ride quality on the market. The Stage 1 system includes ICON 2.5 Series coilovers, 2.0 Aluminum Series rear shocks, rear lift blocks, and u-bolts. These products feature high-quality components such as ICON-designed coil springs, precision machined internals, FK Rod End bearings, and a vehicle-specific shock tune that translates to a ride quality that is second to none. The ICON Vehicle Dynamics 2016-2023 Nissan Titan XD Stage 1 suspension system is an excellent choice for drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
Read More
Key Features
- Fits 2WD / 4WD applications
- Increased ride quality over stock with no change in towing capacity
- Approximately 32% increased front wheel travel over stock
- Adjustable coilovers provide 2.5-3" of lift height
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- 6061 aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
- FK Rod End bearings for extended longevity and minimal deflection
- 100% bolt-on system
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103419459 |
| Proxy Number | 83031 |
| Shipping Width | 13.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 7.00 in |
| Shipping Weight | 84.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- APPLICATION NOTE #115: Lift Heights Based On 4Wd Crew Cab Diesel
- Ships in multiple boxes
System Components
- 81021 (qty: 1) | 16-23 TITAN XD 2.5 IR COILOVER KIT
- 86535 (qty: 2) | 16-23 TITAN XD 0-1.5" REAR 2.0 VS IR
- 88700 (qty: 1) | 16-23 TITAN XD 9" U-BOLT KIT
- 191201 (qty: 1) | 1" CAST BLOCK KIT
