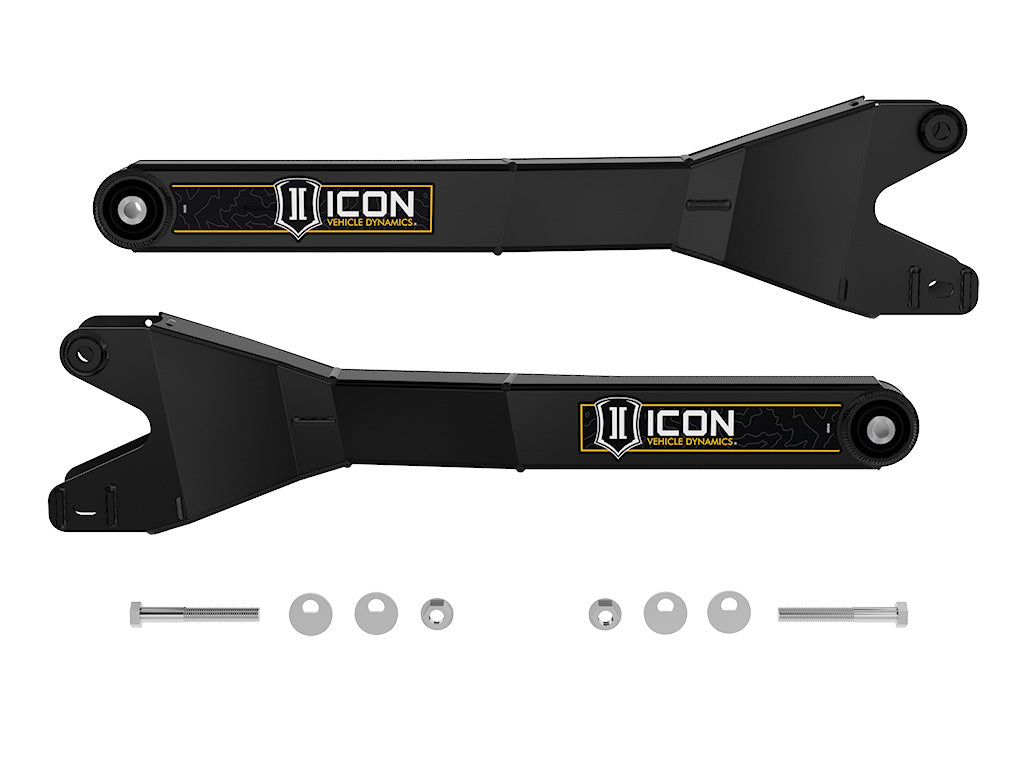

ICON 2005-2022 Ford Super Duty 4WD, Radius Arm System
SKU: 64041
$1,700.35
Low stock: 5 left
Overview
The ICON Vehicle Dynamics Ford 2005-2022 F-250, F-350, and F-450 Super Duty Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot. When used in conjunction with an ICON radius arm drop bracket system, proper caster can also be maintained for 4” to 7" lifts, including coilover conversion systems. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.
Read More
Key Features
- Fully boxed design
- Built in caster adjustment for optimized return to center
- Replaceable sealed pivot bushing provides maintenance free operation
- CNC machined and laser cut steel components
- Semi-gloss black powder coat finish
- Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock
CA Residents: Prop 65 Warning
WARNING
This product contains chemicals known to the State of California to cause cancer, birth anomalies, or other reproductive harm.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103411903 |
| Proxy Number | 64041 |
| Shipping Width | 13.00 in |
| Shipping Length | 40.00 in |
| Shipping Depth | 11.00 in |
| Shipping Weight | 84.0000 LB |
Technical Notes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: Up to a 37" x 12.50"
- Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
- Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
- TECH NOTE: Compatible with 0-3" front lift height without need for caster bushings
- TECH NOTE: Radius arm drop brackets required for use with 4-7” lift heights. (ICON part # 64040, 64045, or, 64055)
