NEW PRODUCTS: 2025 Toyota 4Runner 4WD
2.5 VS Suspension Components & Systems
ICON is proud to introduce our comprehensive line of performance suspension components and complete suspension systems for the brand new 2025 Toyota 4Runner 4WD. At the heart of the product range are ICON's proven 2.5 VS coilovers and shocks which yield 1.25 to 3 inches of lift and superior suspension performance both on- and off-road. And of course, complete ICON "Stage" Suspension Systems include incremental additions of billet or tubular UCA's and suspension links as well as a progression of performance levels for the shocks and coilovers.
NEW: COILOVERS | SHOCKS | SPRINGS
|

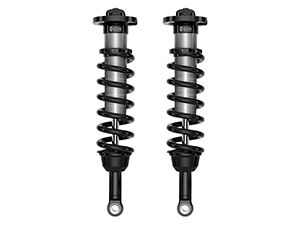

FRONT 2.5 VS IR COILOVERS
|

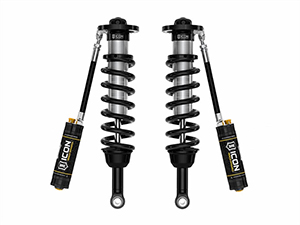

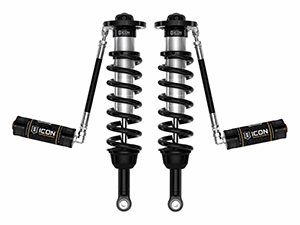

FRONT 2.5 VS RR COILOVERS
|
| 58692 25 4RUNNER 4WD FRONT 2.5 VS IR COILOVER KIT | 58795 25 4RUNNER 4WD FRONT 2.5 VS RR COILOVER KIT |
|
FRONT 2.5 VS CDCV COILOVERS
|

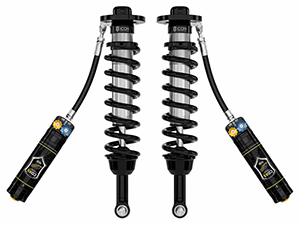

FRONT 2.5 VS CDXS COILOVERS
|
| 58795X 25 4RUNNER 4WD FRONT 2.5 VS RR CDXS COILOVER KIT | 58795X 25 4RUNNER 4WD FRONT 2.5 VS RR CDXS COILOVER KIT |
|

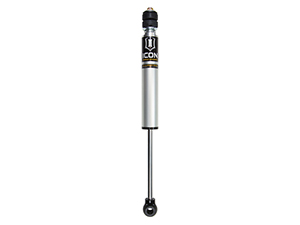

REAR 2.0 VS IR SHOCK
|

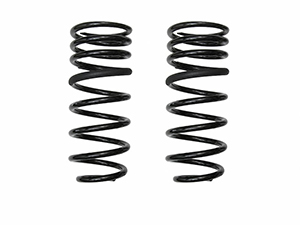

DUAL RATE REAR COIL SPRINGS
|
| 56523 25 4RUNNER 0-3" REAR 2.0 VS IR | 52753 25 4RUNNER .75" DUAL RATE REAR SPRING KIT |
|

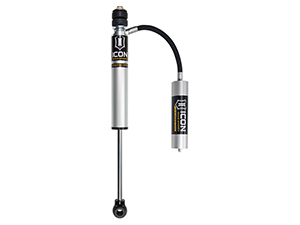

REAR 2.0 VS RR SHOCK DRIVER
|

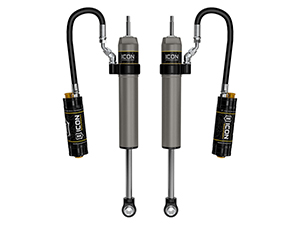

REAR 2.5 VS CDCV SHOCKS
|

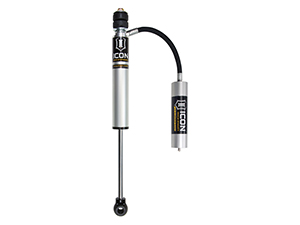

| 56523R 25 4RUNNER 0-3" DRIVER REAR 2.0 VS RR | 56524R 25 4RUNNER 0-3" PASS REAR 2.0 VS RR |
|

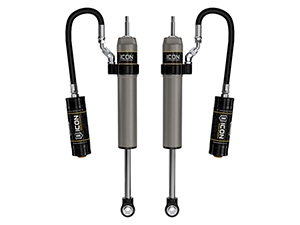

REAR 2.5 VS RR SHOCKS
|
REAR 2.0 VS RR SHOCK PASSENGER
|
| 57872P 25 4RUNNER 0-3" REAR 2.5 VS RR PAIR |
57872CP 25 4RUNNER 0-3" REAR 2.5 VS RR CDCV PAIR |
.jpg)
|

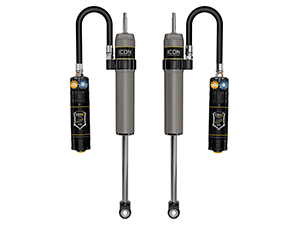

REAR 2.5 VS CDXS SHOCKS
|

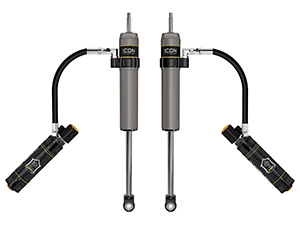

REAR 2.5 VS CDEV SHOCKS
|
| 57872XP 25 4RUNNER 0-3" REAR 2.5 VS RR CDXS PAIR |
57872EP 25 4RUNNER 0-3" REAR 2.5 VS RR CDEV PAIR |

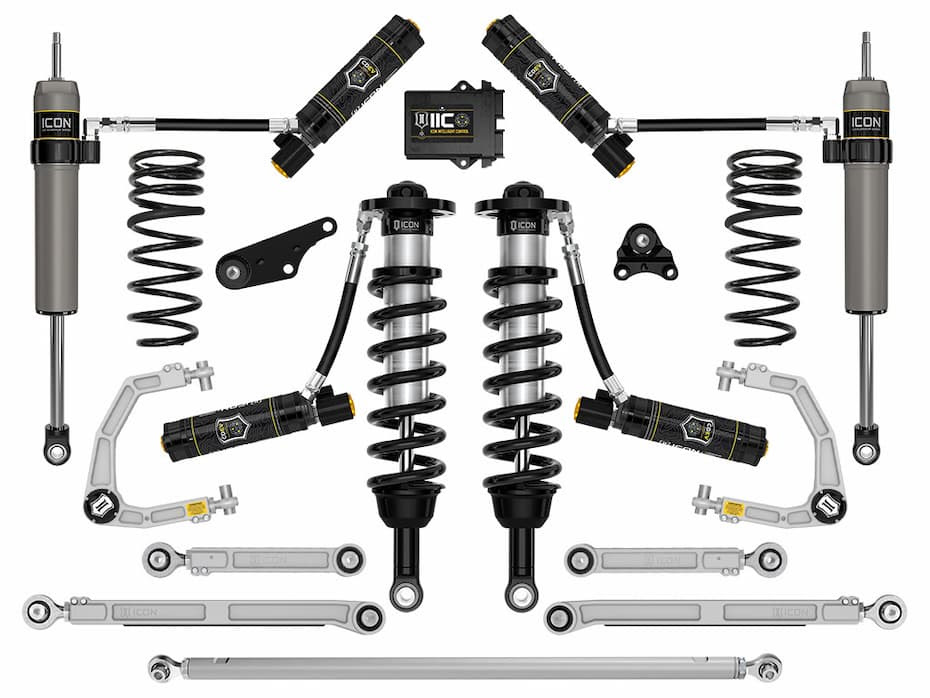

NEW: COMPLETE SUSPENSION SYSTEMS
ICON offers a comprehensive lineup of preconfigured Complete Suspension Systems for the 2025 Toyota 4Runner, feature the above New Products. Below is a list of all 14 "Stages", along with a brief description of how each Stage builds or improves on the features of the previous stage.

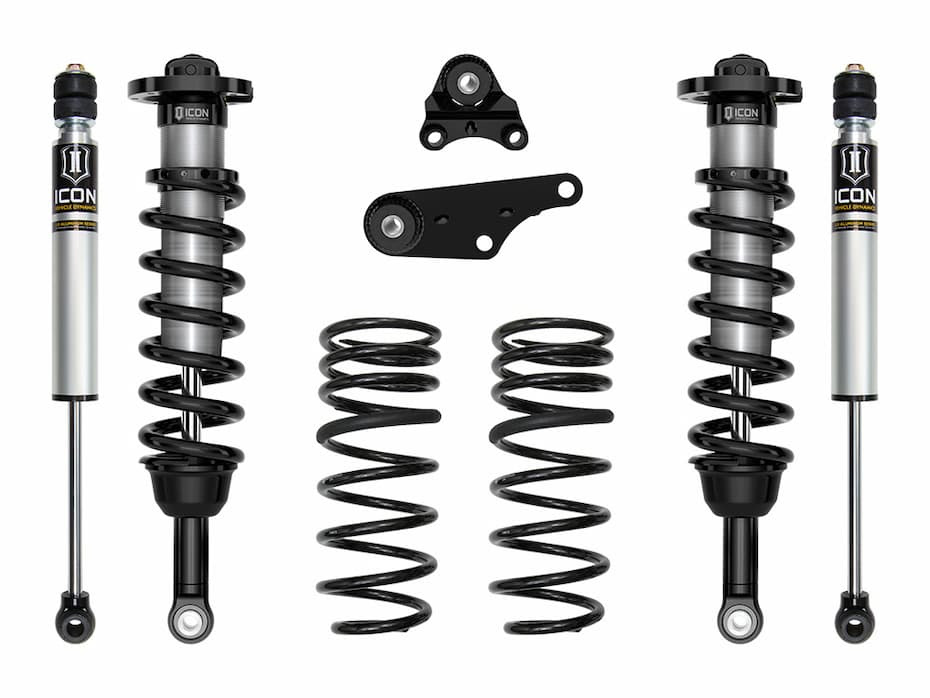

STAGE 1
Stage 1 is ICON's basic Performance Suspension System for 2025 Toyota 4Runner. It yields 1-1/4 to 3 inches of front suspension lift and includes 2.5 VS front internal reservoir coilovers. The kit is rounded out with ICON 2.0 IR rear shocks, Diff Drop brackets and ICON's proprietary Dual Rate Rear Coil Springs.
K53401 25 4RUNNER 4WD 1.25-3" LIFT STAGE 1 SUSPENSION SYSTEM

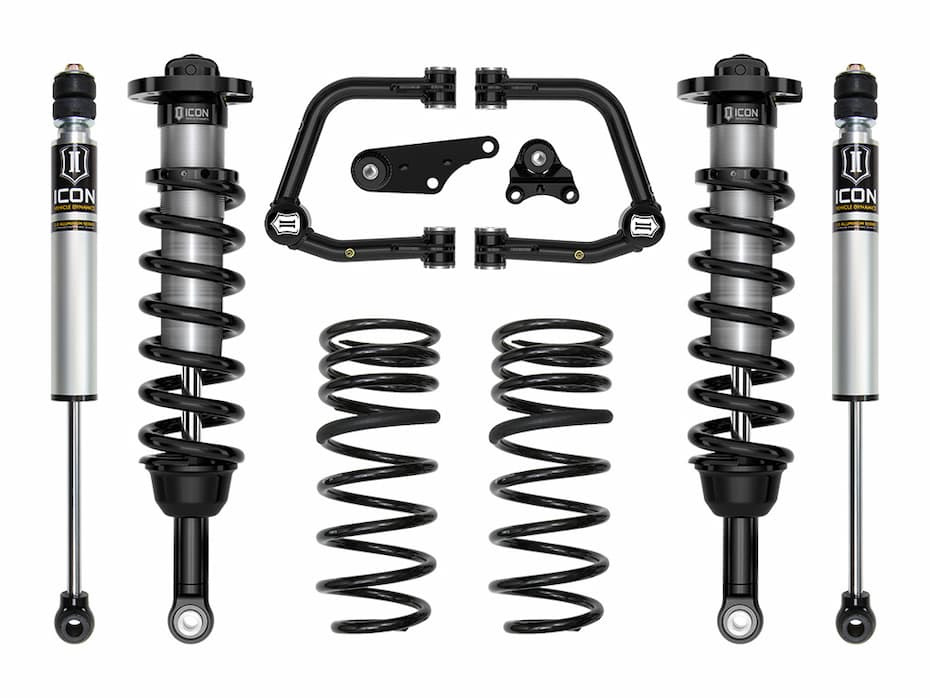

STAGE 2
Stage 2 adds ICON Upper Control Arms in either Tubular or Billet. Both versions provide caster correction to maintain factory driveability at increased lift heights, while the incredible Delta Joint Pro is greaseable, rebuildable and provides increased articulation. The CNC machined billet aluminum UCA's have the added benefit of heavy duty 3/4" heim joints and on-vehicle caster and camber adjustability.
K53402 25 4RUNNER 4WD 1.25-3" LIFT STAGE 2 SUSPENSION SYSTEM BILLET
K53402T 25 4RUNNER 4WD 1.25-3" LIFT STAGE 2 SUSPENSION SYSTEM TUBULAR

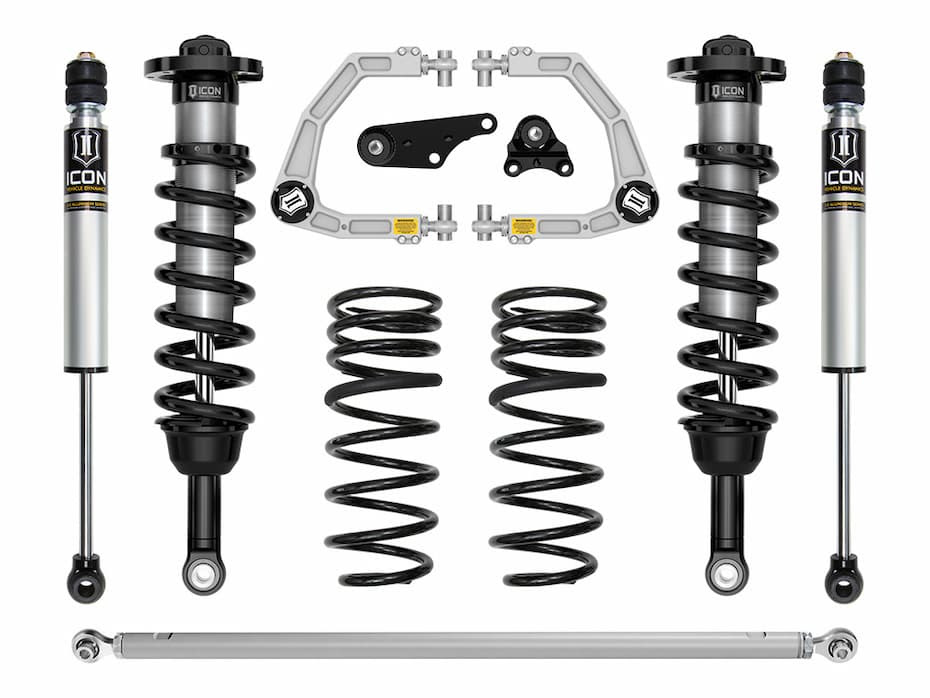

STAGE 3
Stage 3 builds on the previous stages with the addition of ICON's Billet Adjustable Rear Track Bar. The adjustable track bar helps to re-center the rear axle on lifted vehicles, correcting rear suspension geometry and improving ride quality. The CNC machined billet aluminum track bar includes heavy duty 3/4" heim joints and on-vehicel adjustability.
K53403 25 4RUNNER 4WD 1.25-3" LIFT STAGE 3 SUSPENSION SYSTEM BILLET
K53403T 25 4RUNNER 4WD 1.25-3" LIFT STAGE 3 SUSPENSION SYSTEM TUBULAR

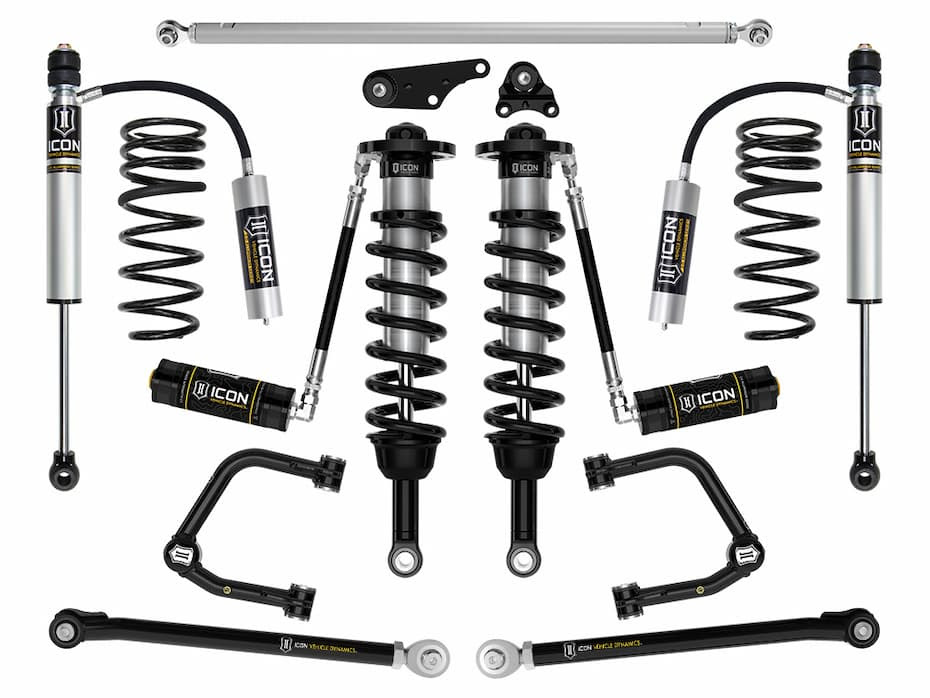

STAGE 4
Stage 4 takes suspension performance up a notch by adding remote reservoirs to the front coilovers and rear shocks. Reservoirs increase fluid volume and heat dissipation to improve shock performance for prolonged use over rough terrain. Also included are Lower Rear Suspension links in either tubular or billet, to improve rear suspension travel and articulation.
K53404 25 4RUNNER 4WD 1.25-3" LIFT STAGE 4 SUSPENSION SYSTEM BILLET
K53404T 25 4RUNNER 4WD 1.25-3" LIFT STAGE 4 SUSPENSION SYSTEM TUBULAR

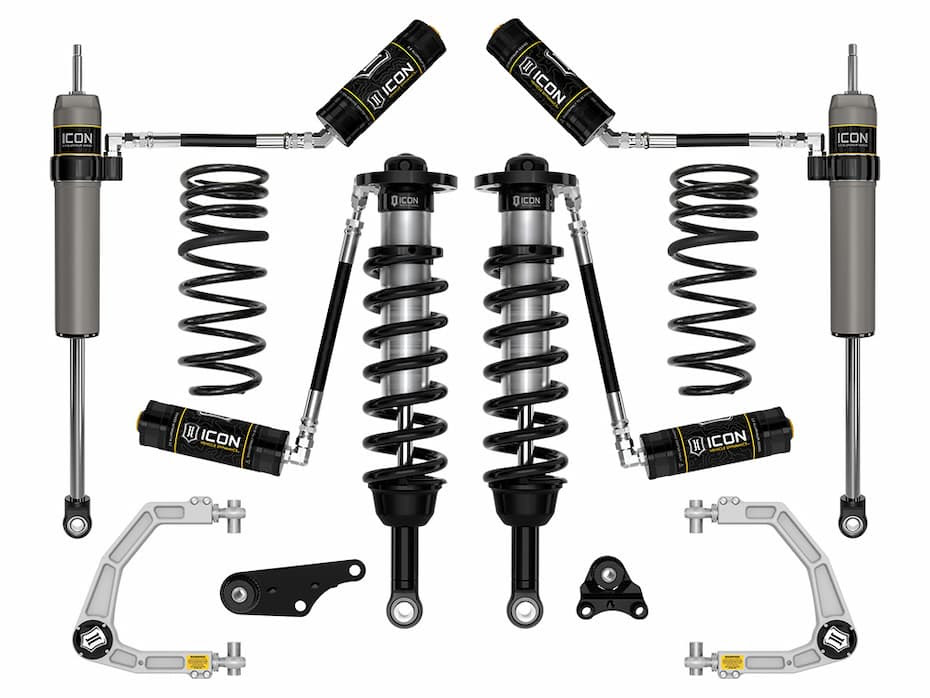

STAGE 5
Stage 5 steps up to full 2.5 VS shock performance for the rear, to match the 2.5 VS front coilovers. These shocks provide increased fluid volume and piston diameter versus our 2.0 series shocks, improving damping performance and fluid longevity. These rear shocks also feature an internal Bump Zone to increase damping force by 20% as shock travel approaches full compression.
K53405 25 4RUNNER 4WD 1.25-3" LIFT STAGE 5 SUSPENSION SYSTEM BILLET
K53405T 25 4RUNNER 4WD 1.25-3" LIFT STAGE 5 SUSPENSION SYSTEM TUBULAR

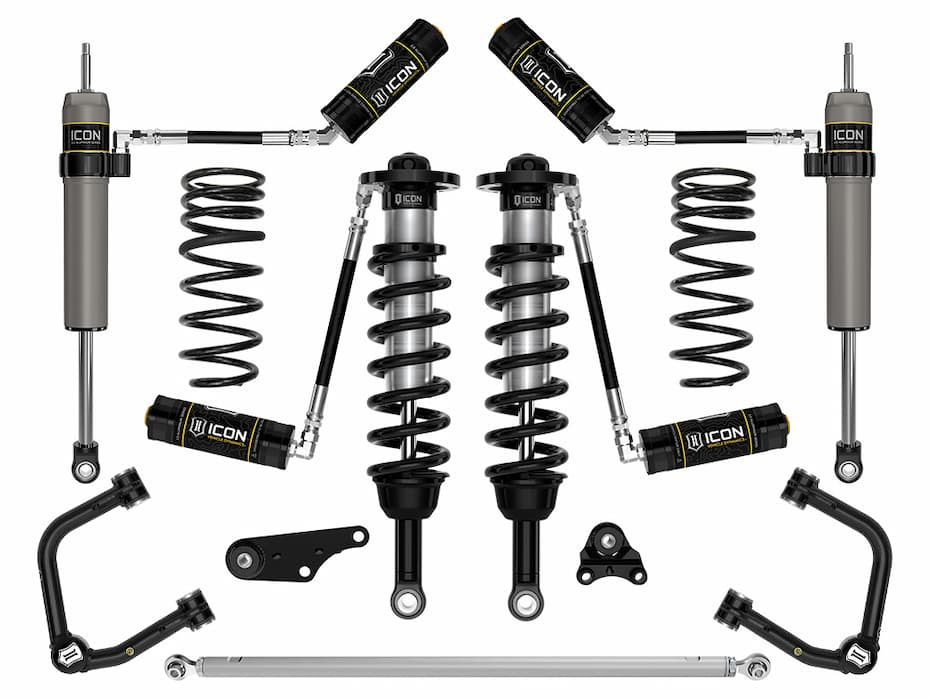

STAGE 6
Stage 6 builds on the previous stage with the addition of ICON's Billet Adjustable Rear Track Bar. The adjustable track bar helps to re-center the rear axle on lifted vehicles, correcting rear suspension geometry and improving ride quality. The CNC machined billet aluminum track bar includes heavy duty 3/4" heim joints and on-vehicel adjustability.
K53406 25 4RUNNER 4WD 1.25-3" LIFT STAGE 6 SUSPENSION SYSTEM BILLET
K53406T 25 4RUNNER 4WD 1.25-3" LIFT STAGE 6 SUSPENSION SYSTEM TUBULAR

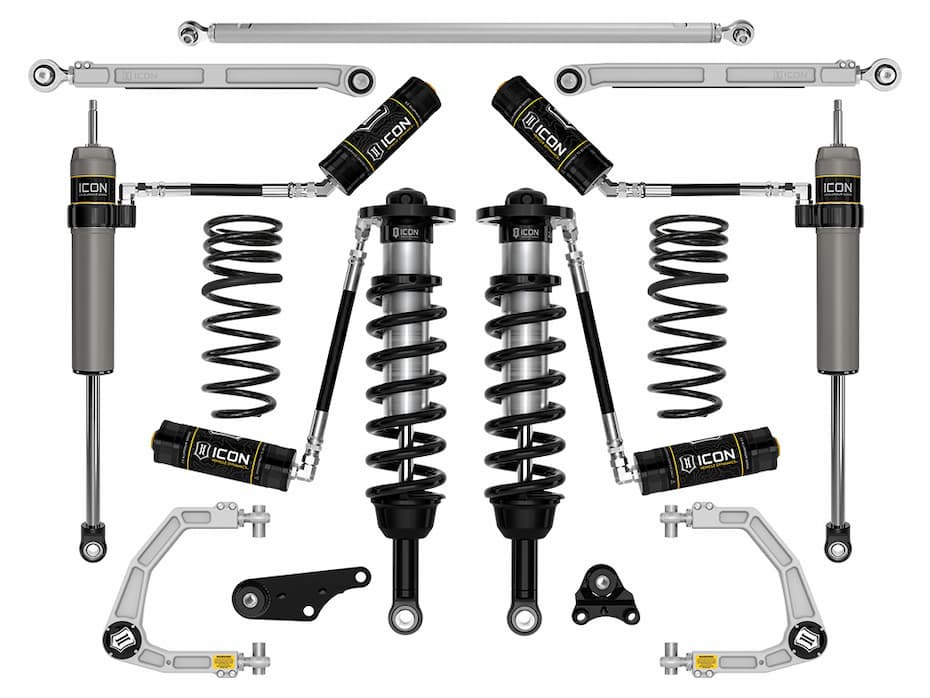

STAGE 7
Stage 7 adds Billet or Tubular Lower Rear Suspension links to improve rear suspension travel and articulation. Both tubular and billet feature a maintenance-free, multi-durometer bushing at one end that allows maximum angularity with superior vibration and noise dampening. At the other end a heavy duty, PTFE-lined spherical rod end provides increased suspension articulation with reduced deflection for superior handling. In addition, the billet version allows on-vehicle adjustment to dial in link length and pinion angle.
K53407 25 4RUNNER 4WD 1.25-3" LIFT STAGE 7 SUSPENSION SYSTEM BILLET
K53407T 25 4RUNNER 4WD 1.25-3" LIFT STAGE 7 SUSPENSION SYSTEM TUBULAR

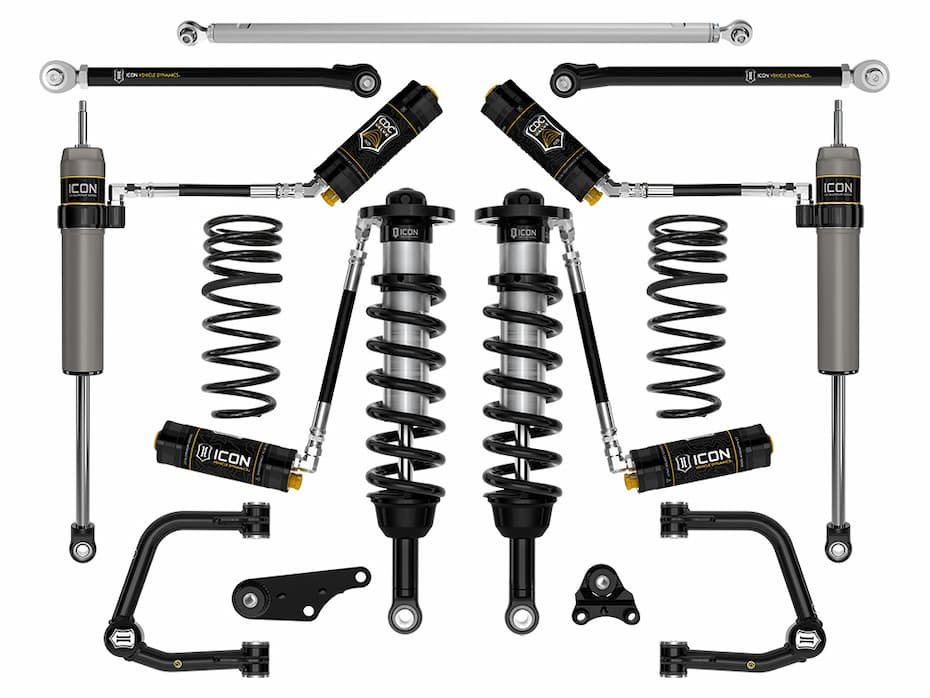

STAGE 8 - CDCV
Compression damping adjustability takes center stage at Stage 8, with ICON's exclusive Compression Damping Control Valve built into each coilover and shock. CDCV provides manual compression damping adjustability using an easy-to-grib adjustment knob located on the shock reservoir. Adjusting fluid control under compression allows for fine-tuning shock performance to optimize for any driving conditions.

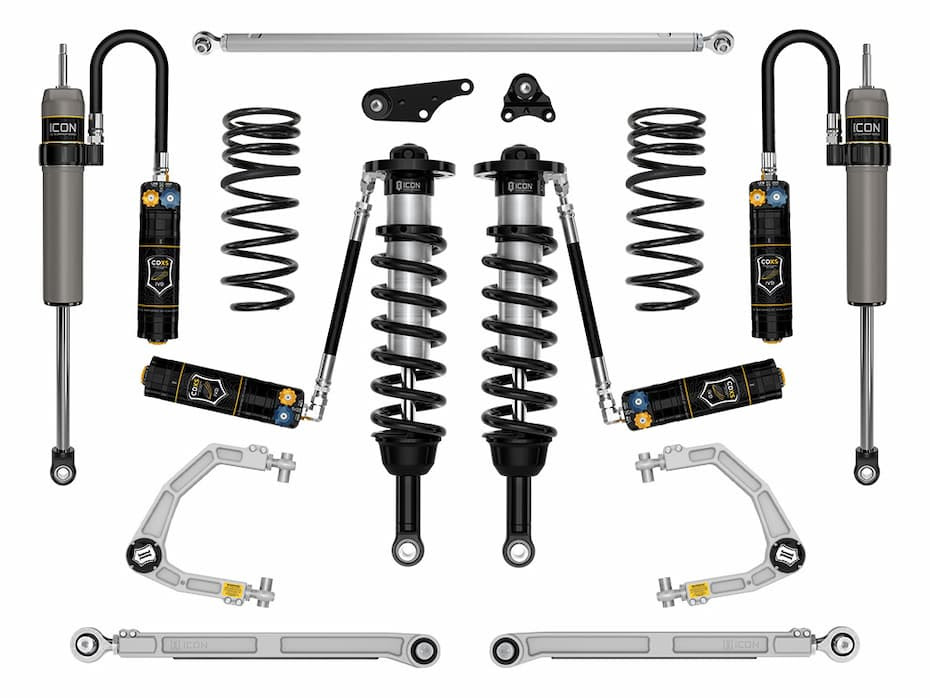

STAGE 9 - CDXS
Take the next step up in shock tune adjustability with Stage 9, featuring ICON's proprietary Compression Damping Dual Speed valves, equipped on each shock and coilover. CDXS allows for independent control of fluid flow under compression, for both high-speed and low-speed fluid circuits. The result is a ride and performance perfectly dialed in for any terrain.
K53409 25 4RUNNER 4WD 1.25-3" LIFT STAGE 9 SUSPENSION SYSTEM BILLET
K53409T 25 4RUNNER 4WD 1.25-3" LIFT STAGE 9 SUSPENSION SYSTEM TUBULAR

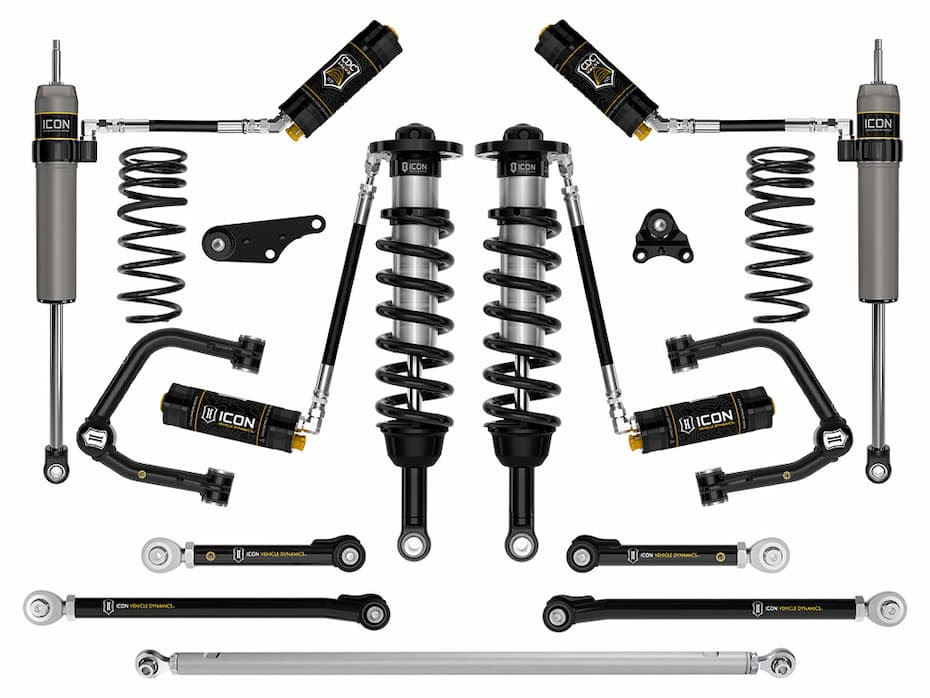

STAGE 10 - CDCV
Stage 10 pairs ICON's CDCV adjustable compression damping technology with a full suite of billet or tubular front and rear suspension links, including the addition of Rear Upper Suspension Links. Like the lowers, the upper rear links feature a multi-durometer bushing and heavy duty heim joint, with on-vehicle adjustability for the billet version.
K53410 25 4RUNNER 4WD 1.25-3" LIFT STAGE 10 SUSPENSION SYSTEM BILLET
K53410T 25 4RUNNER 4WD 1.25-3" LIFT STAGE 10 SUSPENSION SYSTEM TUBULAR

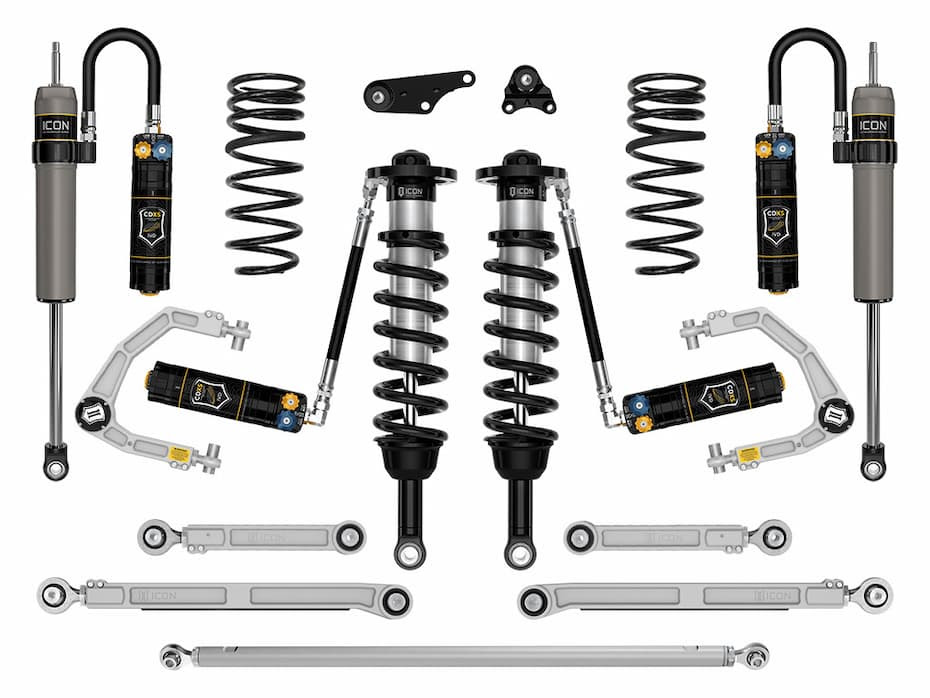

STAGE 11 - CDXS
Stage 11 steps up from Stage 10 with the upgrade to ICON's proprietary CDXS technology for each shock and coilover. CDXS provides dual-speed compression damping tunability using easy to see, easy to grip adjustment knobs on each shock's reservoir.
K53411 25 4RUNNER 4WD 1.25-3" LIFT STAGE 11 SUSPENSION SYSTEM BILLET
K53411T 25 4RUNNER 4WD 1.25-3" LIFT STAGE 11 SUSPENSION SYSTEM TUBULAR

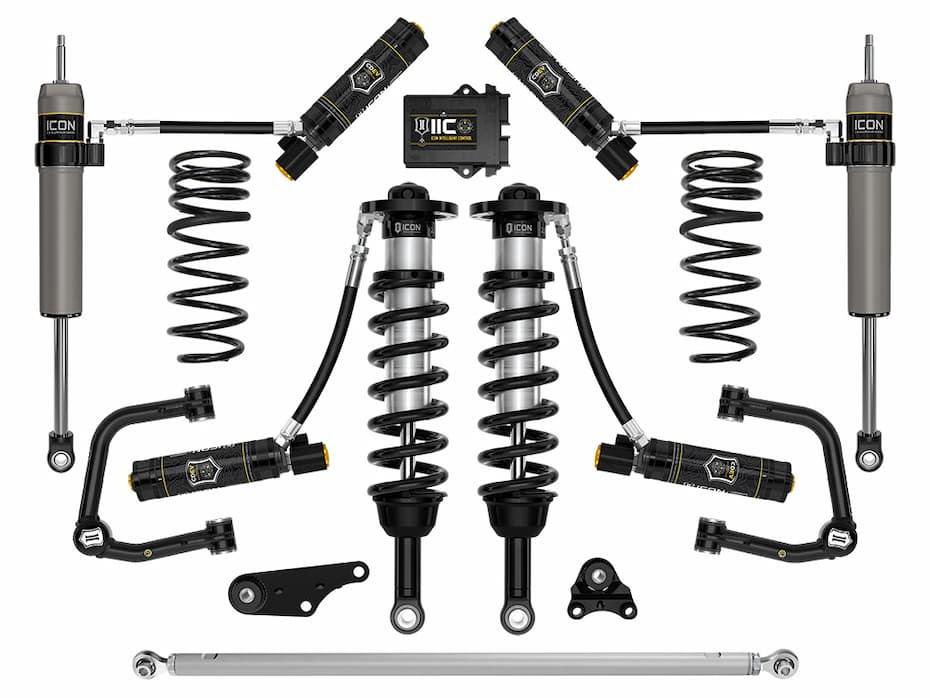

STAGE 12 - CDEV
ICON's incredible Compression Damping Electronic Valve technology joins the lineup at Stage 12. At this stage, rear suspension links are removed to budget for the CDEV system, powered by ICON Intelligent Control. CDEV with IIC ingeniously reacts to terrain and driving conditions almost instantaneously to adjust compression damping on the fly. The result is flawless performance where the vehicle's suspension adapts automatically to changing conditions in microseconds. All of this can be set up, controlled and monitored through the integrated app on your phone for a state-of-the-art driving experience.
K53412 25 4RUNNER 4WD 1.25-3" LIFT STAGE 12 SUSPENSION SYSTEM BILLET
K53412T 25 4RUNNER 4WD 1.25-3" LIFT STAGE 12 SUSPENSION SYSTEM TUBULAR

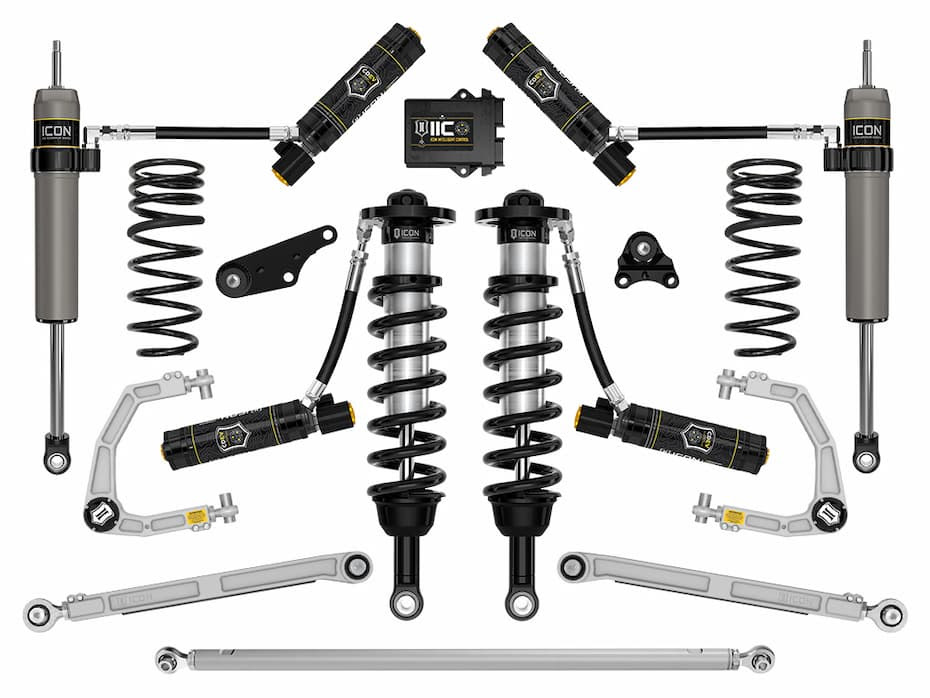

STAGE 13 - CDEV
Stage 13 continues to build on ICON's CDEV and IIC equipped suspension systems with the addition of Billet or Tubular Lower Rear Suspension links to improve rear suspension travel and articulation. Both tubular and billet feature a maintenance-free, multi-durometer bushing at one end that allows maximum angularity with superior vibration and noise dampening. At the other end a heavy duty, PTFE-lined spherical rod end provides increased suspension articulation with reduced deflection for superior handling. In addition, the billet version allows on-vehicle adjustment to dial in link length and pinion angle.
K53413 25 4RUNNER 4WD 1.25-3" LIFT STAGE 13 SUSPENSION SYSTEM BILLET
K53413T 25 4RUNNER 4WD 1.25-3" LIFT STAGE 13 SUSPENSION SYSTEM TUBULAR

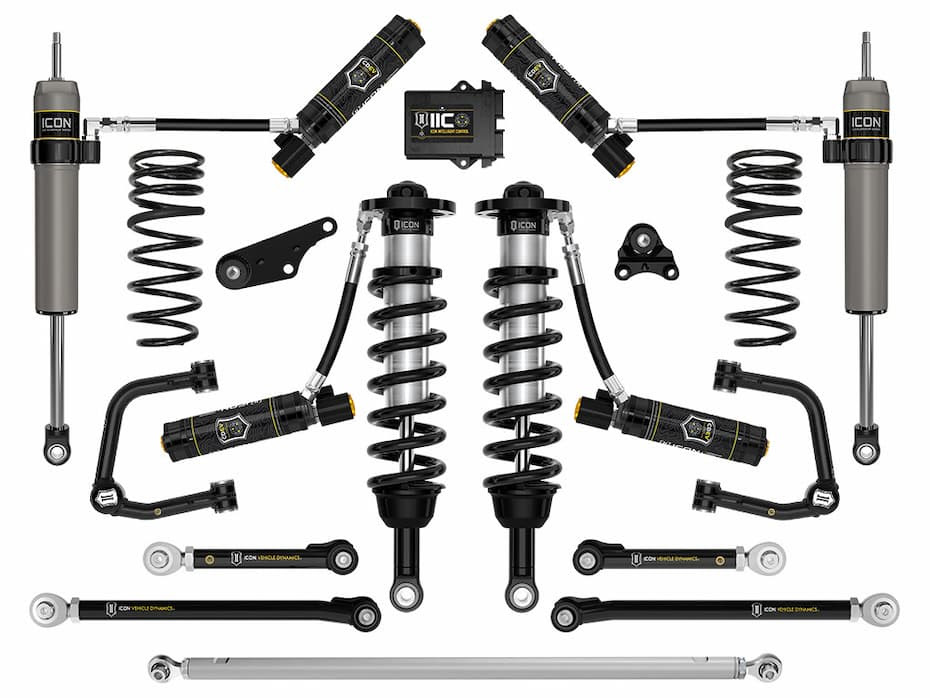

STAGE 14 - CDEV
ICON's top-of-the-line complete suspension system for the 2025 4Runner, Stage 14 includes CDEV powered by IIC, and a full suite of billet or tubular front and rear suspension links, including the addition of Rear Upper Suspension Links. Like the lowers, the upper rear links feature a multi-durometer bushing and heavy duty heim joint, with on-vehicle adjustability for the billet version.
K53414 25 4RUNNER 4WD 1.25-3" LIFT STAGE 14 SUSPENSION SYSTEM BILLET
K53414T 25 4RUNNER 4WD 1.25-3" LIFT STAGE 14 SUSPENSION SYSTEM TUBULAR
