NEW PRODUCTS: 2022-25 Toyota Tundra
CDXS Coilovers & Complete Suspension Systems
ICON Vehicle Dynamics is proud to introduce CDXS Compression Damping Dual Speed shocks, coilovers and complete suspension system for 2022 and newer Toyota Tundra. With independent compression damping adjustability for both high speed and low speed shock velocity, CDXS represents the next evolution in vehicle suspension, allowing drivers to fine-tune their vehicle's performance, optimizing both normal driving conditions and more aggressive scenarios.
With CDXS, ICON Vehicle Dynamics delivers a comprehensive solution for all driving styles and terrains. With the all-new CDXS system from ICON Vehicle Dynamics, we've taken the low-speed knob found in our proven CDCV system and refined it with finer adjustment increments in the low-speed range of the shock. We then added a high-speed knob to adjust the upper limit of force the shock can generate, allowing drivers to fully tune the shock's compression damping performance over a wide range of driving scenarios.
2.5 VS CDXS COMPONENTS & SYSTEMS
Keep scrolling to see each of the new CDXS equipped Coilovers, Shocks and Complete Suspension System Stages for 22-up Toyota Tundra.
| FRONT 2.5 VS COILOVERS | REAR 2.5 VS SHOCKS |
 |
 |
|

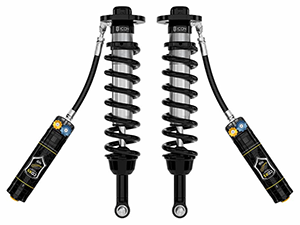

58770X 22-25 TUNDRA/23-25 SEQUOIA 2.5 VS RR CDXS COILOVER KIT 58771X 22-24 TUNDRA 2.5 VS RR CDXS 6" COILOVER KIT |

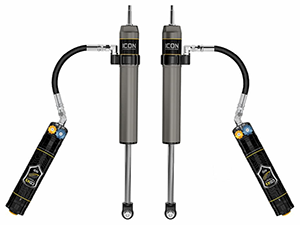

57840XP 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 2.5 VS CDXS RR PAIR 57841XP 22-24 TUNDRA 3.5" REAR 2.5 VS CDXS RR PAIR |
STAGE 9 CDXS SUSPENSION SYSTEMS
Stage 9 is our basic CDXS Suspension System for 2022-25 Toyota Tundra. It yields 2 to 3.5" of front suspension lift and includes 2.5 VS front coilovers and rear shocks with CDXS dual speed damping technology, a Sway Bar Drop Kit and either billet aluminum or tubular steel Upper Control Arms with ICON's propritary Delta Joint Pro. Stage 9 is also available in 3-4.5" lift variants which also include ICON's Dual Rate Rear Coil Spring kit.
K53199TD 22-25 TUNDRA 2-3.5" STAGE 9 SUSPENSION SYSTEM TUBULAR CDXS
K53199D 22-25 TUNDRA 1.25-3.5" STAGE 9 SUSPENSION SYSTEM BILLET CDXS
K53239D 23-25 SEQUOIA 3-4.5" STAGE 9 SUSPENSION SYSTEM BILLET CDXS
K53239DS 23-25 SEQUOIA 3-4.5" STAGE 9 SUSPENSION SYSTEM BILLET CDXS (TRD)
K53239TD 23-25 SEQUOIA 3-4.5" STAGE 9 SUSPENSION SYSTEM TUBULAR CDXS
K53239TDS 23-25 SEQUOIA 3-4.5" STAGE 9 SUSPENSION SYSTEM TUBULAR CDXS (TRD)
STAGE 10 CDXS SUSPENSION SYSTEMS
Stage 10 is also available in both 2 to 3.5" and 3 to 4.5" lift heights with CDXS equipped 2.5 VS front coilovers and rear shocks. In addition to everything included in Stage 9, Stage 10 adds billet or tubular upper and lower rear suspension links and ICON's billet adjustable rear track bar to fully dial in rear suspension geometry for optimal performance. 3-4.5" systems also include ICON's Triple Rate Rear Coil Springs and Billet Adjustable Rear Track Bar.

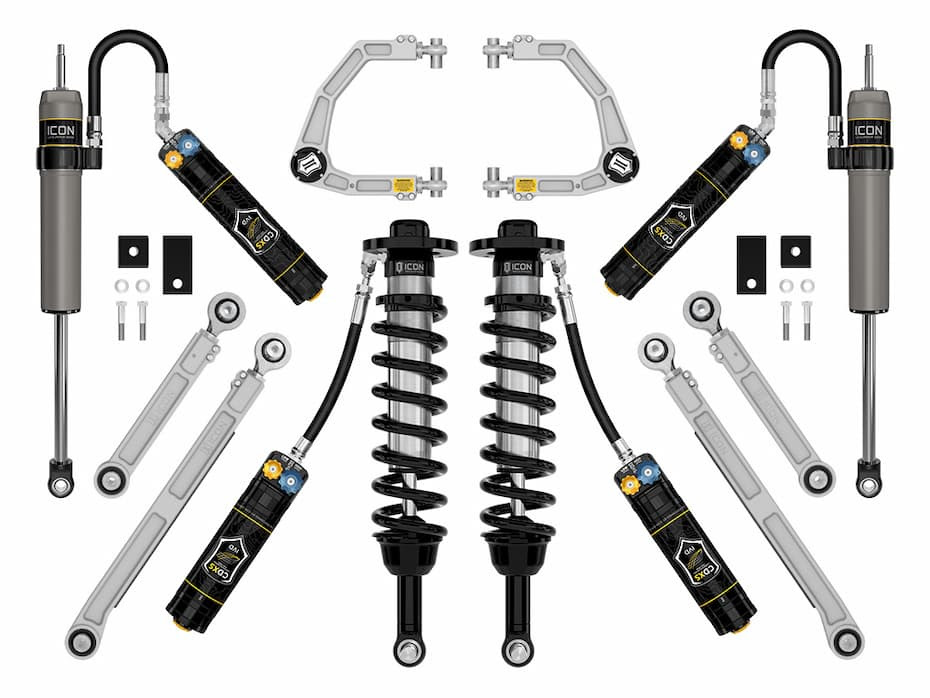

K53200TD 22-25 TUNDRA 2-3.5" STAGE 10 SUSPENSION SYSTEM TUBULAR CDXS
K53200D 22-25 TUNDRA 1.25-3.5" STAGE 10 SUSPENSION SYSTEM BILLET CDXS
K53240D 23-25 SEQUOIA 3-4.5" STAGE 10 SUSPENSION SYSTEM BILLET CDXS
K53240DS 23-25 SEQUOIA 3-4.5" STAGE 10 SUSPENSION SYSTEM BILLET CDXS (TRD)
K53240TD 23-25 SEQUOIA 3-4.5" STAGE 10 SUSPENSION SYSTEM TUBULAR CDXS
K53240TDS 23-25 SEQUOIA 3-4.5" STAGE 10 SUSPENSION SYSTEM TUBULAR CDXS (TRD)
STAGE 11 CDXS SUSPENSION SYSTEMS
Stage 11 builds on the previous stage by including ICON's Triple Rate Rear Coil Springs and Billet Rear Adjustable Track Bar. Kits come with either 0.5" or 1.25" rear coil springs to fine tune lift height for your optimum wheel and tire combination.

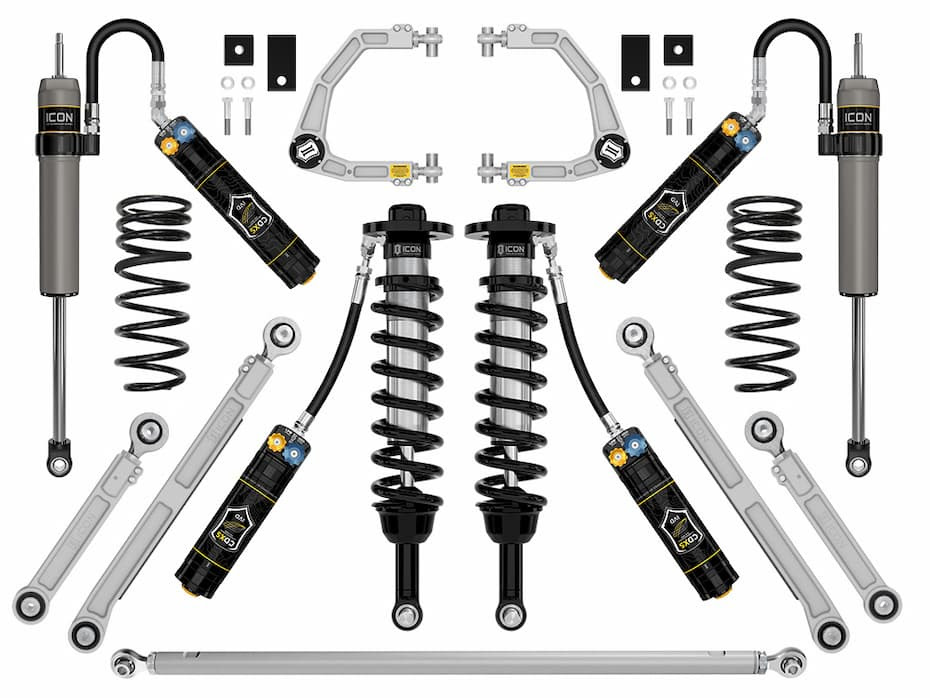

K53201TD 22-25 TUNDRA 2-3.5" STAGE 11 SUSPENSION SYSTEM TUBULAR CDXS
K53201TDS 22-25 TUNDRA 2-3.5" STAGE 11 SUSPENSION SYSTEM TUBULAR CDXS (TRD)
K53201D 22-25 TUNDRA 1.25-3.5" STAGE 11 SUSPENSION SYSTEM BILLET CDXS
K53201DS 22-25 TUNDRA 1.25-3.5" STAGE 11 SUSPENSION SYSTEM BILLET CDXS (TRD)
6" 2.5 VS CDXS SUSPENSION SYSTEMS
Extra-Tall suspension systems are made possible for 2022-24 Toyota Tacoma with ICON's proprietary ductile iron steering knuckles and fabricated drop crossmembers for the front, along with sway bar and suspension link drop brackets for the rear. These systems feature the performance and tunability of ICON's 2.5 VS Coilovers and Shocks with CDXS technology.

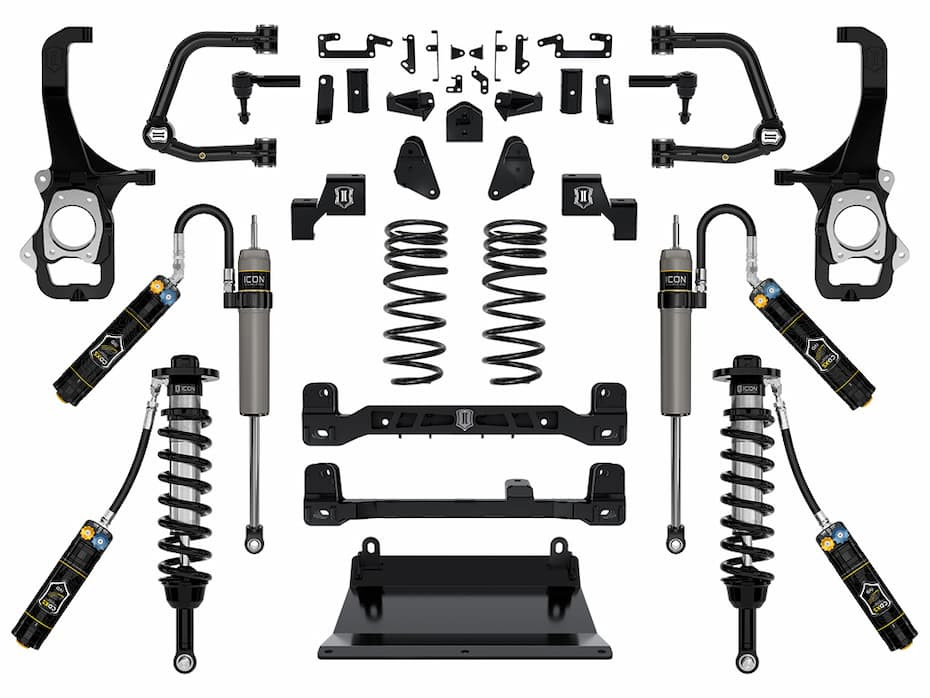

K53276TD 22-24 TOYOTA TUNDRA 6" STAGE 6 SUSPENSION SYSTEM TUBULAR CDXS
K53276D 22-24 TOYOTA TUNDRA 6" STAGE 6 SUSPENSION SYSTEM BILLET CDXS
6" 2.5 VS STAGE 7 CDXS SUSPENSION SYSTEMS
6" Stage 7 adds Billet or Tubular Rear Suspension Links as well as ICON's Billet Adjustable Rear Track Bar to fine tune rear suspension geometry and alignment.

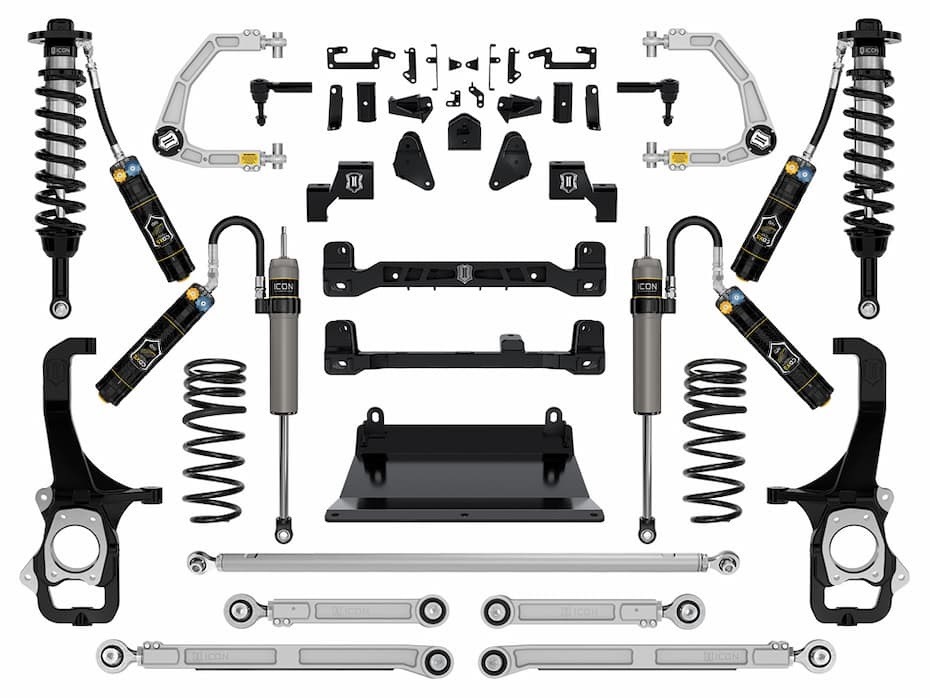

K53277TD 22-24 TOYOTA TUNDRA 6" STAGE 7 SUSPENSION SYSTEM TUBULAR CDXS
K53277D 22-24 TOYOTA TUNDRA 6" STAGE 7 SUSPENSION SYSTEM BILLET CDXS
3.0 VS CDXS COMPONENTS & SYSTEMS
For those looking for optimum suspension performance, engineered to handle speed and terrain over the long haul, ICON's 3.0 Vehicle Series shocks and coilovers feature huge 3" diameter shock bodies for increased fluid volume. This yields a much larger heat sink with increased surface area for better heat dissipation, keeping your shocks performing their best through prolonged use over rough terrain. 3.0 VS paired with CDXS provides the ultimate in high performance, manual-adjustable suspension technology.
| FRONT 3.0 VS COILOVERS | REAR 3.0 VS SHOCKS |
 |
 |

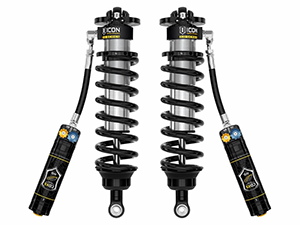

| 58775X 22-25 TUNDRA/23-25 SEQUOIA 3.0 VS RR CDXS COILOVER KIT |

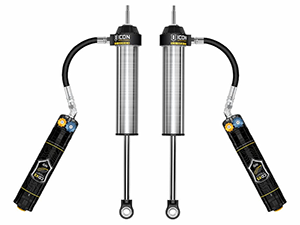

57845XP 22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 3.0 VS RR CDXS PAIR |
3.0 STAGE 1 CDXS SUSPENSION SYSTEMS
3.0 Stage 1 includes our massive 3.0 Vehicle Series CDXS-enhanced front coilovers for increased fluid volume and surface area, yielding optimal performance for prolonged periods of rough terrain. Travel and articulation are maximized with ICON Delta Joint Pro equipped front UCAs as well as upper and lower rear links in either billet aluminum or tubular construction. Stage 1 includes our proven 2.5 VS CDXS-equipped rear shocks with internal bump zone. Sway bar drop brackets are included to optimize fitment.

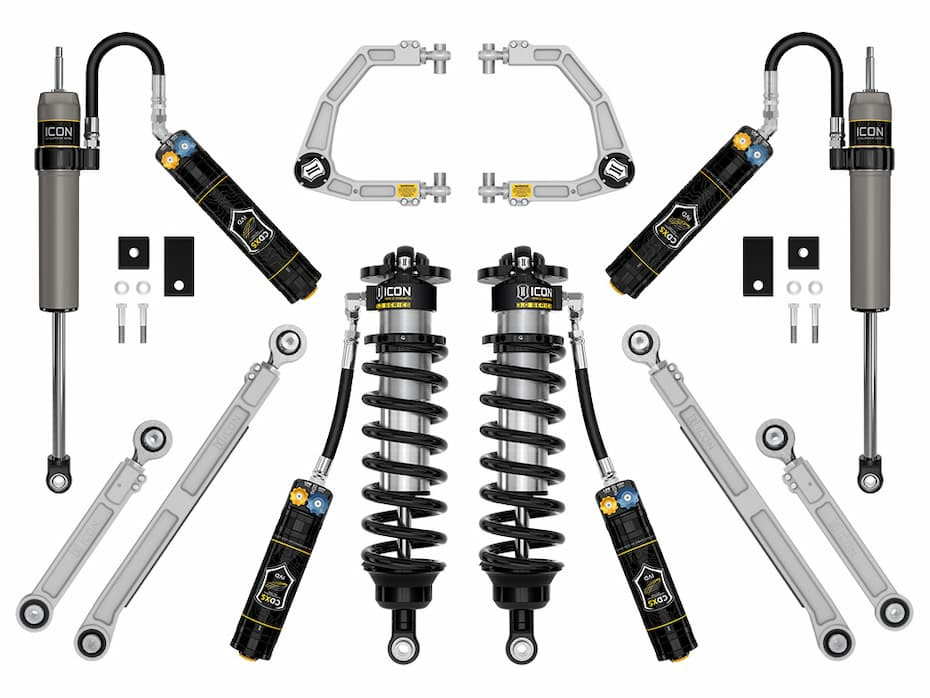

K53211TD 22-25 TUNDRA 2-3.25" STAGE 1 3.0 SUSPENSION SYSTEM TUBULAR CDXS
K53211D 22-25 TUNDRA 1.25-3.25" STAGE 1 3.0 SUSPENSION SYSTEM BILLET CDXS
K53251D 23-25 SEQUOIA 3-4.25" STAGE 1 3.0 SUSPENSION SYSTEM BILLET CDXS
K53251DS 23-25 SEQUOIA 3-4.25" STAGE 1 3.0 SUSPENSION SYSTEM BILLET CDXS (TRD)
K53251TD 23-25 SEQUOIA 3-4.25" STAGE 1 3.0 SUSPENSION SYSTEM TUBULAR CDXS
K53251TDS 23-25 SEQUOIA 3-4.25" STAGE 1 3.0 SUSPENSION SYSTEM TUBULAR CDXS (TRD)
3.0 STAGE 2 CDXS SUSPENSION SYSTEMS
Stage 2 builds on the previous stage by including massive 3.0 Vehicle Series rear shocks, making your suspension all-around built for severe use through rough terrain, over the long haul. 3.0 Stage 2 is available in 2 - 3.25" lift height or 3-4.25" lift height including our triple rate rear coil springs.

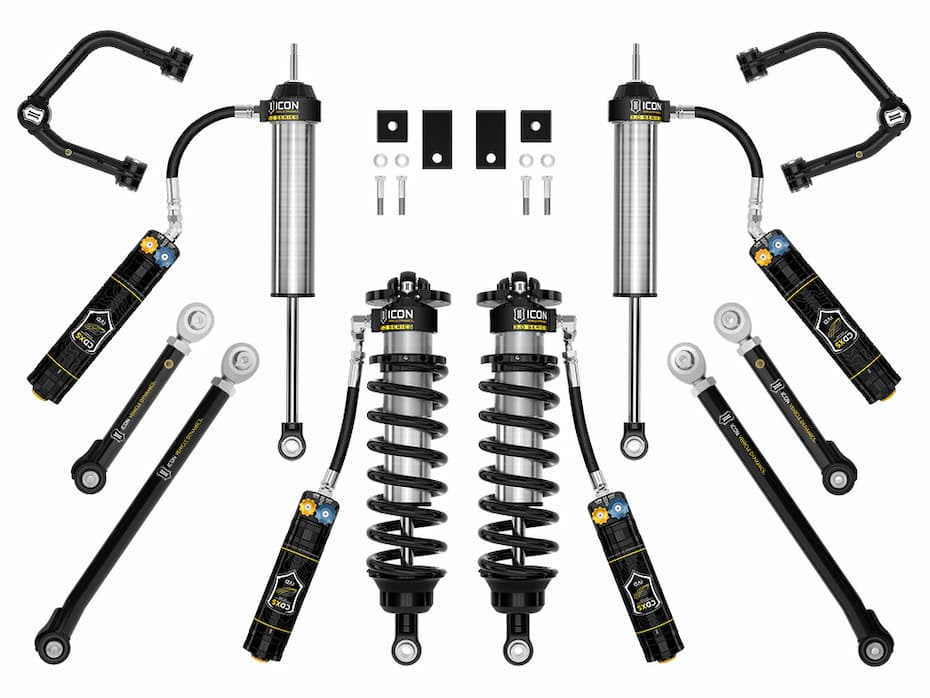

K53212TD 22-25 TUNDRA 2-3.25" STAGE 2 3.0 SUSPENSION SYSTEM TUBULAR CDXS
K53212D 22-25 TUNDRA 1.25-3.25" STAGE 2 3.0 SUSPENSION SYSTEM BILLET CDXS
K53252D 23-25 SEQUOIA 3-4.25" STAGE 2 3.0 SUSPENSION SYSTEM BILLET CDXS
K53252DS 23-25 SEQUOIA 3-4.25" STAGE 2 3.0 SUSPENSION SYSTEM BILLET CDXS (TRD)
K53252TD 23-25 SEQUOIA 3-4.25" STAGE 2 3.0 SUSPENSION SYSTEM TUBULAR CDXS
K53252TDS 23-25 SEQUOIA 3-4.25" STAGE 2 3.0 SUSPENSION SYSTEM TUBULAR CDXS (TRD)
3.0 STAGE 3 CDXS SUSPENSION SYSTEMS
The ultimate CDXS-equipped suspension system for Toyota Tundra, 3.0 Stage 3 includes everything from the previous stage and adds ICON's billet adjustable rear track bar and our Triple Rate Rear Coil Springs. Stage 3 yields 1.25 - 3.25" suspension lift in a complete suspension system that's ready for extreme off-road performance.

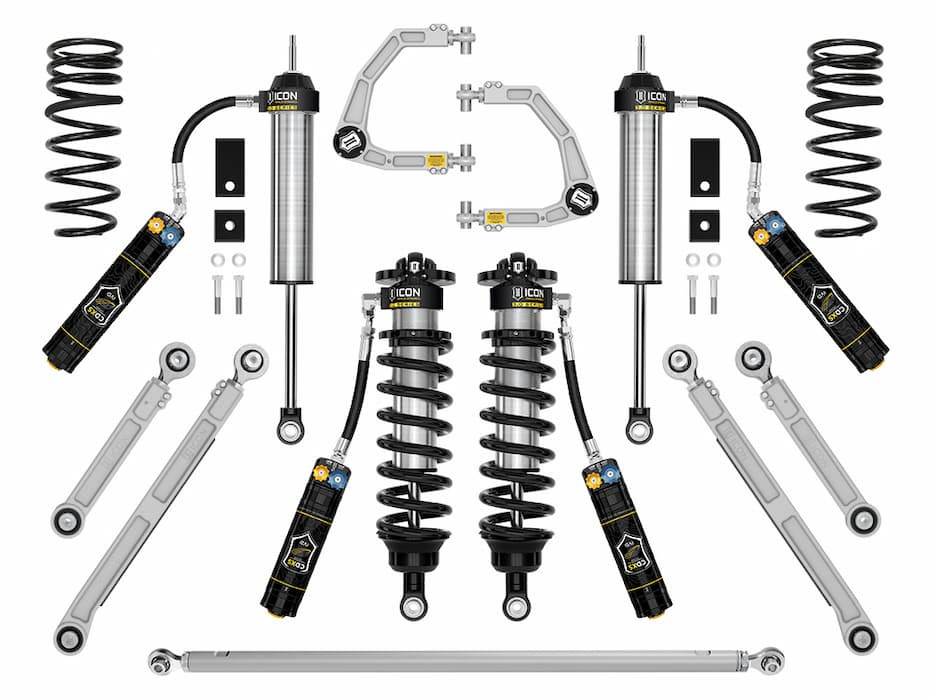

K53213TD 22-25 TUNDRA 2-3.25" STAGE 3 3.0 SUSPENSION SYSTEM TUBULAR CDXS
K53213TDS 22-25 TUNDRA 2-3.25" STAGE 3 3.0 SUSPENSION SYSTEM TUBULAR CDXS (TRD)
K53213D 22-25 TUNDRA 1.25-3.25" STAGE 3 3.0 SUSPENSION SYSTEM BILLET CDXS
K53213DS 22-25 TUNDRA 1.25-3.25" STAGE 3 3.0 SUSPENSION SYSTEM BILLET CDXS (TRD)
