ICON Vehicle Dynamics is proud to introduce heavier rate "Overland" Rear Coil Springs for the 4th Gen Toyota Tacoma. These coils are designed for those who typically carry a heavier load-out on their vehicle, whether it be camping gear, race team support equipment or tools & supplies for work. We've also configured each of our 13 Stages of Complete Suspension Systems in "Overland" versions to include these rear springs.

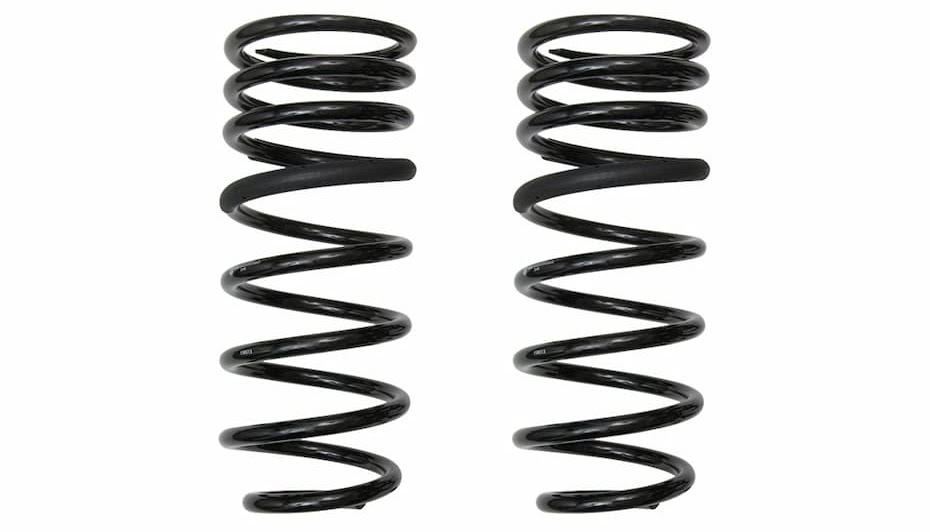

51215 24 TACOMA .5" LIFT OVERLAND REAR COIL SPRING KIT
ICON Dual Rate Overland rear coil springs for 2024 Toyota Tacoma provide a modest increase in ground clearance on heavier Tacoma builds while also greatly enhancing on- and off-road performance, especially when used with ICON shocks and suspension components. Their dual rate coil design provides a softer ride rate with a firmer overload rate that combine to deliver on-road comfort with excellent load support, bottoming resistance, and superior off-road performance. These springs are designed to net .5" of rear lift over stock with approximately 600lbs of additional weight added to the rear, for a more aggressive stance and increased fender clearance for larger wheels and tires on more outfitted vehicles. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage allow you to drive with confidence in knowing that you have the best suspension products available for the 2024 Toyota Tacoma.
KEY FEATURES:
- .5" rear lift height over stock with 600lbs of additional weight in the rear
- Dual rate rear coil springs with ICON-engineered ride and overload rates
- Significantly improves on- and off-road ride quality and performance over stock
- Dual stage powder coating for corrosion resistance
- Lifetime guarantee against sagging/breakage
OVERLAND COMPLETE SUSPENSION SYSTEMS
For your ordering convenience we've configured "Overland" versions of Stages 2 through 13 of our Performance Suspension Systems for the 4th Gen Tacoma. These Stages are identical to our standard Stages, but with these Overland Rear Coil Springs instead of the standard duty Triple-Rate Rear Coils. For information on the previously-released Gen 4 Tacoma suspension systems please see the ICON website.

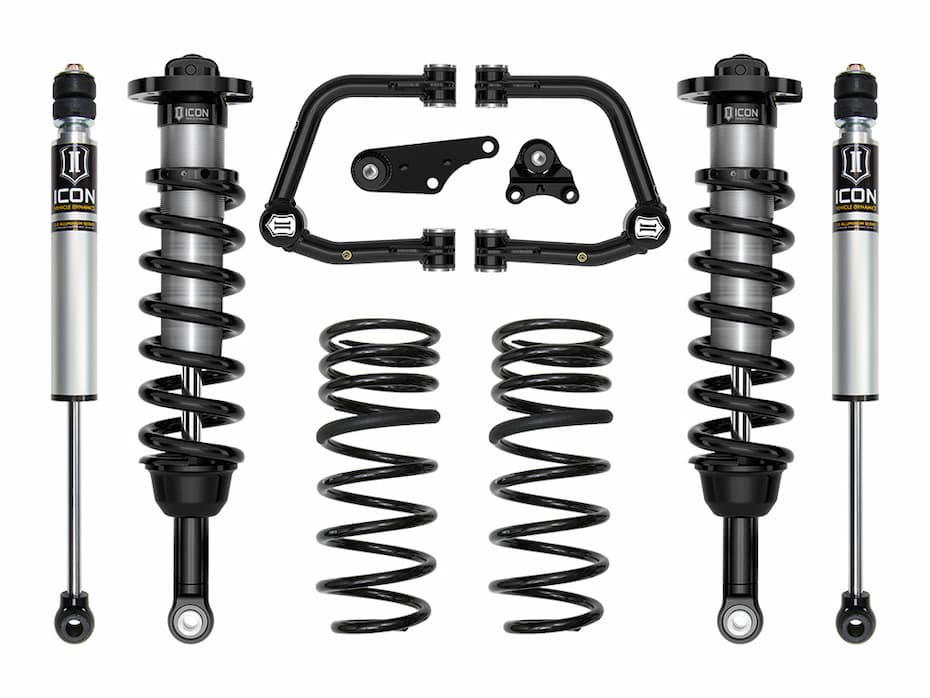

STAGE 2 OVERLAND
Stage 2 is our entry Overland system for 2024-Up Tacoma, featuring the Overland Rear Coil Spring kit along with 2.5 VS internal reservoir front coilovers, billet or tubular UCAs with Delta Joint Pro, and ICON 2.0 internal reservoir rear shocks. Diff drop is also included to optimize CV operating angle.
|
|
BILLET: K53292X |
.png) |
.png) |

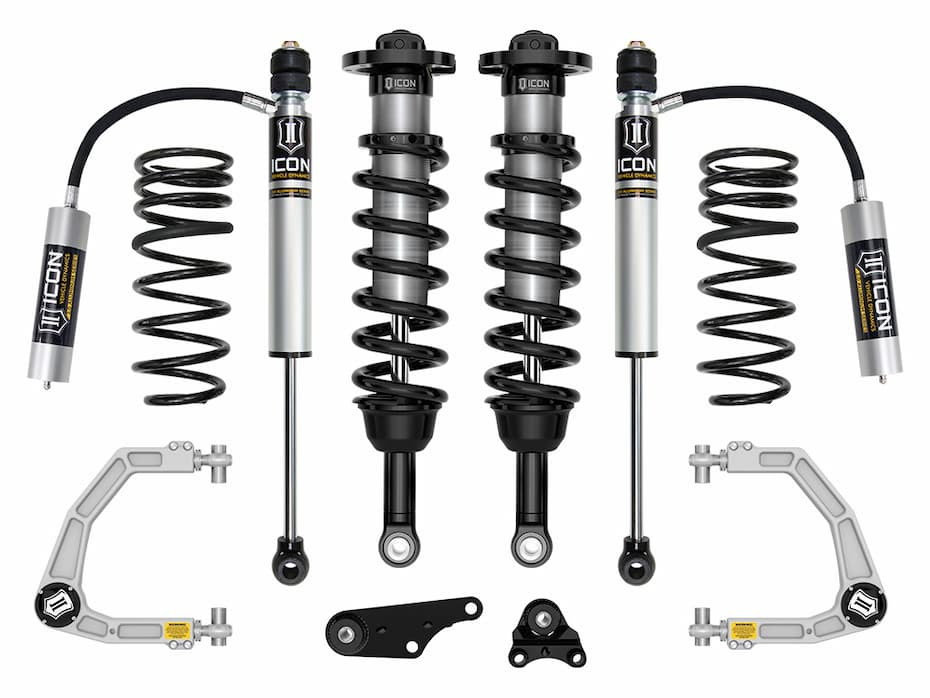

STAGE 3 OVERLAND
Stage 3 swaps out the rear IFP shocks for ICON 2.0 Remote Reservoir shocks to provide increased fluid volume for longer lasting shock performance.
TUBULAR: K53293TX 24 TACOMA 1.25-3" STAGE 3 SUSPENSION SYSTEM TUBULAR OVERLAND REAR COILS |
BILLET: K53293X |
.png) |
|
.png)

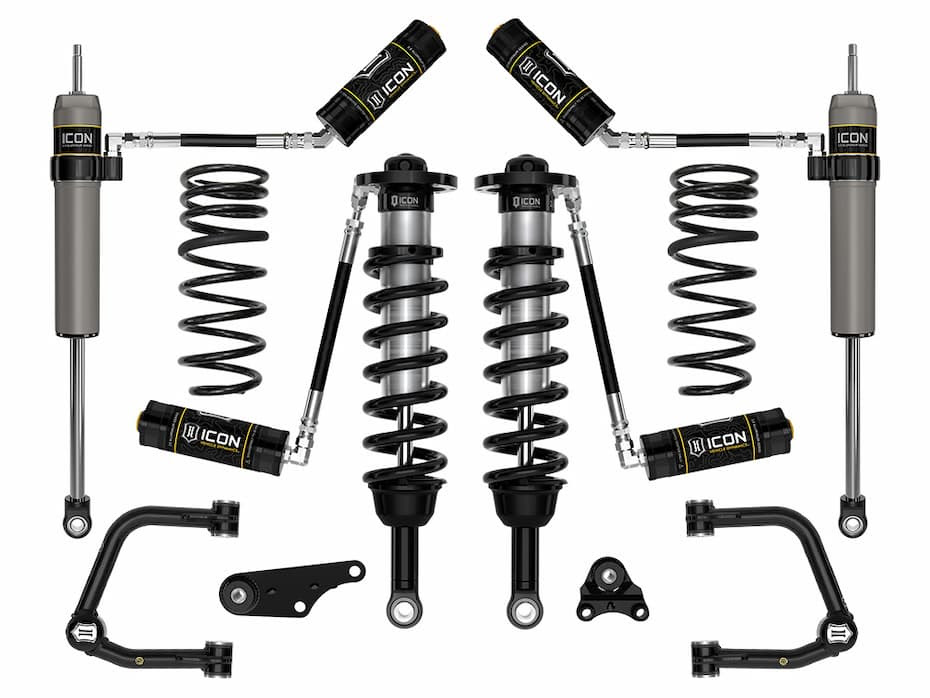

STAGE 4 OVERLAND
Stage 4 is our entry level, all 2.5 VS complete suspension system with Overland rear springs. 2.5 VS front coilovers and 2.5 VS rear shocks all feature remote reservoirs for better heat dissipation.
|
TUBULAR: K53294TX |
BILLET: K53294X 24 TACOMA 1.25-3" STAGE 4 SUSPENSION SYSTEM BILLET OVERLAND REAR COILS |
.png) |
.png) |

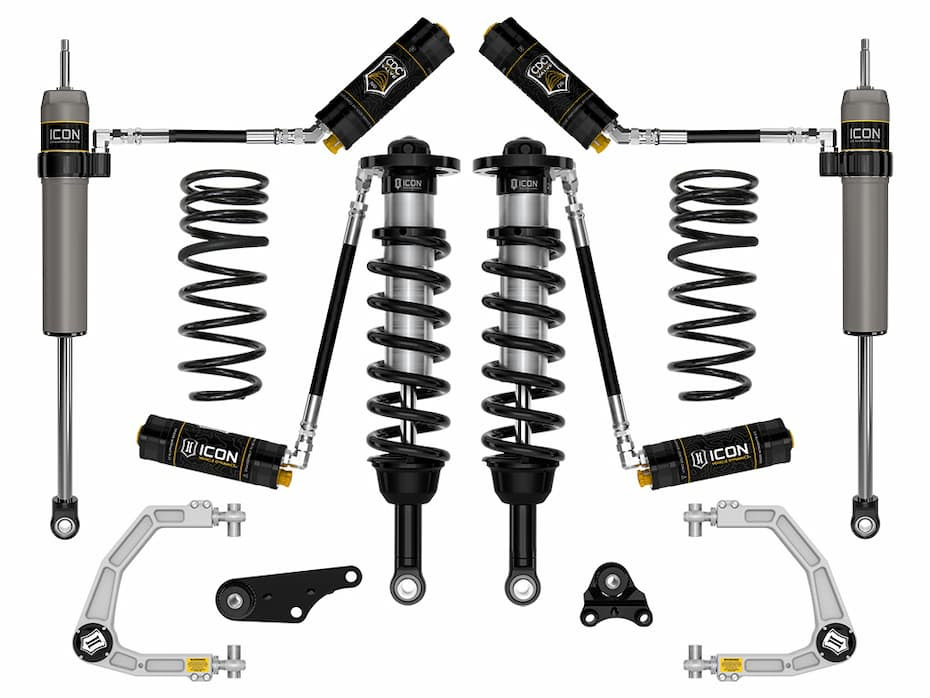

STAGE 5 OVERLAND
Stage 5 adds ICON's Compression Damping Control Valve (CDCV) on all shocks to provide easy, manual adjustment of compression damping to dial in your ride characteristics.
|
TUBULAR: K53295TX |
BILLET: K53295X 24 TACOMA 1.25-3" STAGE 5 SUSPENSION SYSTEM BILLET OVERLAND REAR COILS |
.png) |
.png) |

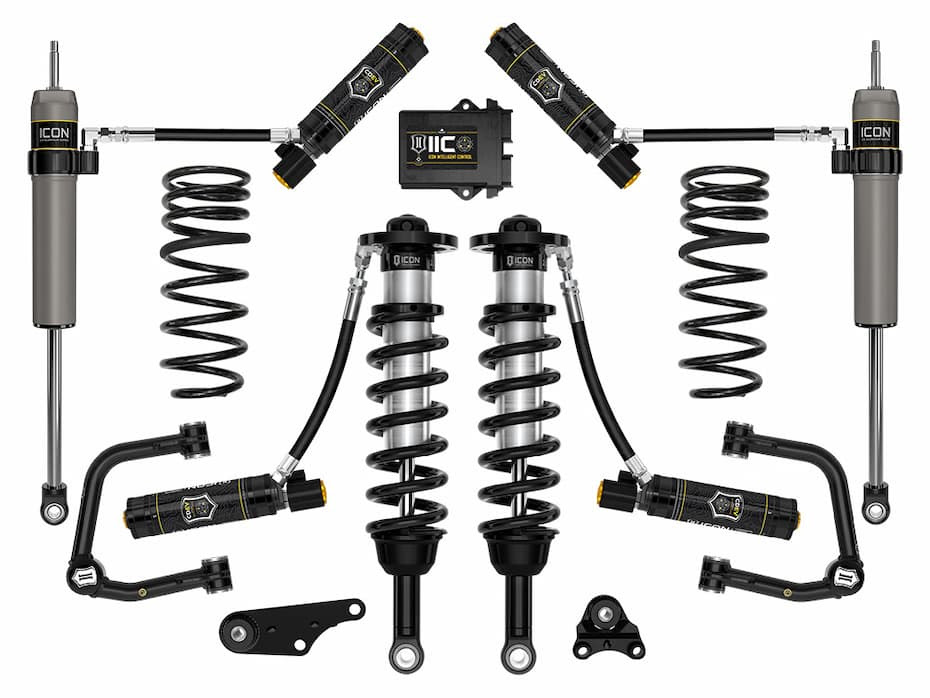

STAGE 6 OVERLAND
Stage 6 electrifies your ride with ICON's cutting edge CDEV Technology. Compression Damping Electronic Valves at each shock work with the ICON Intelligent Control (ICC) unit and an app on your phone, to wirelessly dial in your suspension performance characteristics, then let the system react and adjust, in real time, to optimize your ride for speed and terrain, on the fly.
|
TUBULAR: K53296TX |
BILLET: K53296X 24 TACOMA 1.25-3" STAGE 6 SUSPENSION SYSTEM BILLET OVERLAND REAR COILS |
.png) |
.png) |

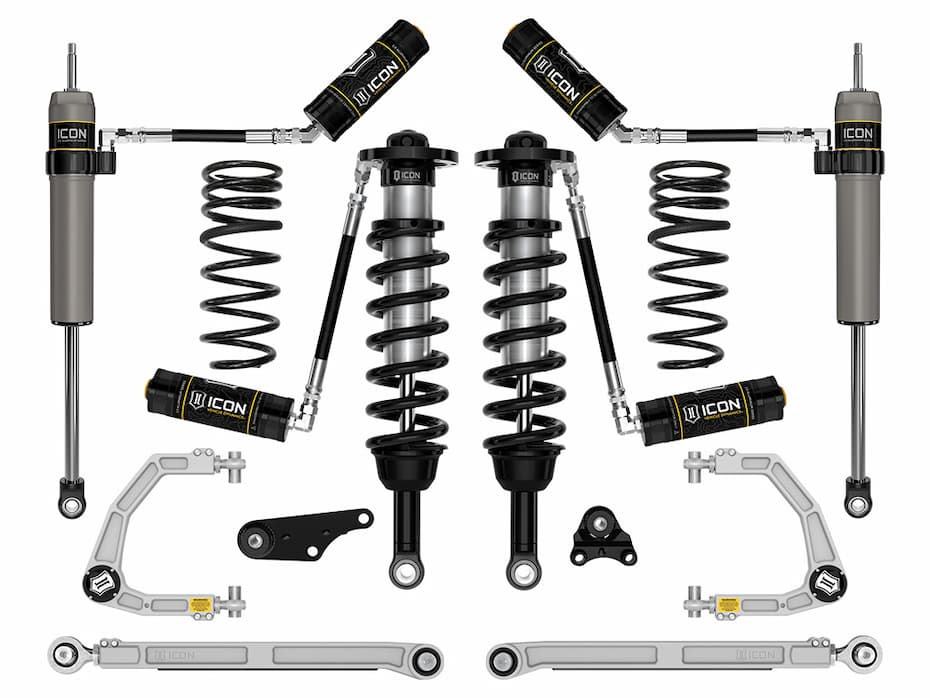

STAGE 7 OVERLAND
Stage 7 combines the proven performance of ICON 2.5 VS remote reservoir shocks with the extra performance and adjustability of tubular or billet rear lower suspension links.
|
TUBULAR: K53297TX |
BILLET: K53297X |
.png) |
.png) |

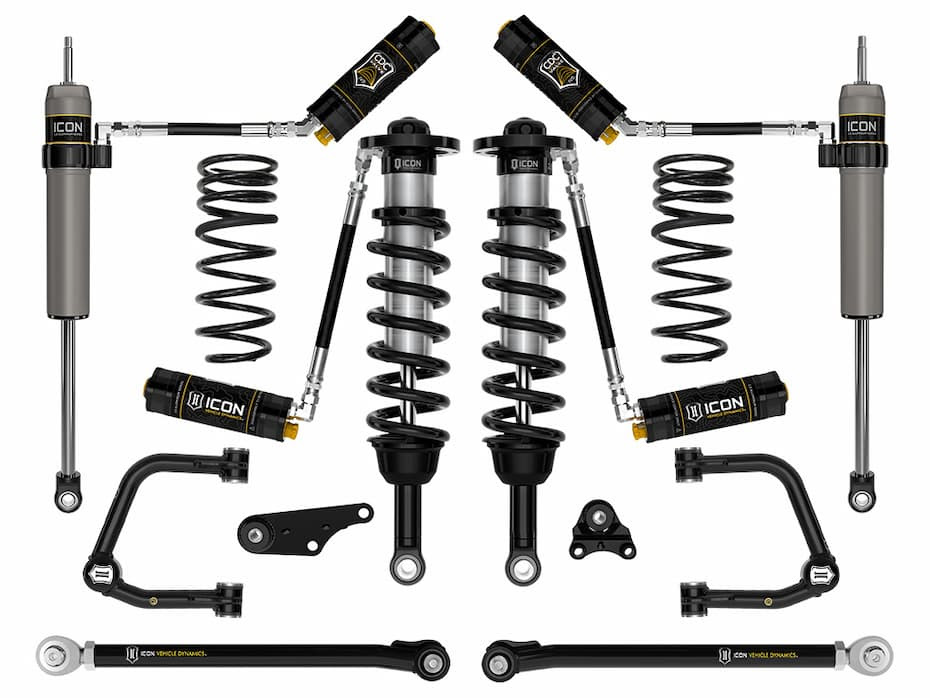

STAGE 8 OVERLAND
Stage 8 builds on the previous stage by adding the manual adjustability of ICON CDCV to the shocks and coilovers.
TUBULAR: K53298TX 24 TACOMA 1.25-3" STAGE 8 SUSPENSION SYSTEM TUBULAR OVERLAND REAR COILS |
BILLET: K53298X 24 TACOMA 1.25-3" STAGE 8 SUSPENSION SYSTEM BILLET OVERLAND REAR COILS |
.png) |
.png) |

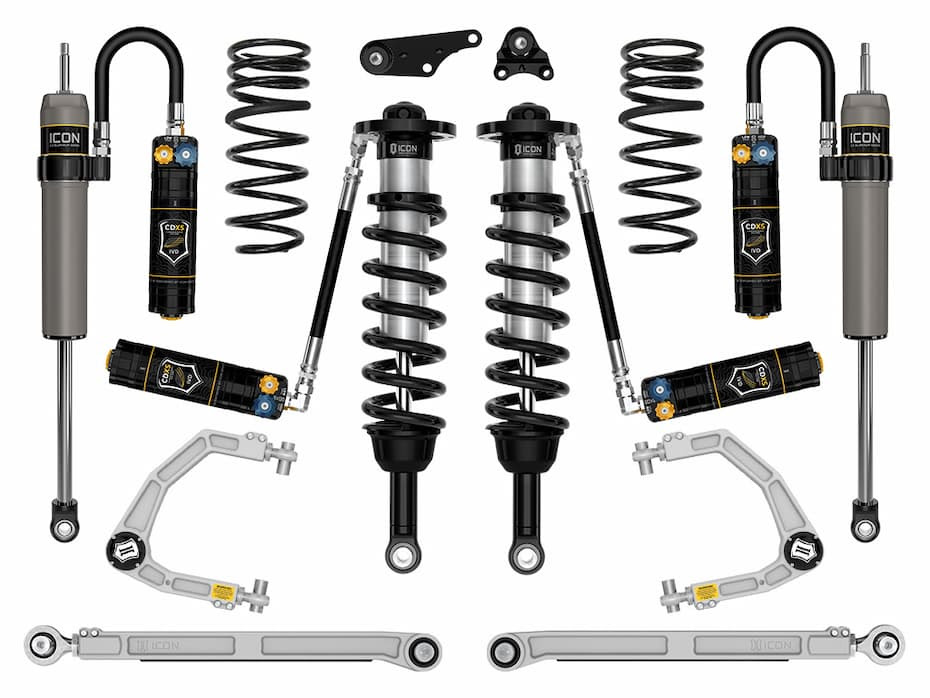

STAGE 9 OVERLAND
Stage 9 combines CDCV compression damping adjustability with the performance benefits of ICON tubular or billet rear lower supsension links.
TUBULAR: K53299X 24 TACOMA 1.25-3" STAGE 9 SUSPENSION SYSTEM BILLET OVERLAND REAR COILS |
BILLET: K53299TX |
.png) |
.png) |

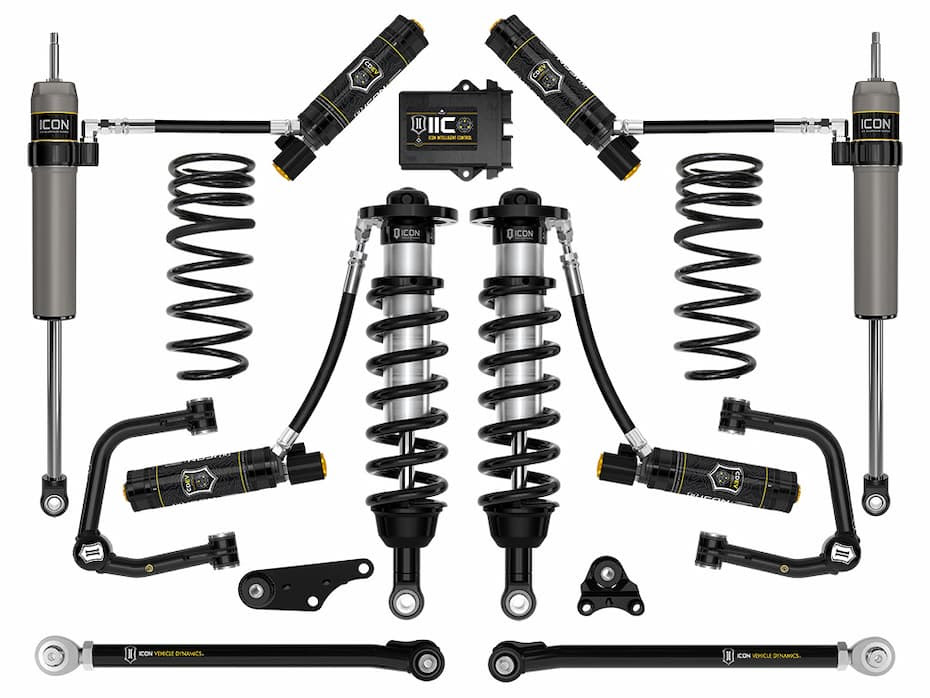

STAGE 10 OVERLAND
Stage 10 combines CDEV electronic suspension control with the performance benefits of ICON tubular or billet rear lower supsension links.
|
TUBULAR: K53300TX |
BILLET: K53300X 24 TACOMA 1.25-3" STAGE 10 SUSPENSION SYSTEM BILLET OVERLAND REAR COILS |
.png) |
.png) |

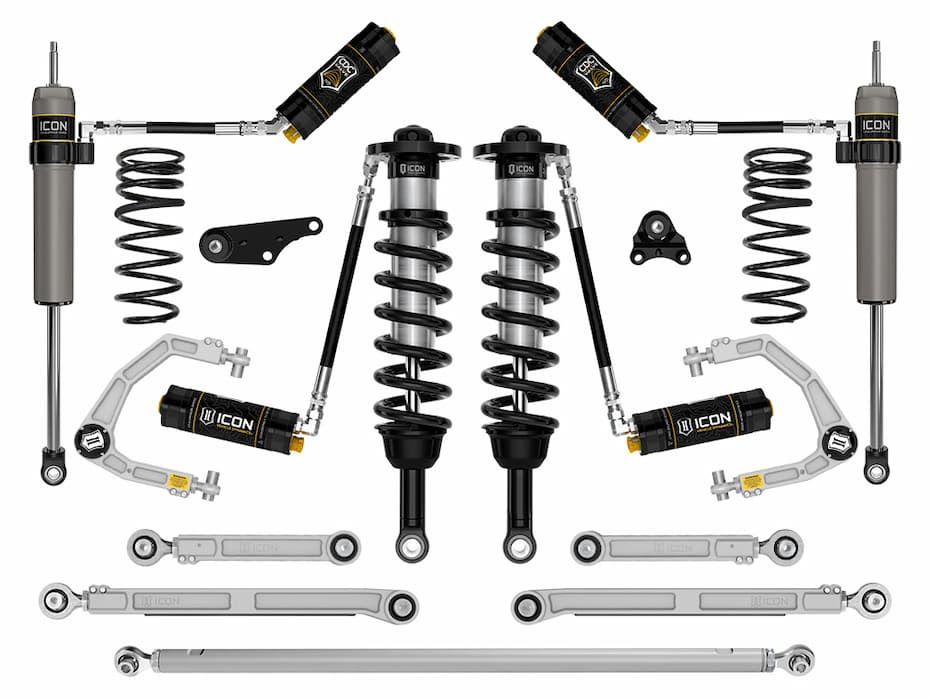

STAGE 11 OVERLAND
Stage 11 is our top of the line CDCV-equipped complete suspension system, including both upper and lower rear suspension links as well as ICON's billet adjustable rear track bar.
| TUBULAR: K53301TX 24 TACOMA 1.25-3" STAGE 11 SUSPENSION SYSTEM TUBULAR OVERLAND REAR COILS |
BILLET: K53301X |
.png) |
.png) |

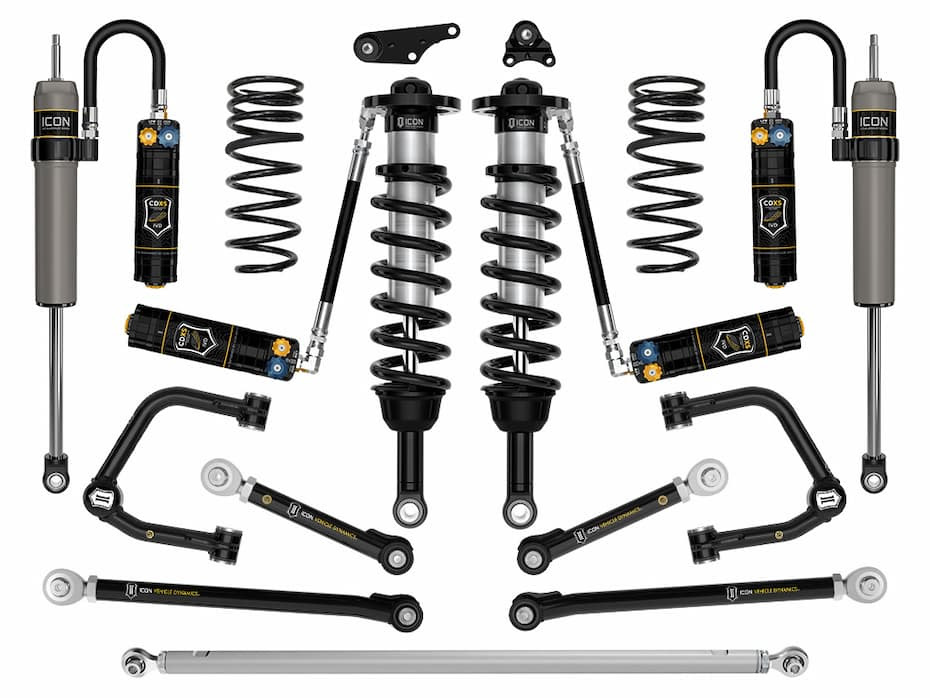

STAGE 12 OVERLAND
Get ultimate in manual suspension adjustability with ICON's CDXS system, which provides dual-speed compression damping adjustability.
TUBULAR: K53302TX 24 TACOMA 1.25-3" STAGE 12 SUSPENSION SYSTEM TUBULAR OVERLAND REAR COILS |
BILLET: K53302X |
.png) |
.png) |

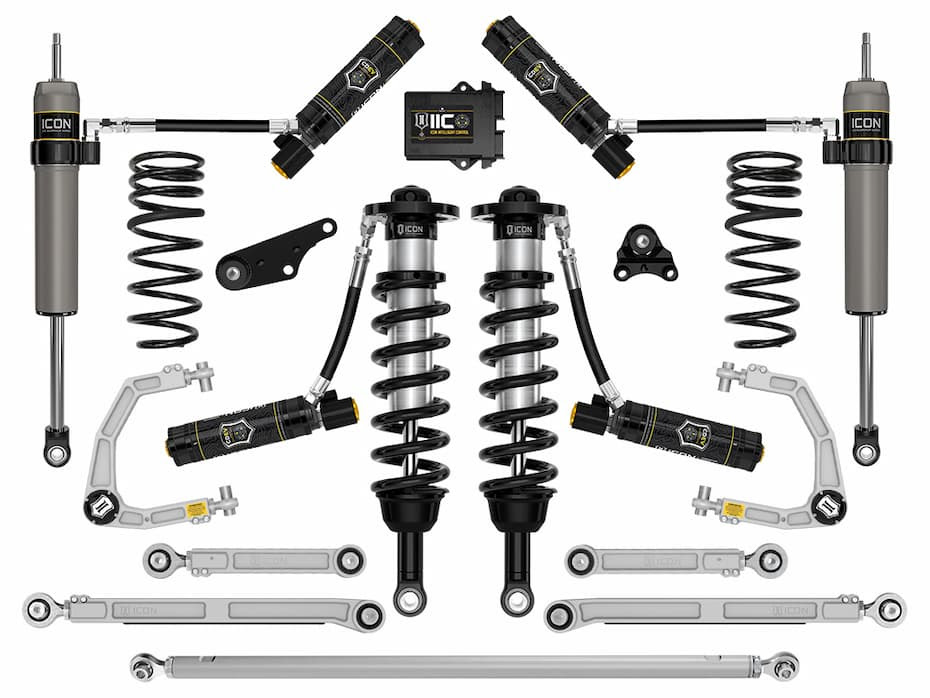

STAGE 13 OVERLAND
ICON's top of the line complete suspension system for Tacoma, Stage 13 features CDEV for on-the-fly, electronic control of ride performance, along with a full slate of billet or tubular front and rear suspension links and adjustable rear track bar.
|
TUBULAR: K53303TX |
BILLET: K53303X 24 TACOMA 1.25-3" STAGE 13 SUSPENSION SYSTEM BILLET OVERLAND REAR COILS |
.png) |
.png) |
